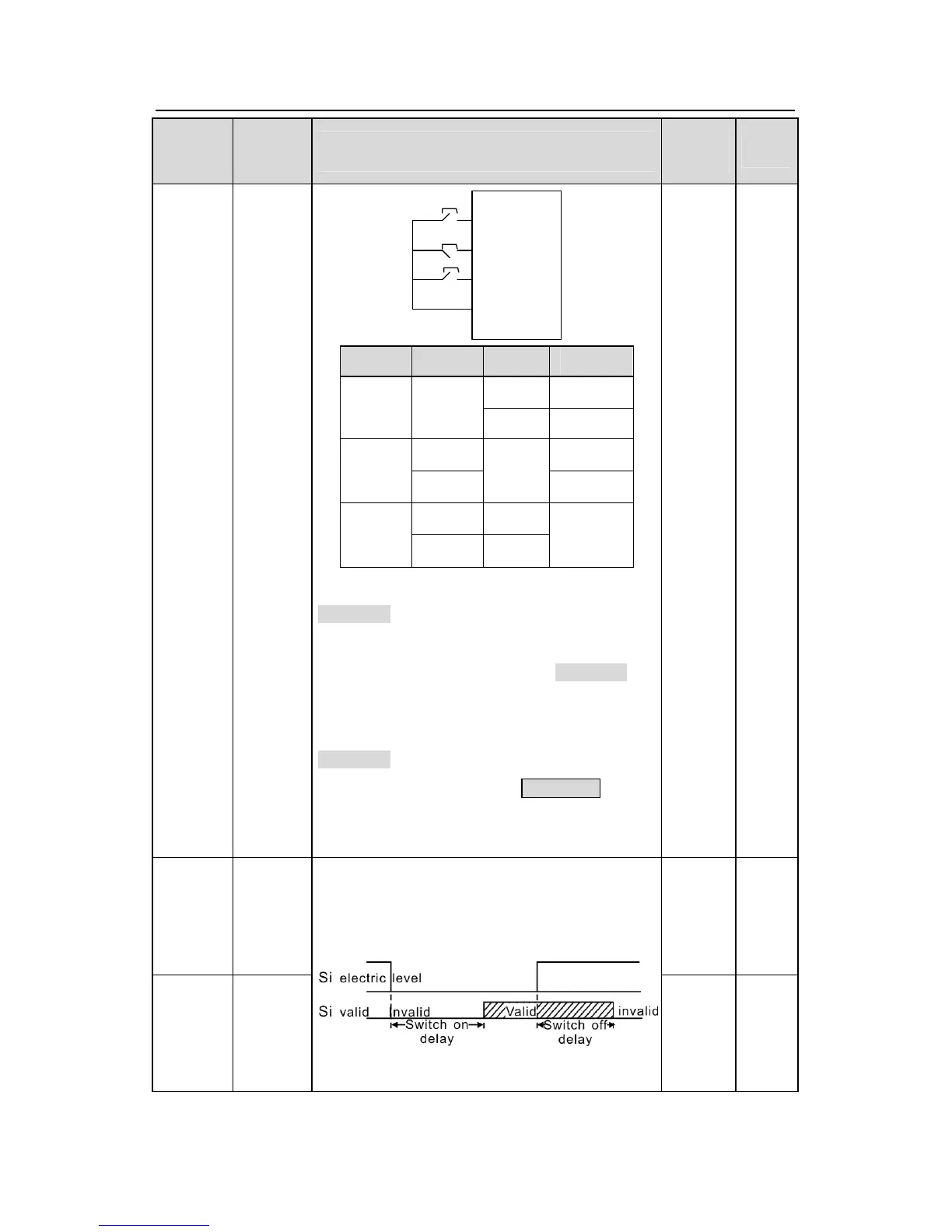

Goodrive200 inverters Function codes
78
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
COM
SB2
SB1
FWD
REV
SIn
SB3
Sln FWD REV Direction
ON
OFF→
ON
ON Forward
OFF Reverse
ON
ON
OFF→
ON
Forward
OFF Reverse
ON→
OFF
Decelerat
e to stop
Note: for the 2-wire running mode, when
FWD/REV terminal is valid, the inverter stop
because of the stopping command from other
sources, even the control terminal FWD/REV
keeps valid; the inverter won’t work when the
stopping command is canceled. Only when
FWD/REV is relaunched, the inverter can start
again. For example, the valid STOP/RST stop
when PLC signal cycles stop, fixed-length stop
and terminal control (see P07.04).
P05.14
S1 terminal
switching-o
n delay
time
The function code defines the corresponding
delay time of electrical level of the programmable
terminals from switching on to switching off.
Setting range:0.000~50.000s
0.000s
○
P05.15
S1
terminal
switching-o
ff delay
0.000s
○
