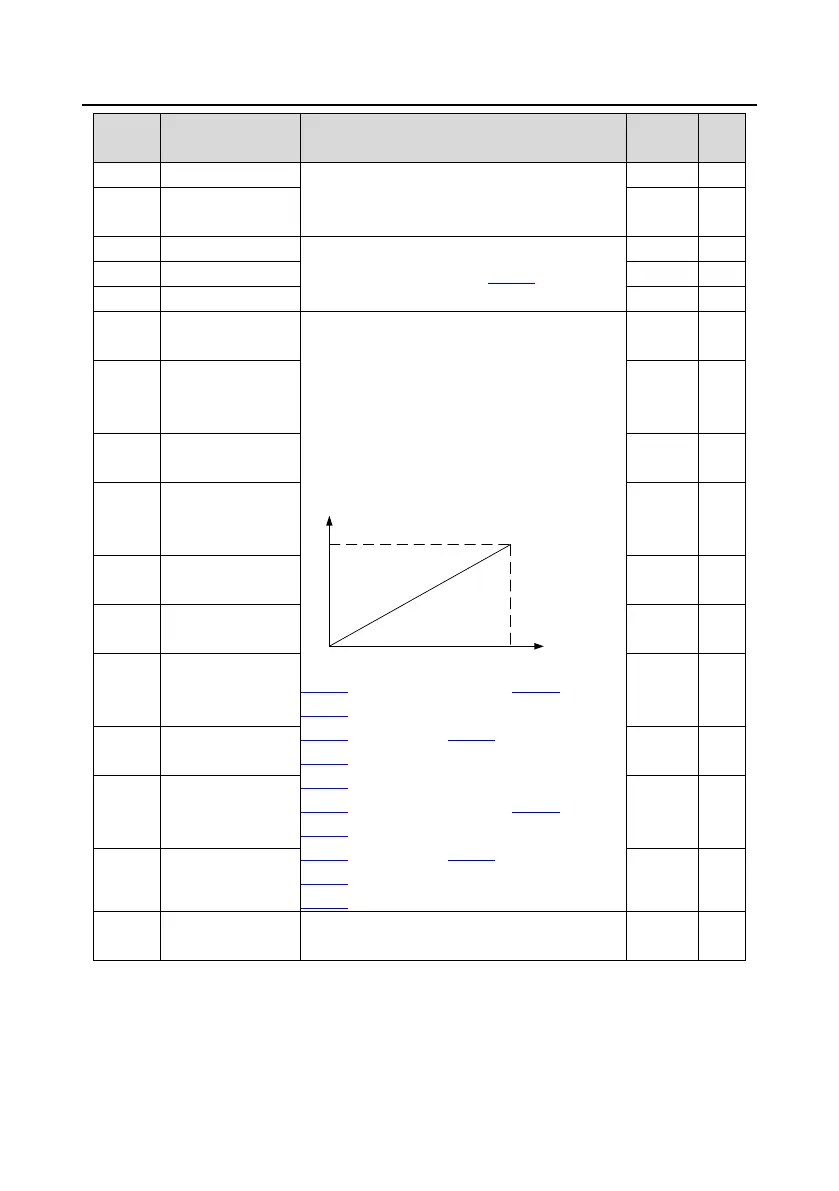

INVT GD270-030-4 User Manual

Goodrive270 series VFD for fan and pump Function parameter list
-219-
Function
code
Name Description Default
Modify
delay
P26.34
RO10 switch-off
delay
0.000s ƻ
P26.35
AO2 output
Same as the description for
P06.14
0
ƻ
P26.36
AO3 output
0
ƻ
P26.37
Reserved
P26.38
AO2 output lower
limit
Used to define the relationship between the
output value and analog output. When the output
value exceeds the allowed range, the output
uses the lower limit or upper limit.
When the analog output is current output, 1mA
equals 0.5V.
In different cases, the corresponding analog
output of 100% of the output value
is different.
10V (20mA)
0.0% 100.0%
AO
P26.38
setting range: -300.0%±P26.40
P26.39
setting range: 0.00V±10.00V
P26.40
setting range: P26.38±100.0%
P26.41
setting range: 0.00V±10.00V
P26.42
setting range: 0.000s±10.000s
P26.43
setting range: -300.0%±P26.45
P26.44
setting range: 0.00V±10.00V
P26.45
setting range: P26.43±300.0%
P26.46
setting range: 0.00V±10.00V
P26.47 setting range: 0.000s±10.000s
0.0% ƻ
P26.39
AO2 output
corresponding to
lower limit
0.00V ƻ
P26.40
AO2 output upper
limit
100.0% ƻ
P26.41
AO2 output
corresponding to
upper limit
10.00V ƻ
P26.42
AO2 output filter
time
0.000s ƻ
P26.43
AO3 output lower
limit
0.0% ƻ
P26.44
AO3 output
corresponding to
lower limit
0.00V ƻ
P26.45
AO3 output upper
limit
100.0% ƻ
P26.46
AO3 output
corresponding to
upper limit
10.00V ƻ
P26.47
AO3 output filter
time
0.000s ƻ
P26.48±
P26.52
Reserved
