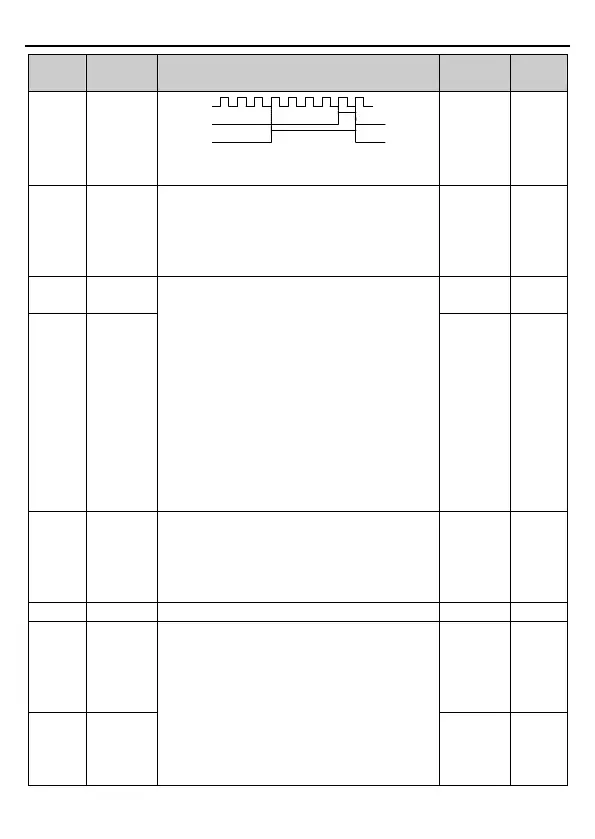

INVT Goodrive30 VFD Series User Manual

Goodrive30 Series VFD Function parameter list
-85-
Function
code
Name
Description
Default
Modify
Y1
RO1, RO2
S terminal
/HDI
Reach the set
counting value
Reach the designated
counting value
Setting range of P08.25: P08.26–65535
Setting range of P08.26: 0–P08.25
P08.27
Set running
time
Pre-set running time of the VFD. When the
accumulative running time achieves the set time,
the multi-function digital output terminals will
output the signal of "Running time reached".
Setting range: 0–65535 min
0min
○
P08.28
Auto fault
reset count
Auto fault reset count: When the VFD uses
automatic fault reset, it is used to set the number
of automatic fault reset times. When the number
of continuous reset times exceeds the value, the
VFD reports a fault and stops.
Auto fault reset interval: Time interval from when
a fault occurred to when automatic fault reset
takes effect.
If no fault occurred within 60s after the VFD
starts, the number of automatic fault reset times
is cleared.
Setting range of P08.28: 0–10
Setting range of P08.29: 0.1–3600.0s
0
○
P08.29
Auto fault
reset
interval
1.0s
○
P08.30
Frequency
decrease
ratio in drop
control
The output frequency of the VFD changes as the
load changes. The function code is mainly used
to balance the power when several motors drive
a same load.
Setting range: 0.00–50.00Hz
0.00Hz
○
P08.31
Reserved
P08.32
FDT1
electrical
level
detection
value
When the output frequency exceeds the
corresponding frequency of FDT electrical level,
the multifunction digital output terminal
continuously outputs the signal of "Frequency
level detection FDT". The signal is invalid only
when the output frequency decreases to a value
lower than the frequency corresponding to (FDT
electrical level—FDT lagging detection value).
The waveform diagram is as follows:
50.00Hz
○
P08.33
FDT1
lagging
detection
value
5.0%
○
