6-5. Replacement of Encoder Board/Motor Unit
When replacing the Encoder Board and Motor Unit, follow the instructions below.

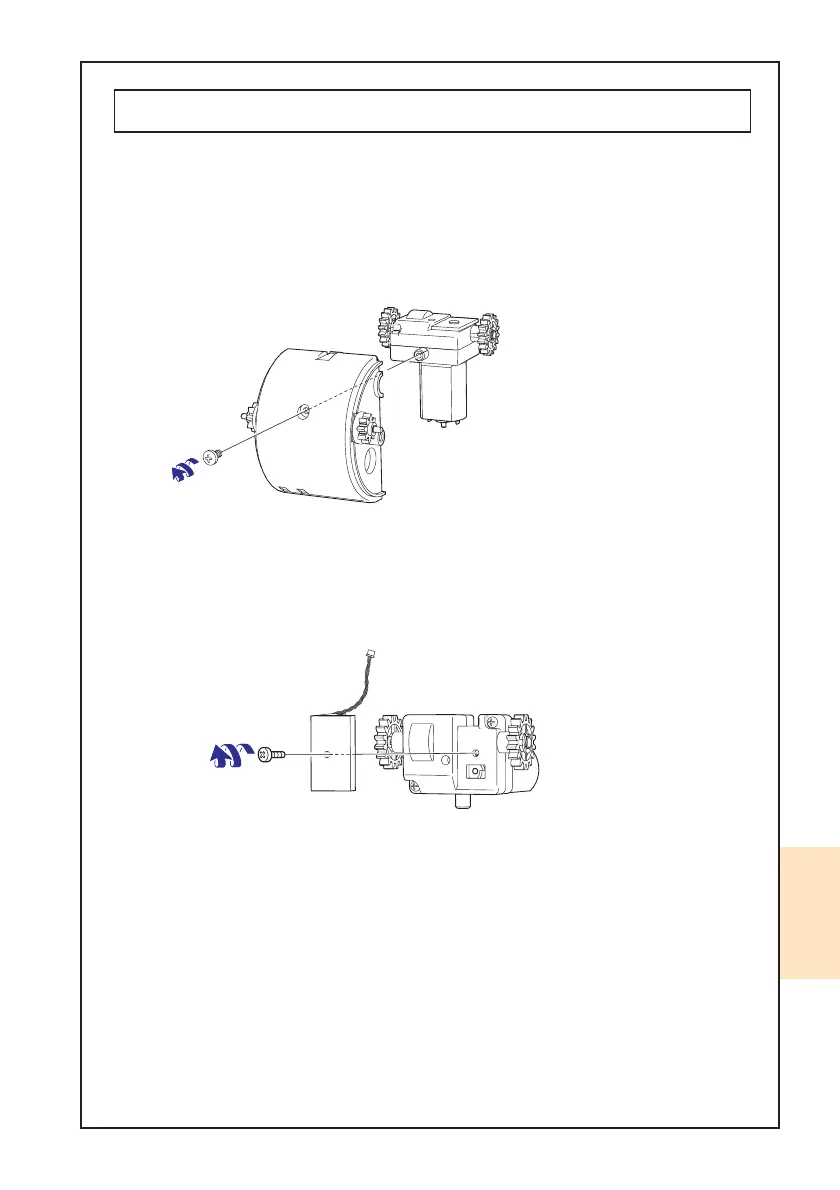

1. Take out a (1) screw from the Center Guide B (Refer replacement procedure 6. of 6-4.
Replacement of Sensor Board. Remove the motor Unit.
2.
Take out a (1) screw and a (1) Encoder Board from the Motor Unit.
