JCM TAIKO - Basic Settings 01:Parallel(ID-001) Specification; LED Pattern Setting Mode

20
87654321
ON
87654321
ON

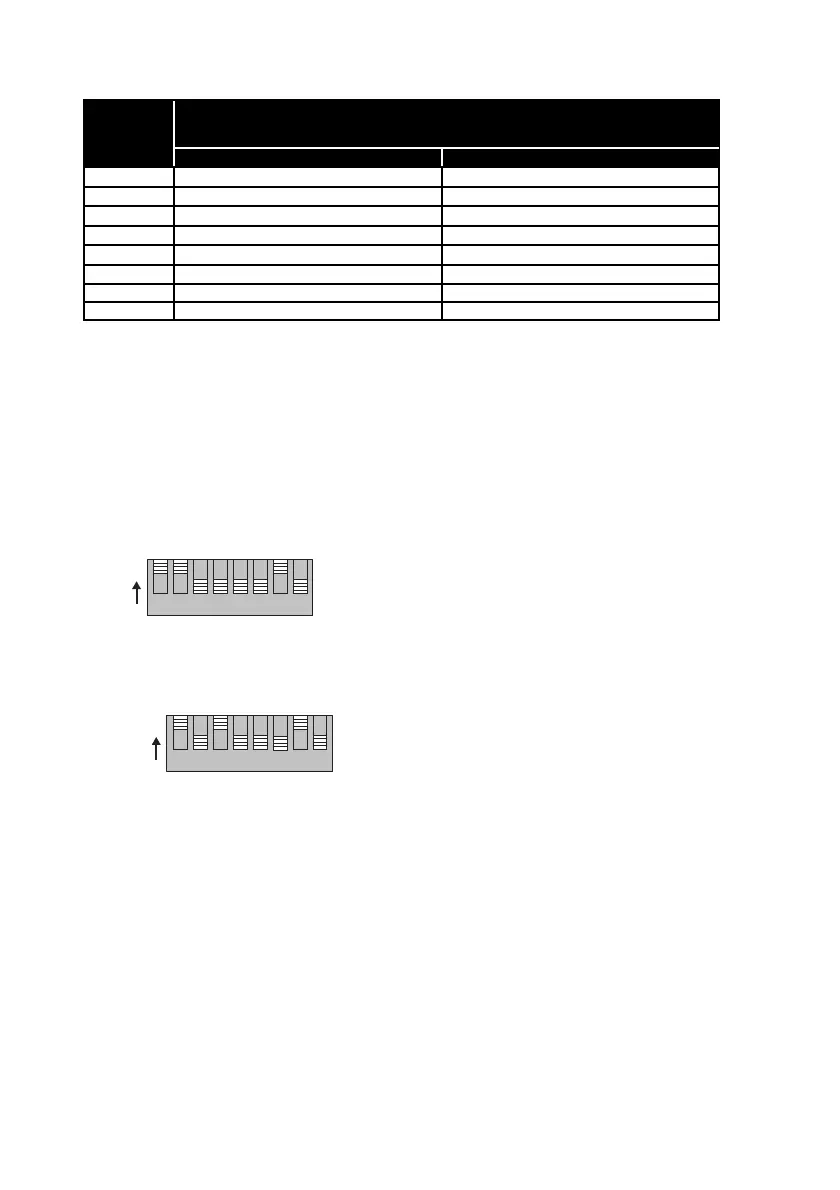

7-5-3. LED Pattern Setting Mode
The LED pattern can be changed according to your preference. Select between pattern 1 and
pattern 2. The default setting is pattern 1.


 Define Pattern 1
Set DIP switch Nos.1, 2 and 7 to ON and then turn the power to the TAIKO unit. Set DIP switch
No.1 to OFF to set the LED pattern to pattern 1.


 Define Pattern 2
Set DIP switch Nos.1, 3 and 7 to ON and then turn on the power to the TAIKO unit. Set DIP
switch No.1 to OFF to set the LED pattern to pattern 2.
7-5-2. Basic Settings 01:Parallel(ID-001) Specification
ON OFF
1 Test Mode *1 Normal Mode
2
Escrow Mode No Escrow Mode
3 Double-Scan Mode *2 Normal Mode
4 Five (5) drum cycle (fishing prevention) *3 Normal operation
5 Inhibit Setting *4 Accept Setting *4
6 Inhibit Setting *4 Accept Setting *4
7 Inhibit Setting *4 Accept Setting *4
8 Inhibit Setting *4 Accept Setting *4
SW#
Setting Item
*1 For details about the TEST mode, refer to the TAIKO Service Manual.
*2 The acceptance rate will be improved but operation time will be increased if a
banknote is rejected.
*3 Fishing prevention will be improved but operation time will be increased.
*4 For details of the accept/inhibit setting, refer to the Software Information Sheet.
