4-4-4. Download Procedure
When downloading a software from your palm, follow the instructions below.
1. Set the TAIKO Unit’s DIP switch No. 1, 7 and 8 ON.

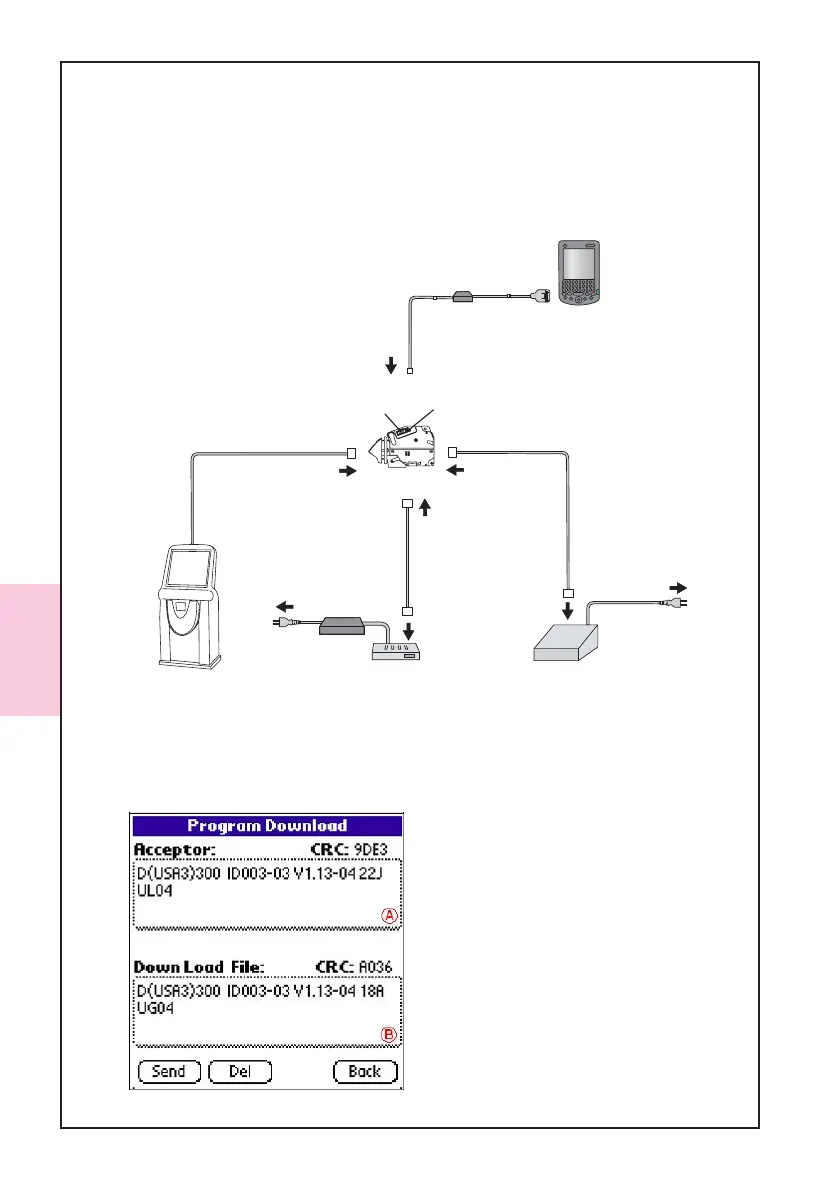

2. Connect the tool (the TAIKO Unit, the Palm and the Power Supply Unit) and the
harness as the following illustration indicates.
3. Turn on your palm and tap the DWN-03 icon. The following screen will be displayed.
Palm
(R)
Tungsten C
TAIKO Unit
AC Power
Interface
Connector
Host Machine
AC Power
B1:JCM Power Supply Unit
(Part#:VM-450, EDP#:059307)
or
equivalent
Interface
Connector
Without JCM Power Supply Unit
or
equivalent
ID-003/MDB/Pulse/ccTalk
ID-001
A1:JCM Power Supply Unit
(Part#:VM-30, EDP#:116125)
or
equivalent
ID-003/ccTalk/HII
Connector
A2:TAIKO Harness A
(Part#:3280-05-54,EDP#:127527)
B2:VM-450 Connection Harness
(Part#:3280-05-102,EDP#:N/A)
ID-001
Connector
Interface
Connector(10Pin)
TAIKO
Adapter
EDP#:
G00172
Maintenance
Connector
Maintenance
Connector(4Pin)
C1: Download Adapter
(EDP# G00172)
