JCM TAIKO - Specifications; General Specifications; Electrical Specifications; Environmental Specifications

8
Power Supply Voltage 12V ±5% DC
Rated Power Consumption
Standby: Approx. 0.1 A
Operation: Approx. 0.8 A
Max.: Approx. 1.4 A (Max. 300 ms)

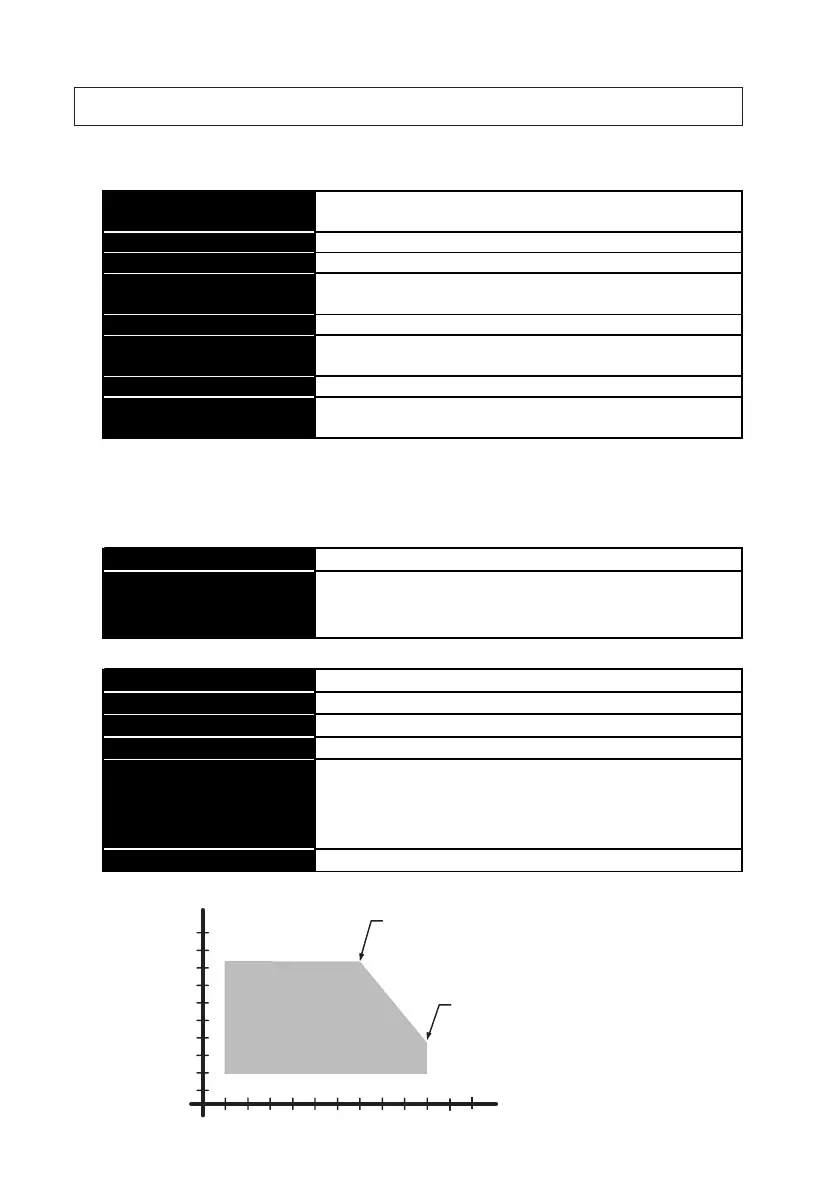

7. Product Specifications
7-1. General Specifications
7-1-1. Basic Specifications
Acceptable Banknote Size
Length: 120 mm to 160 mm
Width: 62 mm to 82 mm
Insertion Direction *1 4-way
Acceptance Rate *1 95% or higher
Validation Method
PUB-7: Optical/T ransparency/Reflection
PUB-11: Optical/T ransparency/Reflection/MAG
Anti-fishing Mechanism Lever and optical sensor combination
Interface
X4:Serial(ID-003)/MDB/Pulse/ccTalk *2
01:Parallel(ID-001)
Escrow 1 banknote
LED
LED lamp (upper portion of faceplate)
Full-color lightning (gradation/solid)
*1 May differ depending on the software for your country. For details, refer to the
Software Information Sheet.
*2 Can be selected using the DIP switches. => 7-5-1.Refer to DIP switch settings.
(No DIP switch settings for Parallel(ID-001) Interface Specification.)
7-1-3. Environmental Specifications
*1 The overall operation temperature and humidity range is as follows.
Operation Temperature *1 5
o
C t o 50
o
C
Storage T emperature -20
o
C t o 60
o
C
Operation Humidity *1 20%RH to 85%RH (No condensation)
Storage Humidity 20%RH to 85%RH (No condensation)
Ligh t Dist urbance
Avoid direct sunlight
Interior lighting must be incandescent lamp
Angle: 15 degrees or more
Illumination: 3000Lx or less
Installation For indoor use only
Ambient temperature
humidity range
35
o
C / 85RH%
50
o
C / 40RH%
(RH%)
100
90
80
70
60
50
40
30
20
10
0
0 5 10 15 20 25 30 35 40 45 50 55 60 (
o
C)
7-1-2. Electrical Specifications
