6-1. Replacement of Faceplate Guide
When replacing the Faceplate Guide, follow the instructions below.
1. Take out two (2) screws from bihind the Faceplate unit.
2. Remove a (1) Faceplate Guide from the Faceplate.
3. Insert a (1) new Faceplate Guide into the Faceplate and then tighten two (2) screws to
hold the Faceplate Guide.
- Tightening the nuts with too much force can damage the face-
plate. The necessary torque is 0.7N
m.

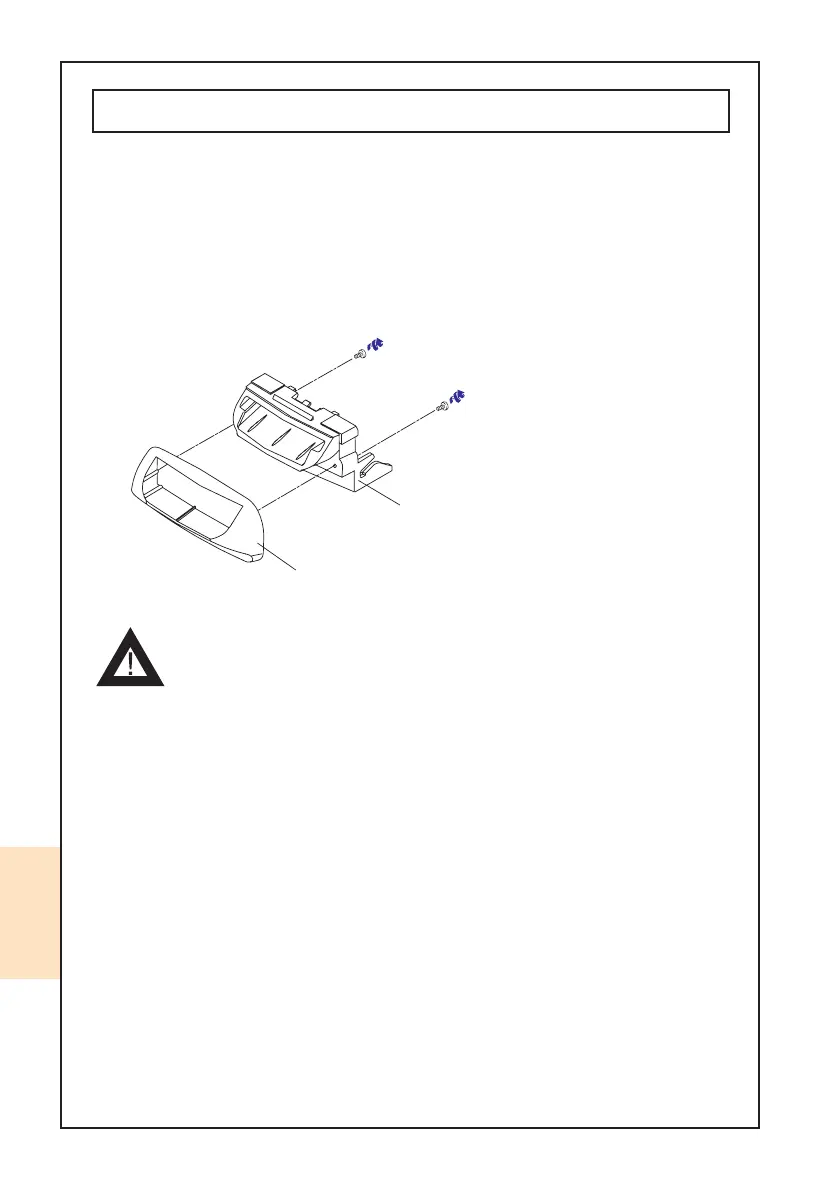

Faceplate
Faceplate Guide
