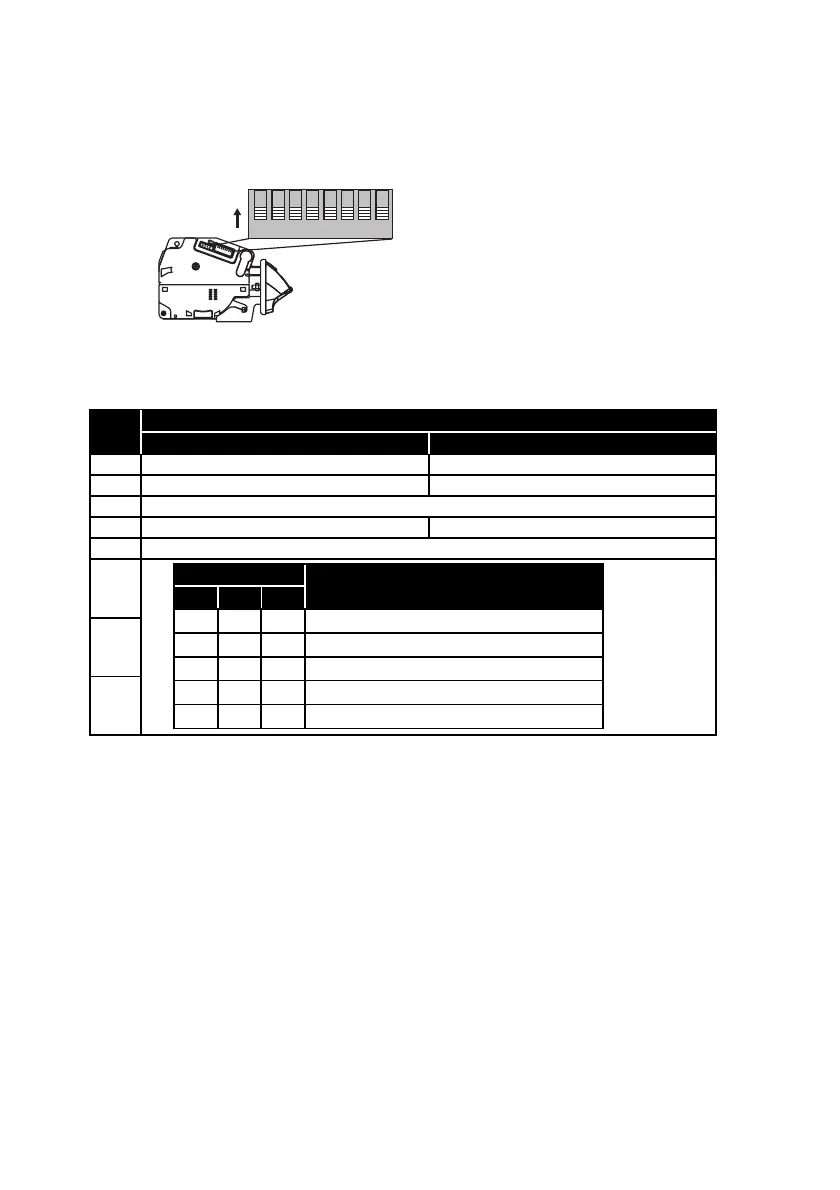

7-5. DIP Switch Settings
The communication method and various functions of the TAIKO unit can be set with the DIP
switches on the left side of the unit.
ON OFF
1 Test Mode *1 Normal Mode
2 Double-Scan Mode *2 Normal Mode
3
4 Five (5) drum cycle (fishing prevention) *3 Normal operation
5
6
7
8
Refer to the Software Specifications
SW#
Reserved
Setting Item
Left Side
87654321
ON
678
OFF OFF OFF
ID-003
ON OFF OFF
MDB
OFF ON OFF ccTalk (Not Encrypted)
ON ON OFF ccTalk (Encrypted)
--ON Pulse *4
SW#
I/F Setting
7-5-1. Basic Settings X4:Serial(ID-003)/MDB/Pulse/ccTalk Specification
*1 For details about the TEST mode, refer to the TAIKO Service Manual.
*2 The acceptance rate will be improved but operation time will be increased if a
banknote is rejected.
*3 Fishing prevention will be improved but operation time will be increased.
*4 For details on the Pulse I/F, refer to the Software Information Sheet.
