21
43 mm
105 mm
Panel Thickness
2 mm to 6 mm
4-R3 (Max)

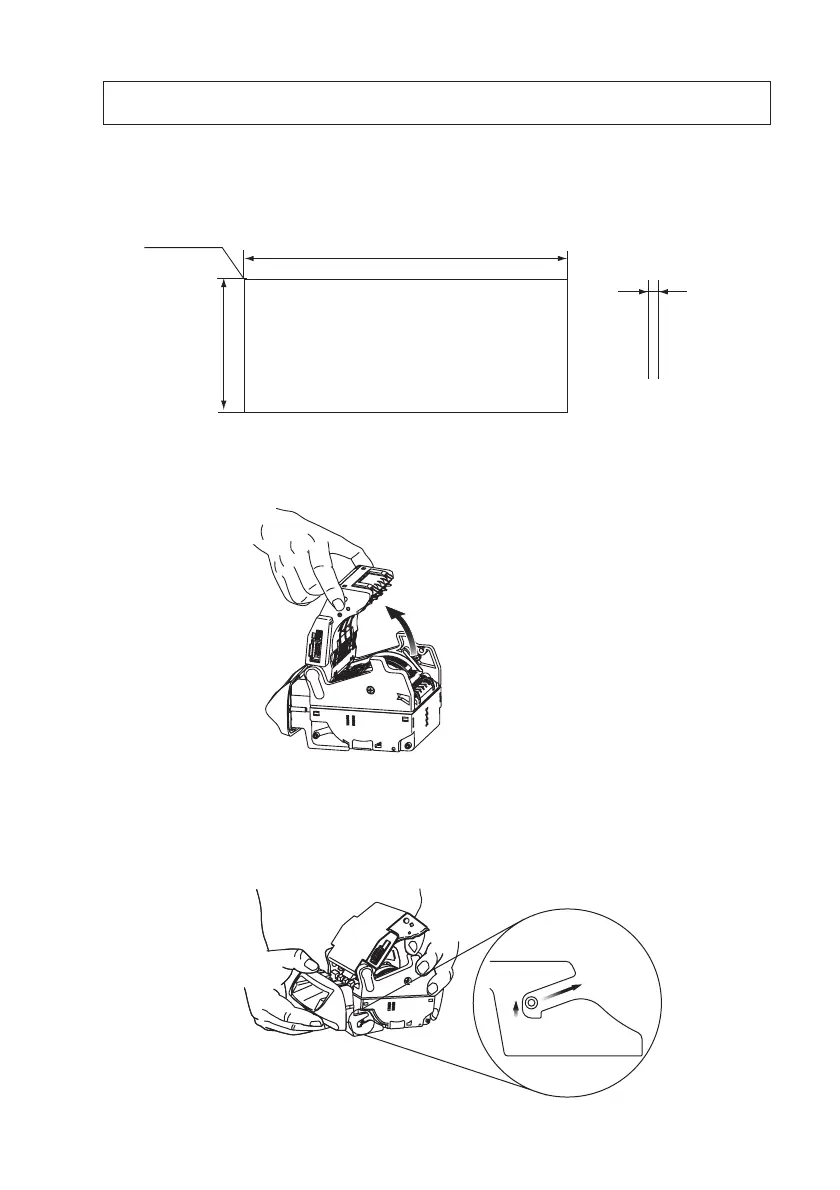

8. Installation/Removal
Perform the following procedure when installing the TAIKO unit.
1. Use the panel cutting dimensions given below and create the correct size of opening required for
installing the TAIKO unit to the door.
3. Grasp the TAIKO unit with your hand under the upper lid.
4. Press down slightly on the faceplate and raise up on the TAIKO unit. Slide the TAIKO unit up
and back to detach it from the faceplate.
2. Hold in the upper lid open/close buttons on both sides of the TAIKO unit and open the upper lid
in the direction of the arrow.
To Next Page
