6-3. Replacement of MAG Board (PUB-11 Only)
The MAG board is mounted in the PUB-11 unit. When replacing the MAG Board, follow
the instructions below.

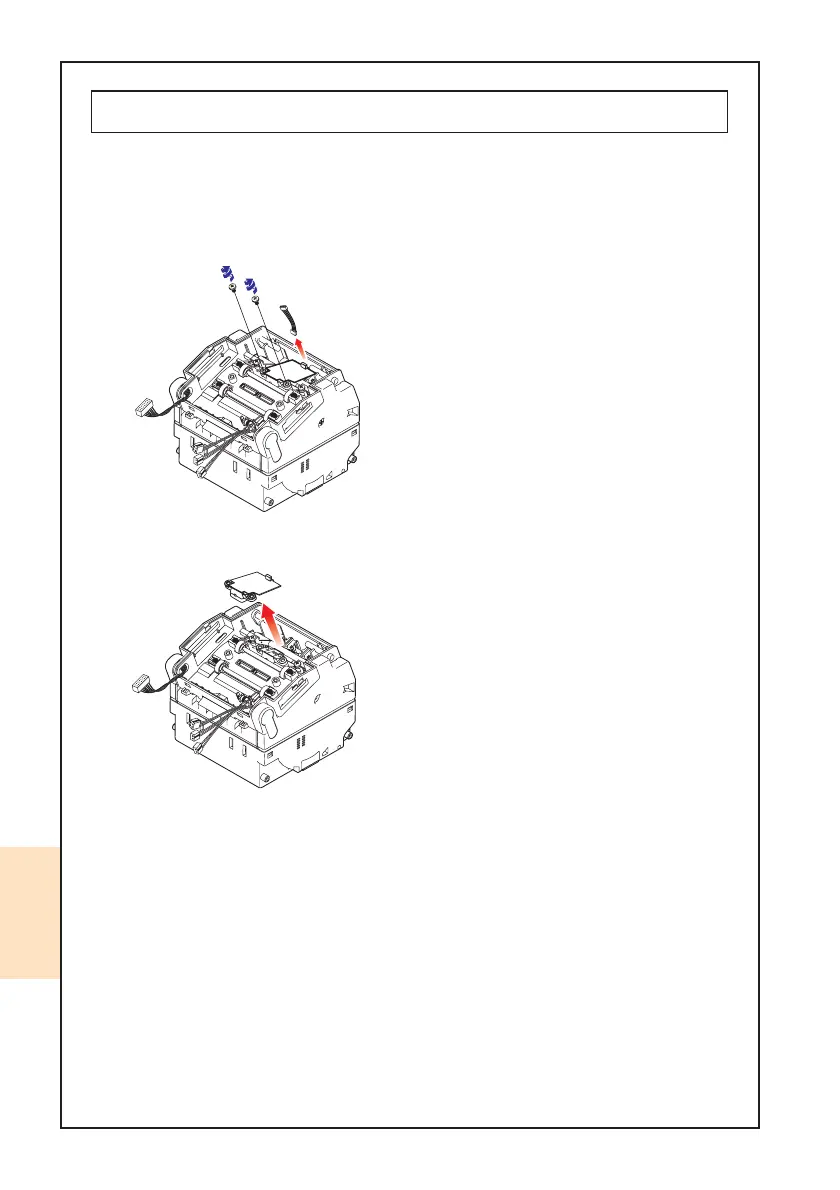

1. Take out a connector and two (2) screws from the MAG board.
2. Remove the MAG board from the unit.
