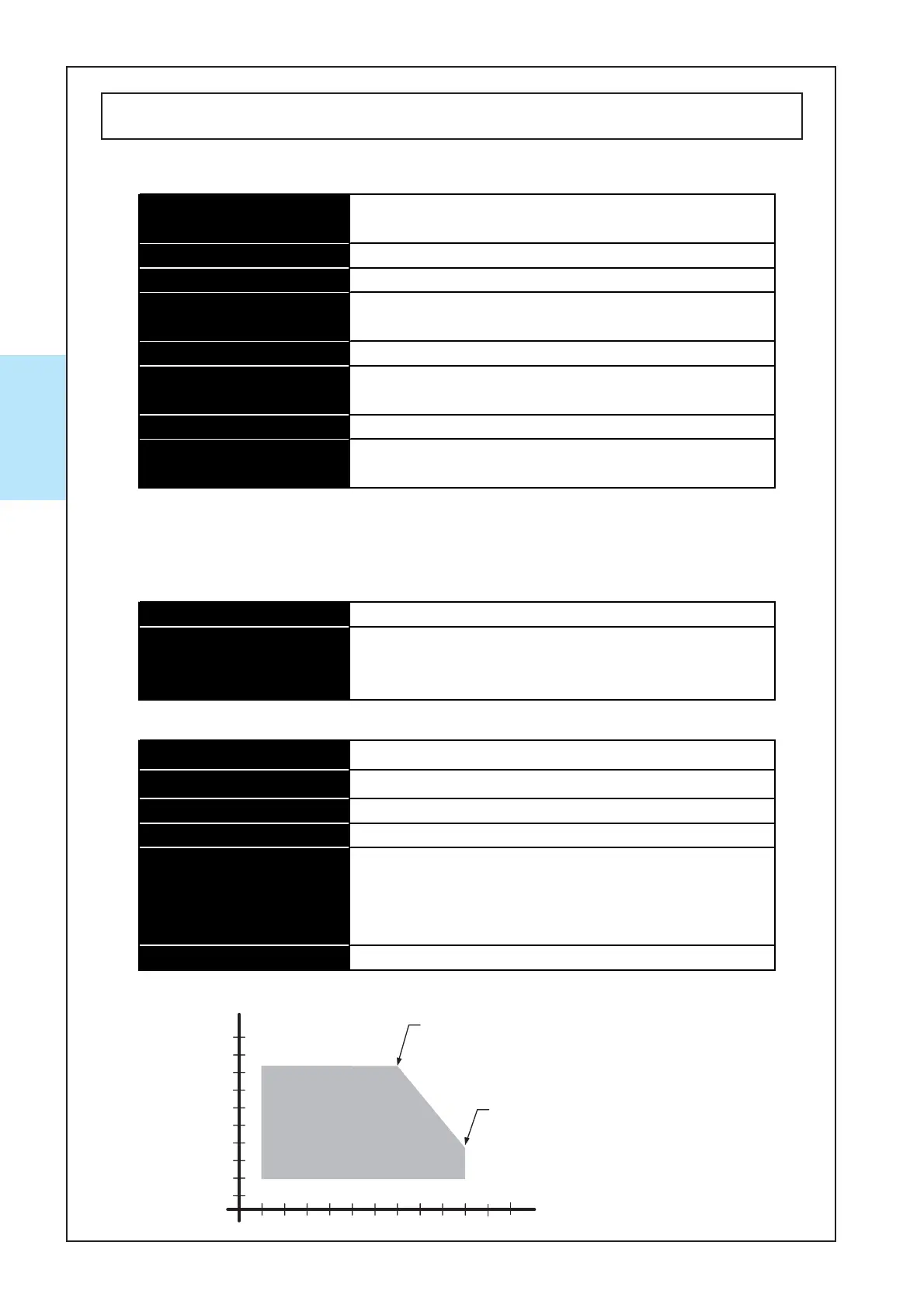

2-1. Specifications
2-1-1. Basic Technical Specifications
*1 May differ depending on the software for your country. For details, refer to the
Software Information Sheet.
*2 Cn be selected using the DIP switches. See =>2-5-1 Dip Switch Settings
(01:ID-001 Parallel Interface Specification doesn’t have DIP Switch Setting.)
2-1-2. Electrical Specifications
Power Supply Voltage 12V DC ±5 %
Rated Power Consumption
Standby: Approx. 0.1 A
Operation: Approx. 0.8 A
Max: Approx. 1.4 A (Max. 300 ms)
2-1-3. Environmental Specifications
Operation Temperature *1
5
o
C to 50
o
C
Storage Temperature
-20
o
C to 60
o
C
Operation Humidity *1 20%RH to 85%RH (No condensation)
Storage Humidity 20%RH to 85%RH (No condensation)
Light Disturbande
Avoid direct sunlight
Interior lighting must be incandescent lamp
Angle: 15 dgrees or more
Illumination: 3000 Lx or less
Installation For indoor use only
*1 The overall operation temperature and humidity range is as follows.
Ambient temperature
humidity range
(RH%)
100
90
80
70
60
50
40
30
20
10
0
0 5 10 15 20 25 30 35 40 45 50 55 60 (
o
C)
35
o
C / 85RH%
50
o
C / 40RH%
Acceptable Bankenote
Length: 120 mm to 160 mm
Width: 62 mm to 82 mm
Insertion Direction *1 4-way
Accepting Rate *1 95% or higher
Validation Method
PUB-7: Optical/Transparency/Reflection
PUB-11: Optical/Transparency/Reflection/MAG
Anti-Fishing Mechanism Lever and optical sensor combination
Interface
X4: ccTalk/Serial(ID-003)/MDB/Pulse *2
01 : Prallel (ID-001)
Escrow 1 banknote
LED
LED lamp (upper potion of faceplate)
Full-color lightning (gradation/solid)
