9. Wiring
Connect the power harness to the TAIKO unit.
- When installing the TAIKO unit or connecting the wiring the harness,
make sure that the power harness is unplugged from the power termi-
nal.
- The TAIKO unit is designed to use only 12V DC (
+5%) input. Any
other power level can damage the unit.
- Do not pull on the power harness with undue force, as that may cause
the power socket to become disconnected.
So c k et
Rock Lever Socket
XG5M-1032-N (Omron)
Socket for flat cable
XG4M-1030-T (Omron)
Semi Cover XG5X-0501 (Omron) -
Rock Lever II XG4Z-0002 (Omron) -
Applicable Wires UL1061 AWG24
1.27 mm pitch Flat Cable
AWG28
UL2651/UL20012
Housing PADP-16V-1-S (JST )
Terminal SPH-002T-P0.5L (JST)
Applicable Wires UL1007 AWG26

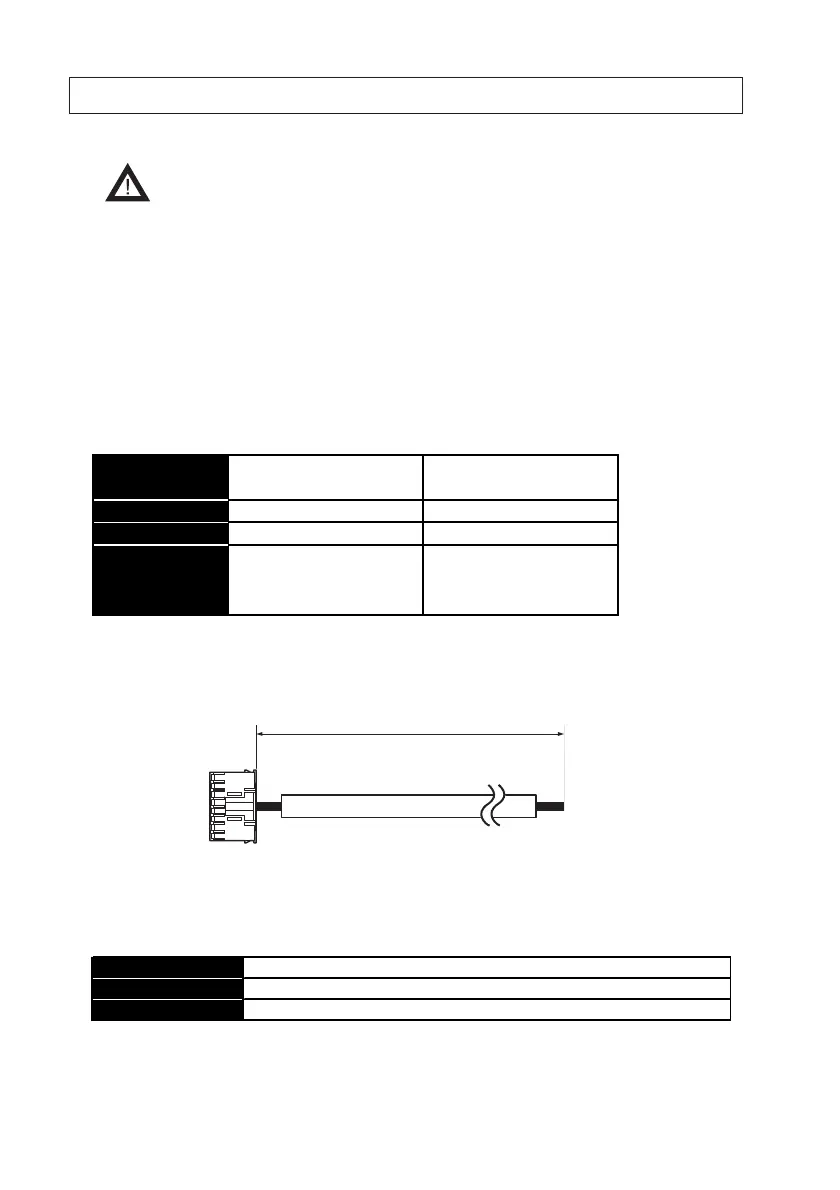

9-1-2. Recommended Parts 01:Parallel(ID-001) Specification
For Parallel(ID-001) Interface Specification, "ID-001 I/F Harness (3280-05-100)"as on the
picture below.
9-1. Recommended Parts
9-1-1. Recommended Parts X4:Serial(ID-003)/MDB/Pulse/ccTalk Specification
We recommend the following parts for wiring.
㪟㪦㪬㪪㪠㪥㪞
㪧㪘㪛㪧㪄㪈㪍㪭㪄㪈㪄㪪
㪓㪡㪪㪫㪕
㪫㪜㪩㪤㪠㪥㪘㪣
㪪㪧㪟㪄㪇㪇㪉㪫㪄㪧㪇㪅㪌㪣
㪈
㪣㪔㪈㪇㪇㪇㫄㫄
ޟ+&+(*CTPGUU㧔㧕ޠ
About Pin assignments, please refer 7-2-2-1. Interface Connector assignment ID-001(Parallel).
We recommend the following parts if the packaged Harness(3280-05-100) will not be used.
