22
Faceplate brackets
Hexagonal nuts

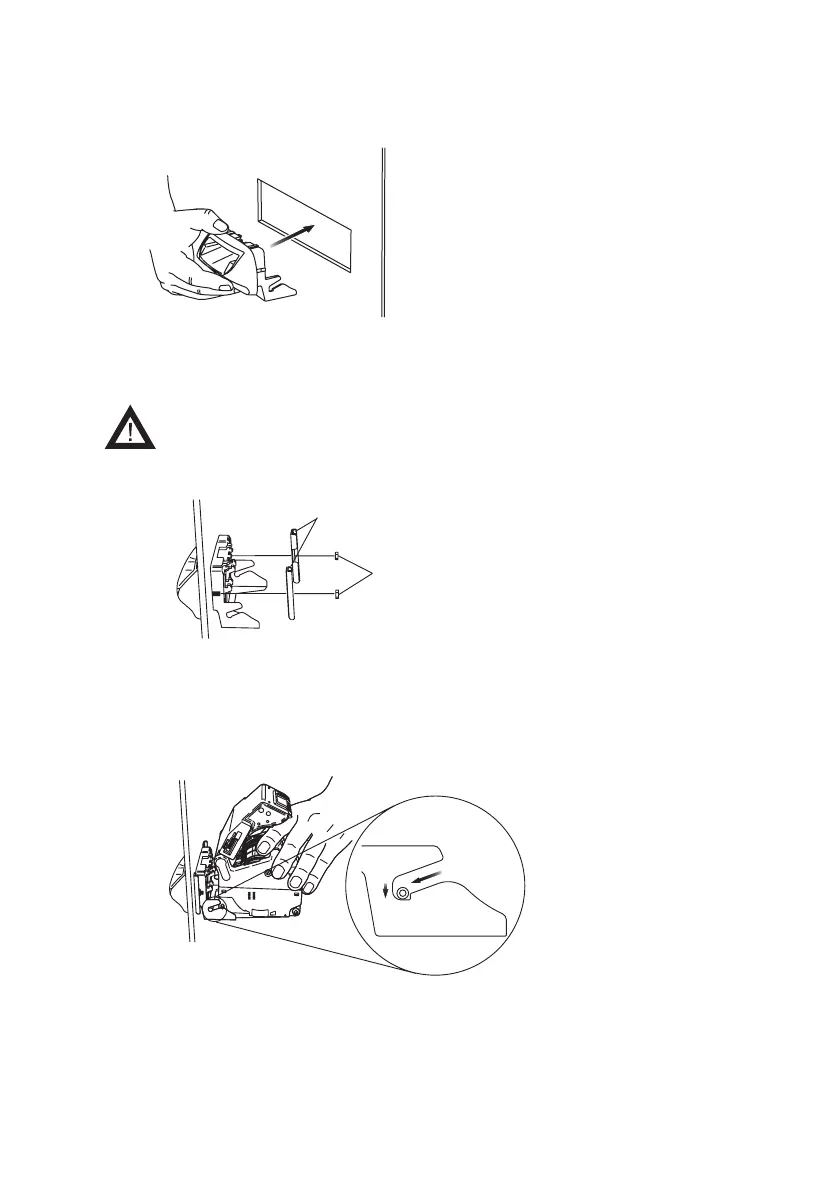

6. Fix the faceplate onto the door using the faceplate brackets (2) and the hexagonal nuts (2).
- Tightening the nuts with too much force can damage the faceplate.
The required torque is 0.7 Nm.
7. Hold in the upper lid open/close buttons once again, open the upper lid, and grasp the TAIKO
unit with your hand under the upper lid.
8. Insert the faceplate installation guide pin into the faceplate guide, and slide the TAIKO unit all
the way into the guide and then push down, as indicated by the arrows.
5. Remove the faceplate brackets (2) and the hexagonal nuts (2) from the faceplate, then insert the
faceplate into the cutout from the front side of the door.
To Next Page
