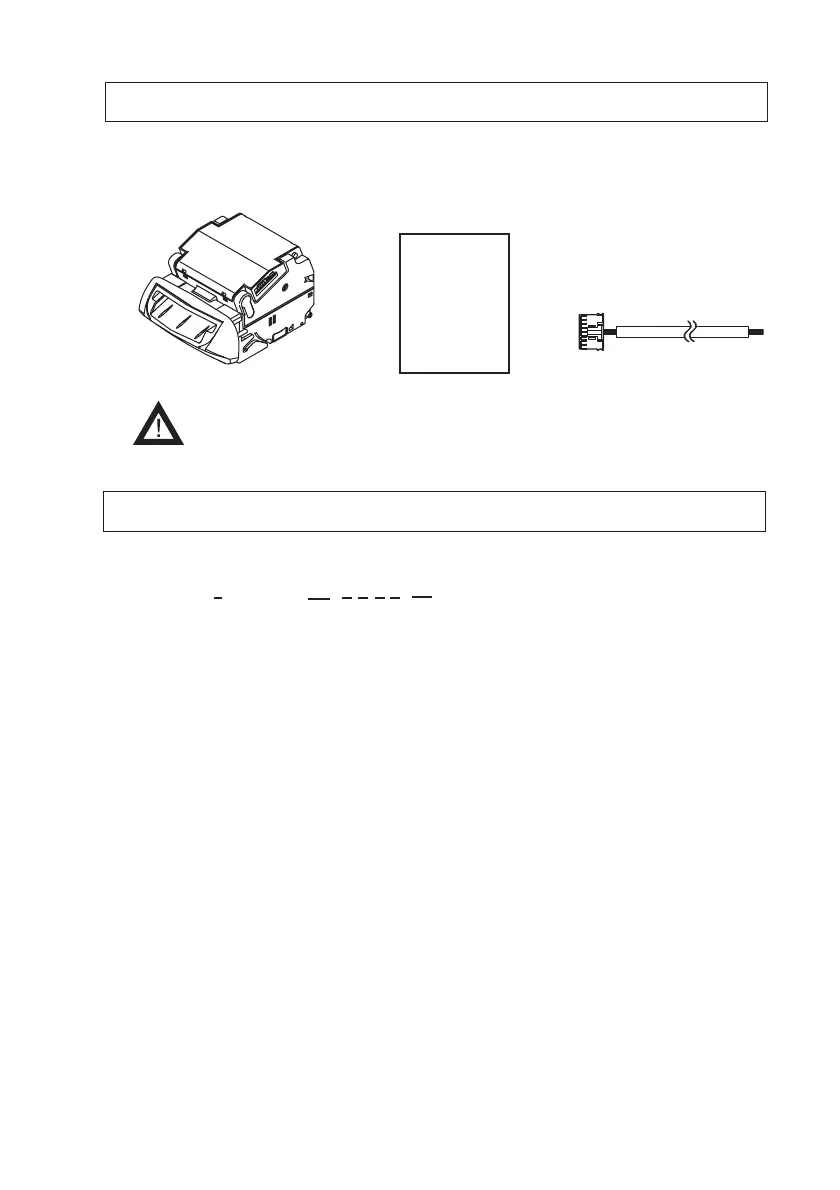

2. Package Contents
The following items are contained within the TAIKO packaging.
TAIKO unit
Installation Guide
ID-001 I/F Harness
<This guide> (3280-05-100)
* The item is packaged
for Parallel Interface
Specification only.
- This unit has been carefully packed, with special attention taken in re-
gard to quality. However if you happen to find anything damaged or
missing, please contact your local distributor immediately.
3. Product Configurations
TAIKO units are configured as follows.
[Model] PUB-* [Type] *** - * * * * - **
A B C D E F G
A.Validation Method 7: Optical/Transparency/Reflection
11: Optical/Transparency/Reflection/MAG
B. Country Code ISO 3166 based 3-digit codes
C. Faceplate Type 0: Without faceplate
1: Bill Width Min.68mm/Max.82mm
2: Bill Width Min.76mm/Max.82mm
3: Bill Width Min.70mm/Max.82mm
5: Bill Width 66mm
D. Optional Unit 0: Without optional unit
1: With interface pin assignment conversion adapter harness
(ccTalk-compatible)
2:Parallel(ID-001) Interface Type (Upper Tray dedicated 16PIN
connecter)
3:Individual Specification
E. Board Type 1: Standard
2: Interface pin assignment (ccTalk compatible)
3:Parallel Interface Type
F. Operation Code 0: Standard
1:Individual Specification
G. Interface X4: Serial(ID-003)/MDB/Pulse/ccTalk
01:Parallel(ID-001)
Installation
Guide
