Faceplate Brackets
Hexagonal Nuts

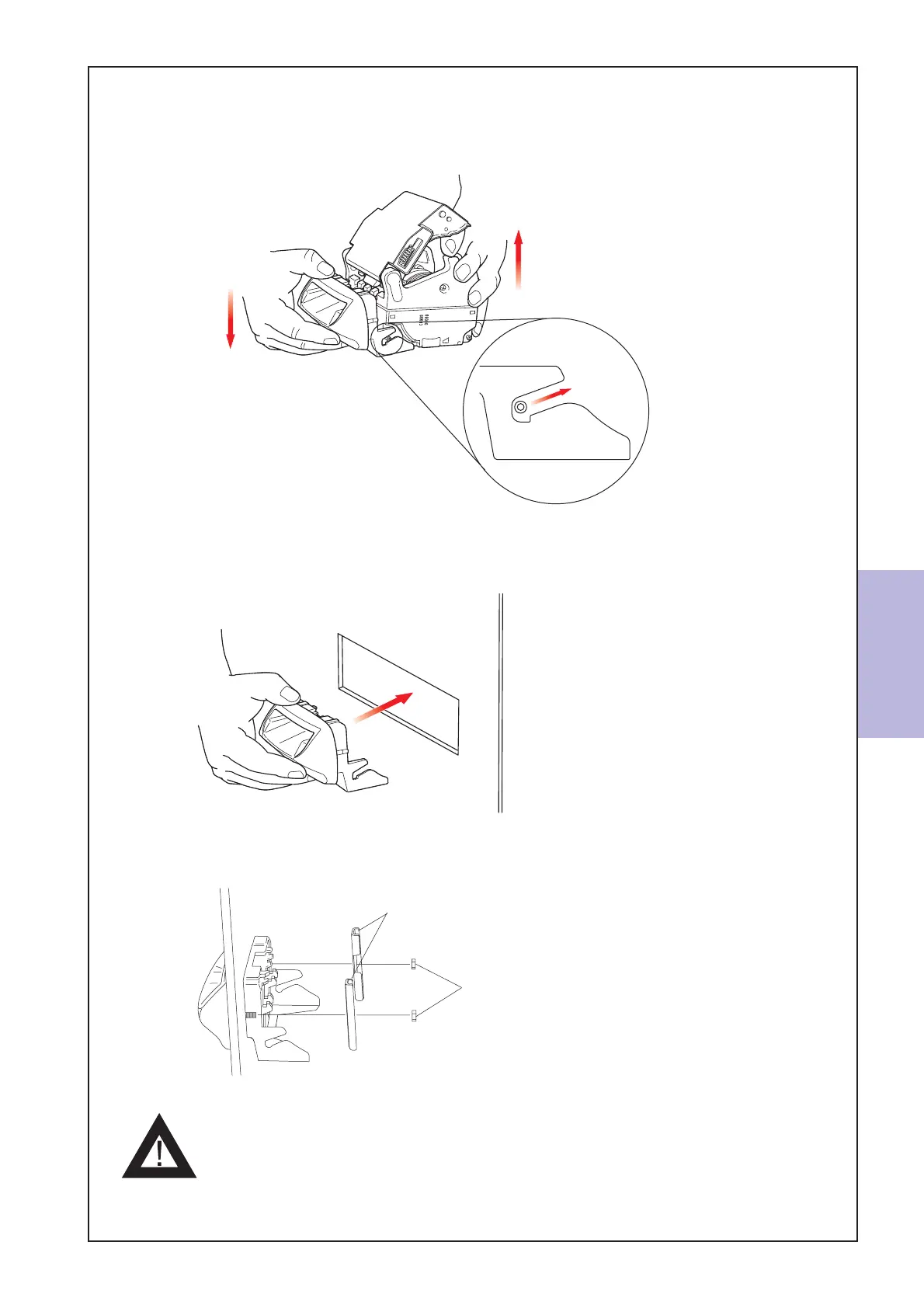

4. Press down slightly on the faceplate and raise up on the TAIKO unit. Slide the TAIKO
unit up and back to detach it from the faceplate. back and up to detach it from the
faceplate.
5. Remove the faceplate brackets (2) and the hexagonal nuts (2) from the faceplate, then
insert the faceplate into the cutout from the front side of the door.
6. Fix the faceplate onto the door using the faceplate brackets (2) and the hexagonal nuts
(2).
- Tightening the nuts with too much force can damage the face-
plate. The required torque is 0.7 Nm.
