Chapter 5 Configuring the Meter
Configure – Channel Plan Tab
92 DSAM Help User Guide Rev. 001
3 Using the arrow keys, select Build New Plan.
4 Press ENTER.
5 Using the arrow keys and the alphanumeric keypad, type the plan
name.
6 Press the Next softkey.
7 Press ENTER.

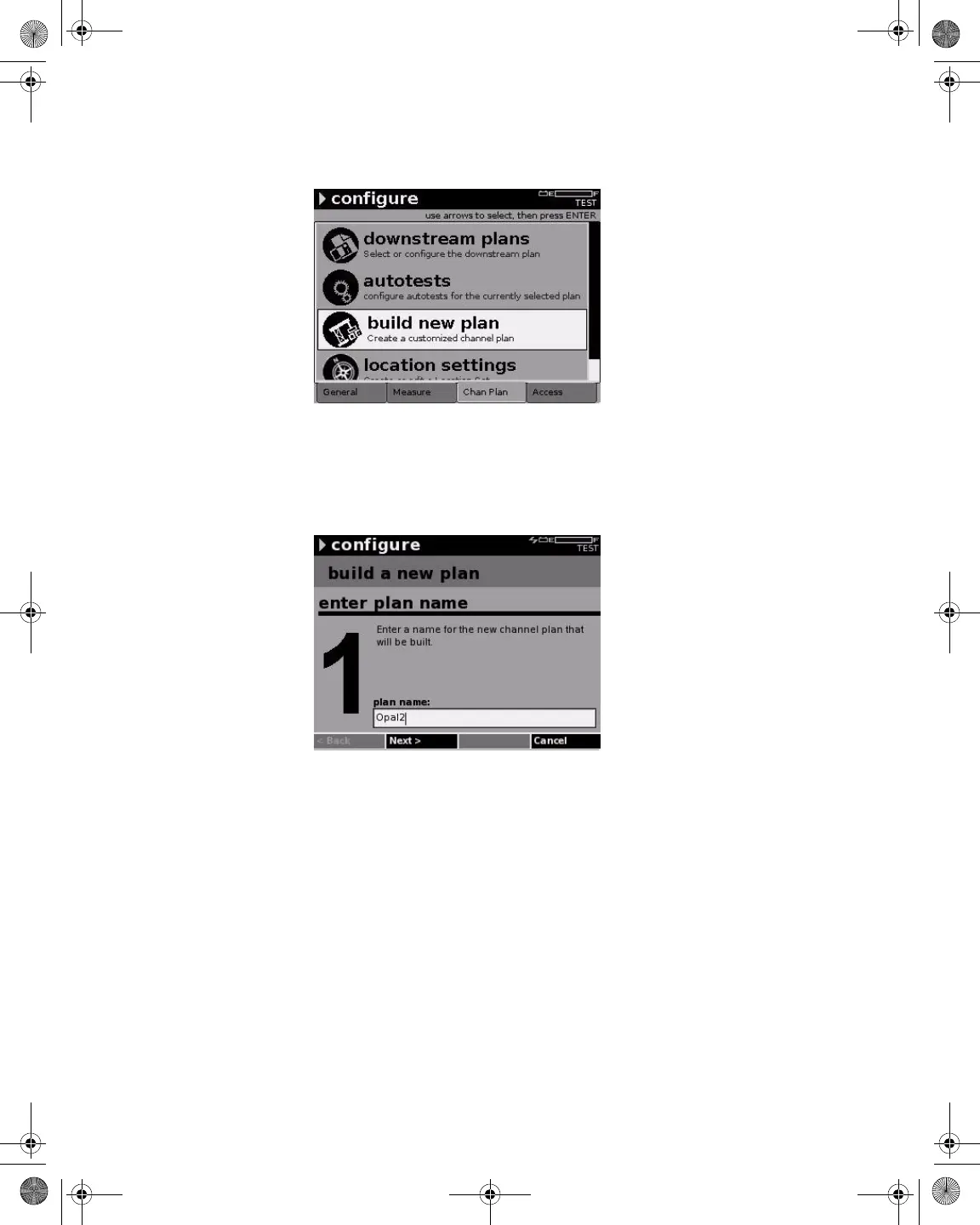

Figure 81 Configure – Channel Plan Tab: Build New Plan
Figure 82 Configure – Build a New Plan (step 1)
