Chapter 9 Measure Mode – Service Tab
DOCSIS
DSAM Help User Guide Rev. 001 205
Only DOCSIS channels defined in the downstream (forward path)
channel plan are available for DOCSIS measurement testing.
You must build a channel plan prior to running a DOCSIS test.
Configuring
DSAM for DOCSIS
Tests
The first thing to check before you run a DOCSIS test is to make sure
the CM MAC Address has been provisioned to your Cable Modem
Terminal System (CMTS).
To configure DSAM for DOCSIS tests
1 Press Configure.
2 Press the Measure softkey.
3 Using the arrow keys, select the DOCSIS Configuration option.
4 Press ENTER.

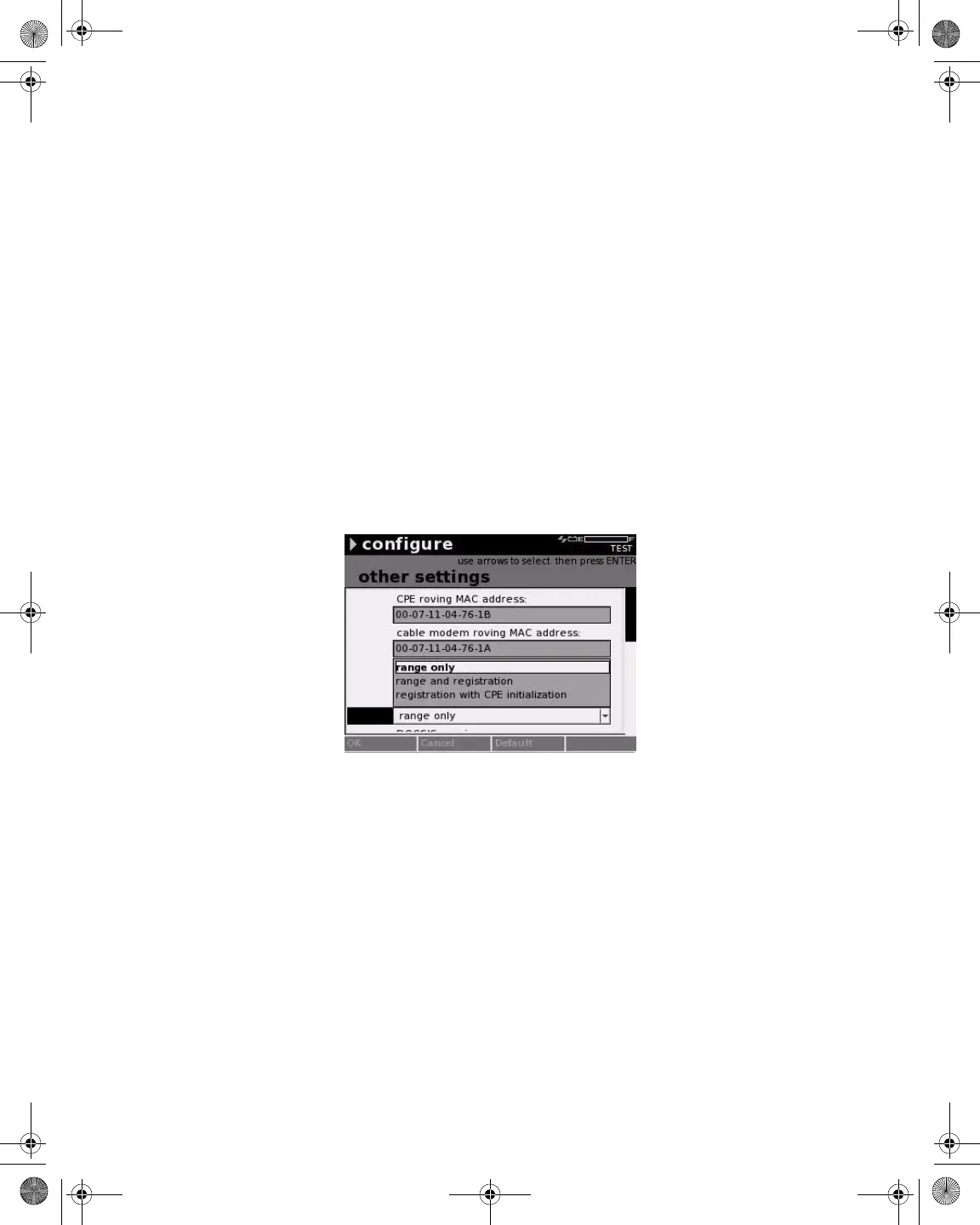

Figure 184 Configure Mode – Other Settings
21128026 R001 DSAM Help User Guide.book Page 205 Thursday, February 5, 2009 2:02 PM
