Chapter 9 Measure Mode – Service Tab
Ethernet
DSAM Help User Guide Rev. 001 227
Network Assignments The Network Assignment area displays the IP Address, Subnet Mask
and Default Gateway.
Meter Information The meter information area displays the CPE MAC Address.
Displaying
Throughput
Results
The Throughput view displays Ethernet throughput (upstream and
downstream) test results.
To display the Throughput view
1 Press the View softkey.
2 Using the arrow keys, select Throughput.
3 Press ENTER.

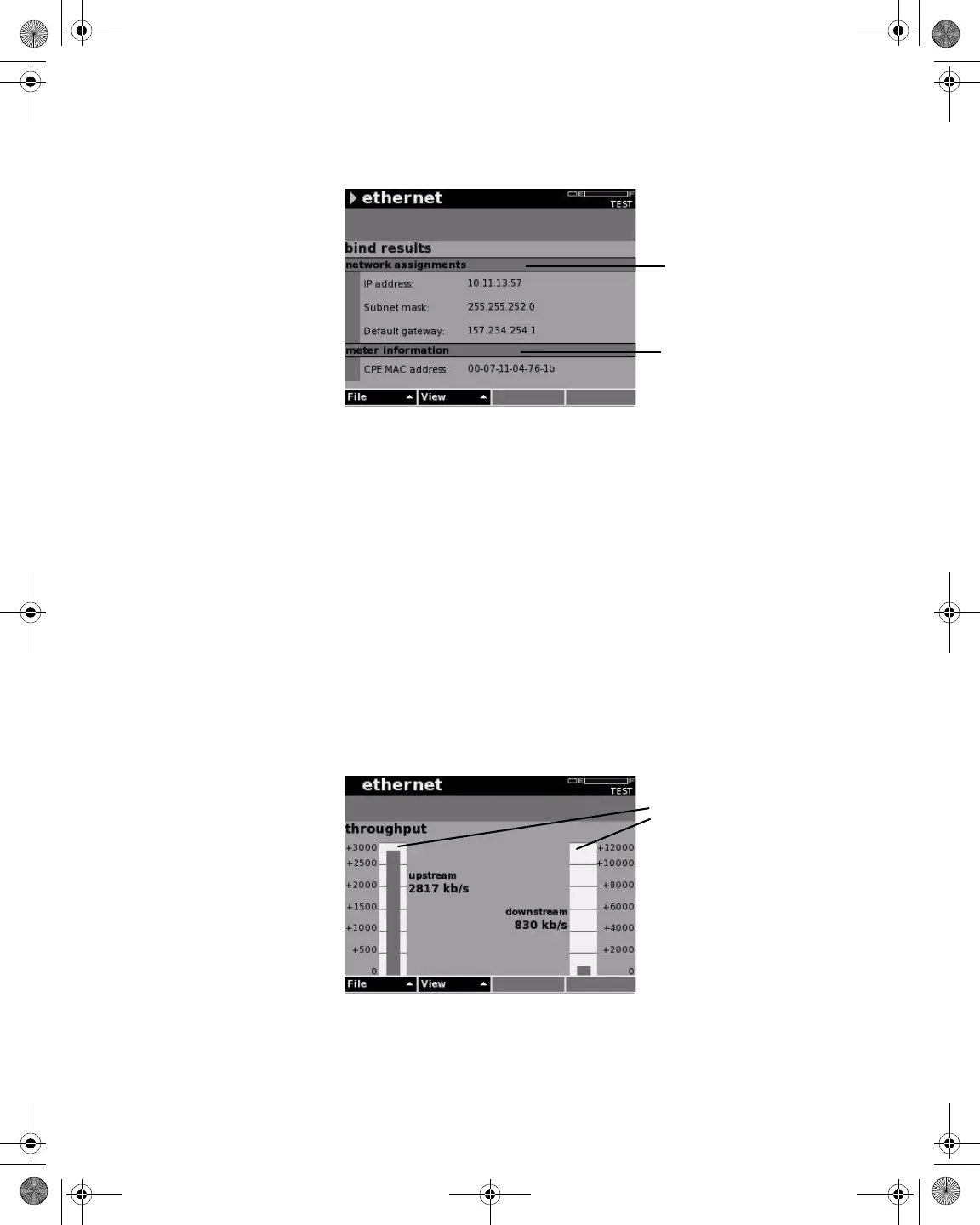

Figure 202 Measure – Bind Results
Network Assignments
Meter Information
Figure 203 Measure Mode – Ethernet
Throughput Graphs
