Chapter 5 Configuring the Meter
Configure – Measure Tab
56 DSAM Help User Guide Rev. 001
5 Using the arrow keys, select the parameter you want to edit.
6 Press ENTER.
7 Using the arrow keys and the alphanumeric keypad, edit the
value.
OR
8 Using the arrow keys, select an option.
9 Press ENTER.
10 Press the OK softkey.

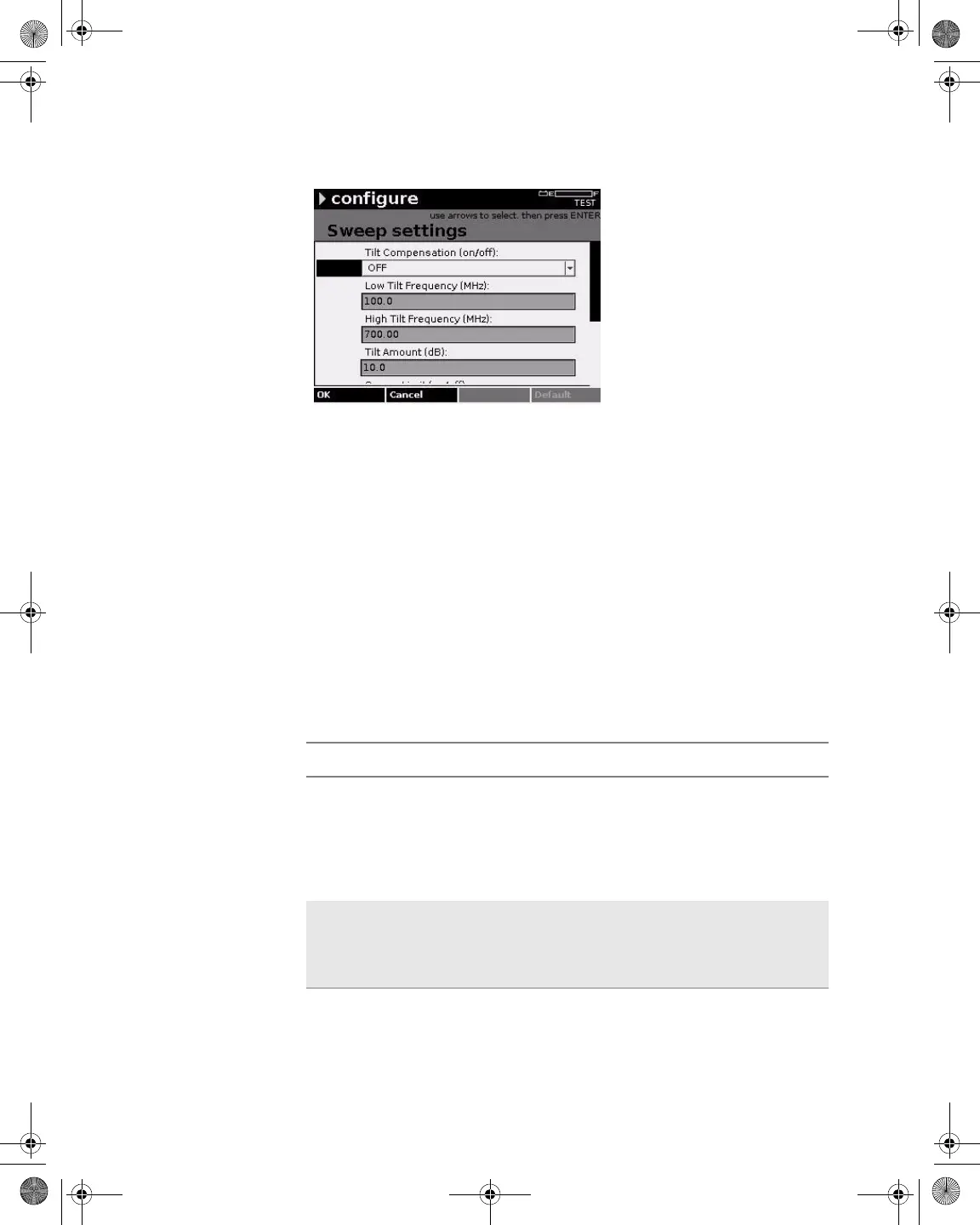

Figure 47 Configure – Sweep Settings
Table 21 Sweep Settings Parameters
Name Description
Tilt Compensa-
tion
Sweep Tilt Compensation is different from the stan-
dard DSAM Tilt mode. Typically, Tilt Compensation
is used to adjust the sweep response on a branch
of a network where the branch tilt is not the same as
the mainline network. Valid options are On and Off.
The default option is Off.
Low Tilt Fre-
quency
Use the up and down arrow keys to increase or
decrease the value in 10 kHz increments. The valid
range is 5.0 to 999.99 MHz. The default value is 5.0
MHz.
21128026 R001 DSAM Help User Guide.book Page 56 Thursday, February 5, 2009 2:02 PM
