JDS Uniphase DSAM-3500 - Figure 13 Configure - General Tab: Contrast Adjustment; Configuring Screen Contrast

Chapter 5 Configuring the Meter
Configure – General Tab
DSAM Help User Guide Rev. 001 29
– Auto adjustment provides a limited contrast adjustment based on
the sensed temperature range.
– Manual adjustment provides full contrast adjustment across the
entire operational temperature range (0 to +120 degrees Fahren-
heit or -20 to +50 degrees Celsius). The factory default for screen
contrast is 50%.
Configuring Screen
Contrast
To configure screen contrast
1 Press Configure.
2 Press the General softkey.
3 Using the arrow keys, select Contrast.
4 Press ENTER.
NOTE
Contrast is not applicable to DSAM
XT
models.
NOTE
When working in extreme temperatures, JDSU recommends using
Manual mode.

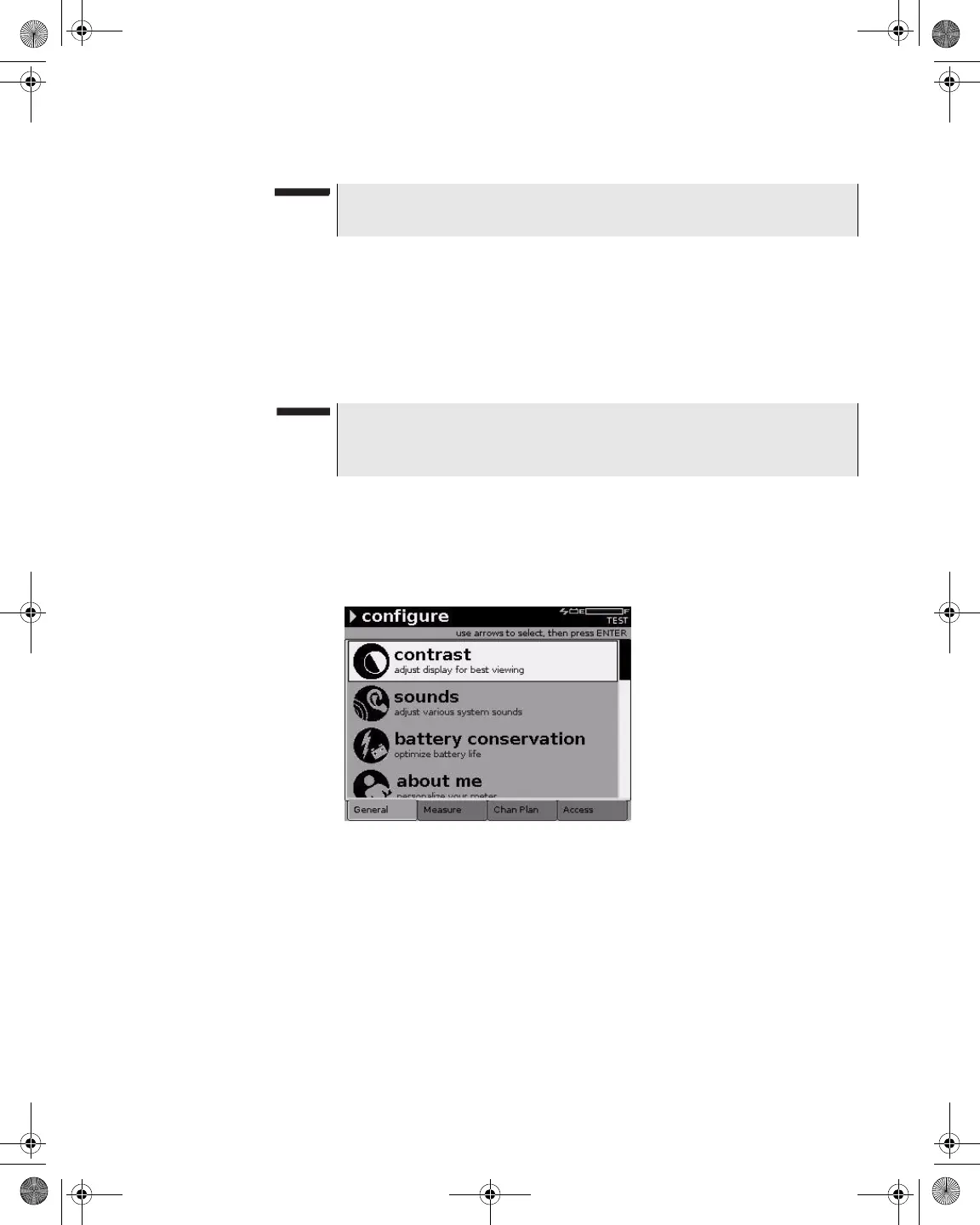

Figure 13 Configure – General Tab: Contrast Adjustment
