Chapter 4 Powering the DSAM
Powering the Meter
24 DSAM Help User Guide Rev. 001
For information about the charger module’s specifications, see
Table 48 on page 302.
Understanding the
High Capacity
Battery LED’s
There are two LED indicator lights located on the bottom of your high
capacity DSAM Product Family Series battery (refer to Figure 12 on
page 24) -- the red “CHARGE” LED and the green “OK” LED.
The green “OK” LED illuminates to indicate that the battery is
completely charged.
The red “CHARGE” LED illuminates to indicate the present charge
condition. Under normal charging conditions, this LED should remain
on constantly. A flashing LED is indicative of a fault condition. To inter-
pret the “CHARGE” LED indications, review Table 12.
Green On
(constant)
Fast charge cycle is complete; battery
is ready for use and in maintenance
charge mode while attached to the
charger module
Red Flashing Battery-related error or defect
detected; min/max cell voltage or bat-
tery temperature is out of range)
Orange Flashing DC input voltage is out of range.
Table 11 Standard Capacity Charge LED Indications
LED color LED activity Battery and charge condition

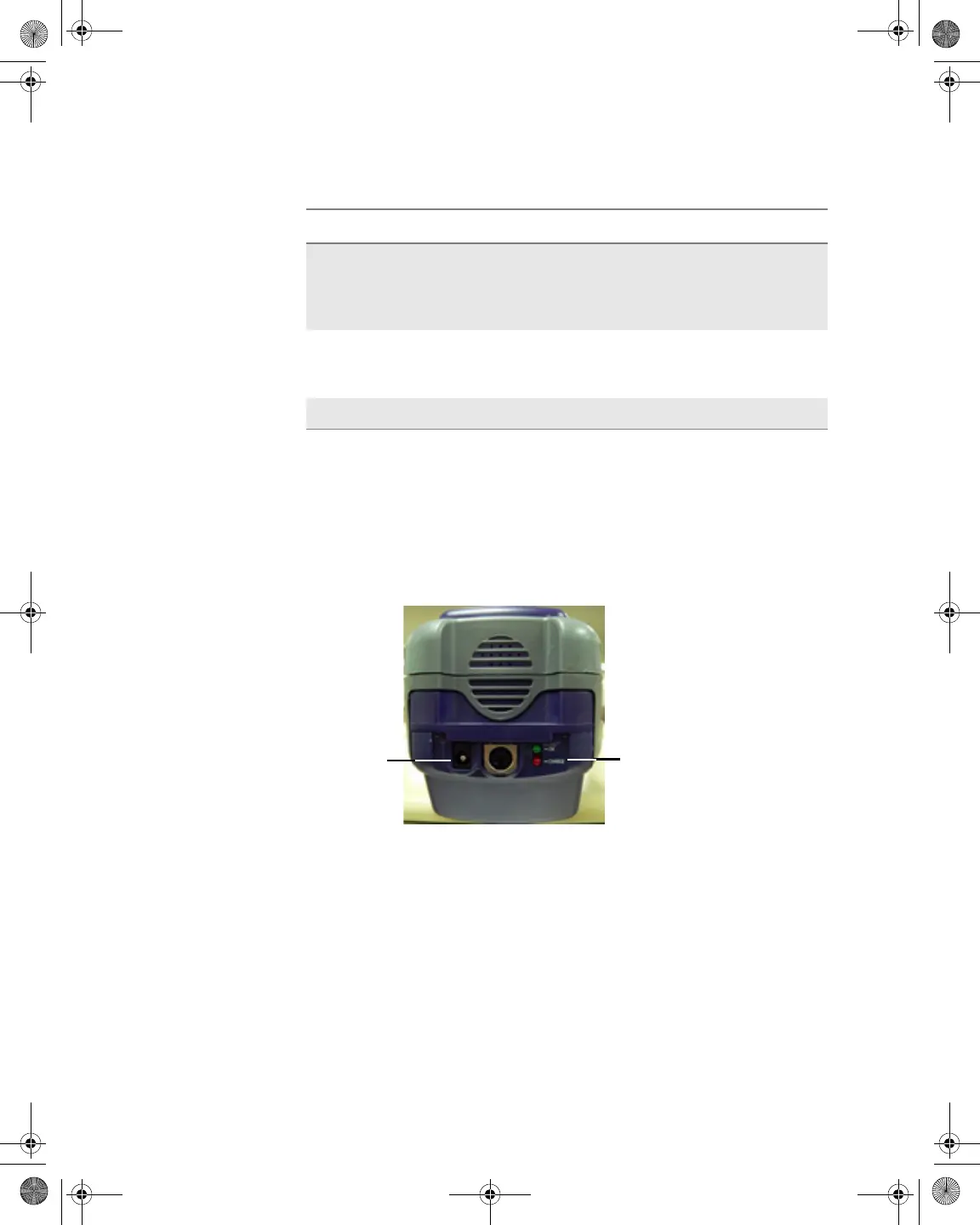

Figure 12 DSAM Product Family Series Field Meter (Bottom
View)
Charge
Indicator
LEDS
12 Volt
DC Port
21128026 R001 DSAM Help User Guide.book Page 24 Thursday, February 5, 2009 2:02 PM
