Chapter 10 Measure Mode – Spectrum Tab
Field View
260 DSAM Help User Guide Rev. 001
5 Press the Settings softkey.
6 Using the arrow keys, select Telemetry Frequency.
7 Press ENTER.
8 To set the telemetry frequency between 50 MHz and 1000 MHz,
use the alphanumeric keypad.
9 Press ENTER.

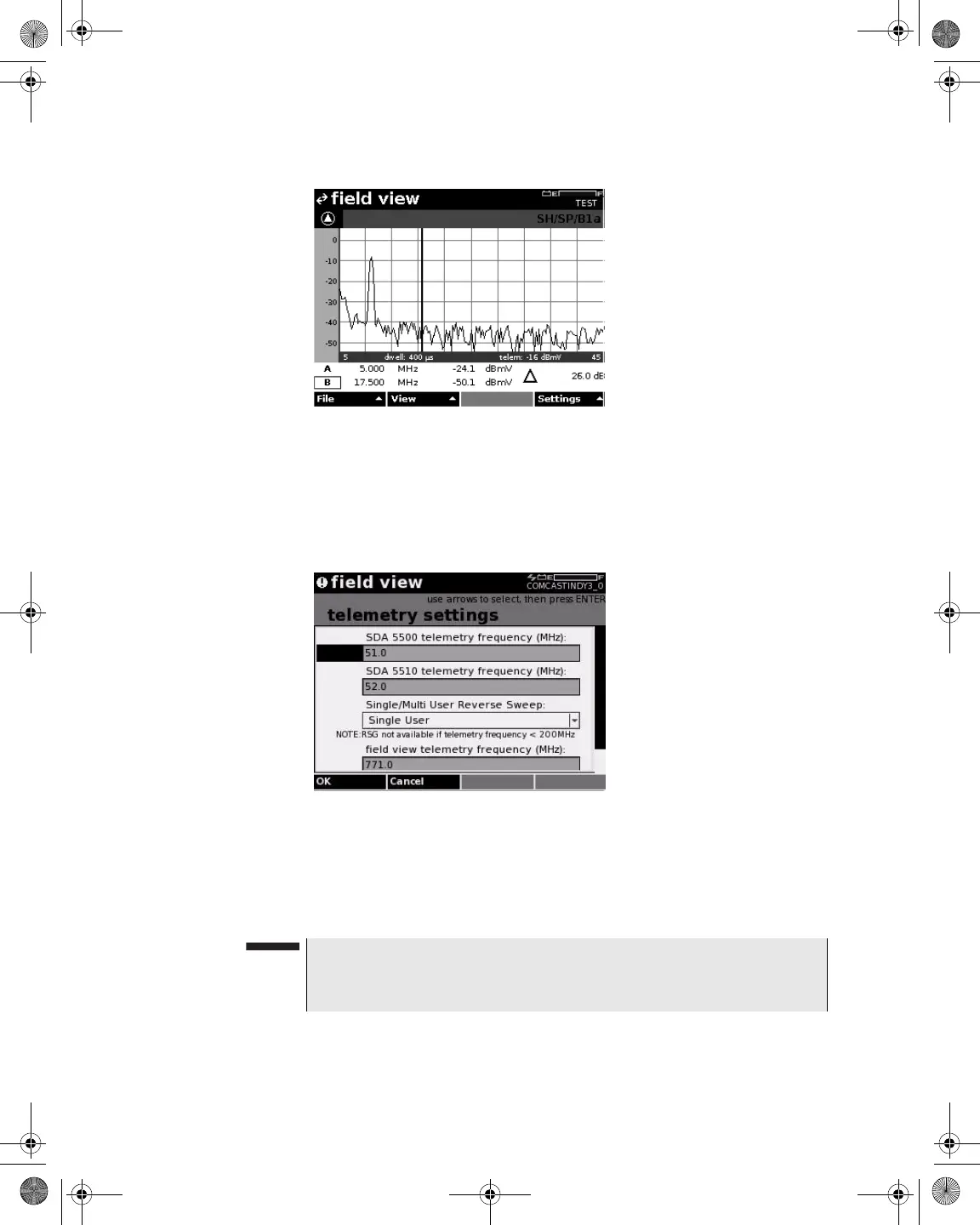

Figure 237 Measure Mode – Field View
Figure 238 Measure Mode – Field View Telemetry
NOTE
You must set the telemetry frequency to match the frequency at
which the headend modem is broadcasting data.
21128026 R001 DSAM Help User Guide.book Page 260 Thursday, February 5, 2009 2:02 PM
