Chapter 5 Configuring the Meter
Configure – Channel Plan Tab
DSAM Help User Guide Rev. 001 95
Location Settings The Test Productivity Pack (TPP) software determines what parame-
ters appear on the Location Settings screen. Use the Location Settings
screen to create or edit a location setting.
Configuring Location
Settings
To configure location settings
1 Press Configure.
2 Press the Chan Plan softkey.
3 Using the arrow keys, select Location Settings.

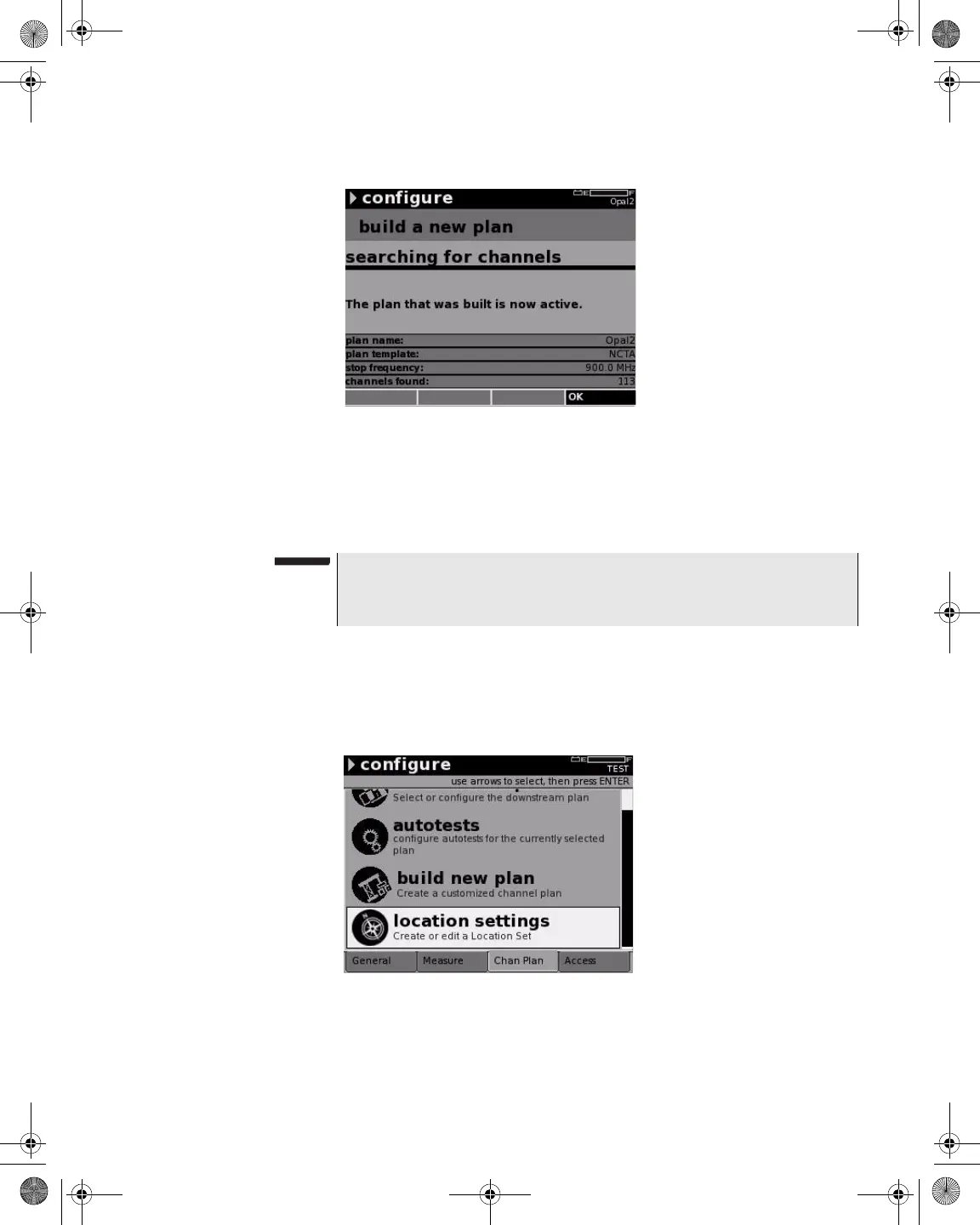

Figure 87 Configure – Build a New Plan (complete)
NOTE
The Location Settings screen can be disabled on your meter from
TPP.
Figure 88 Configure – Channel Plan Tab: Location Settings
