Chapter 11 Measure Mode – Sweep Tab
Reverse Alignment
290 DSAM Help User Guide Rev. 001
– Open File – Enables you to select and open a saved sweep-
less sweep measurement file.
– Clear Reference – Removes the reference file from measure-
ment and returns the subtitle bar to “REF: NONE.”
3 Press ENTER.
Reverse Alignment
Using constant inputs, Reverse Alignment mode enables you to
correctly align the amplifiers to maintain unity gain. This mode also
minimizes noise and ingress so the digital signals are not clipped or
compressed.
Running a
Reverse
Alignment
To run a reverse alignment
1 Press Measure.
2 Press the Sweep softkey.
3 Using the arrow keys, select Reverse Alignment.
4 Press ENTER.

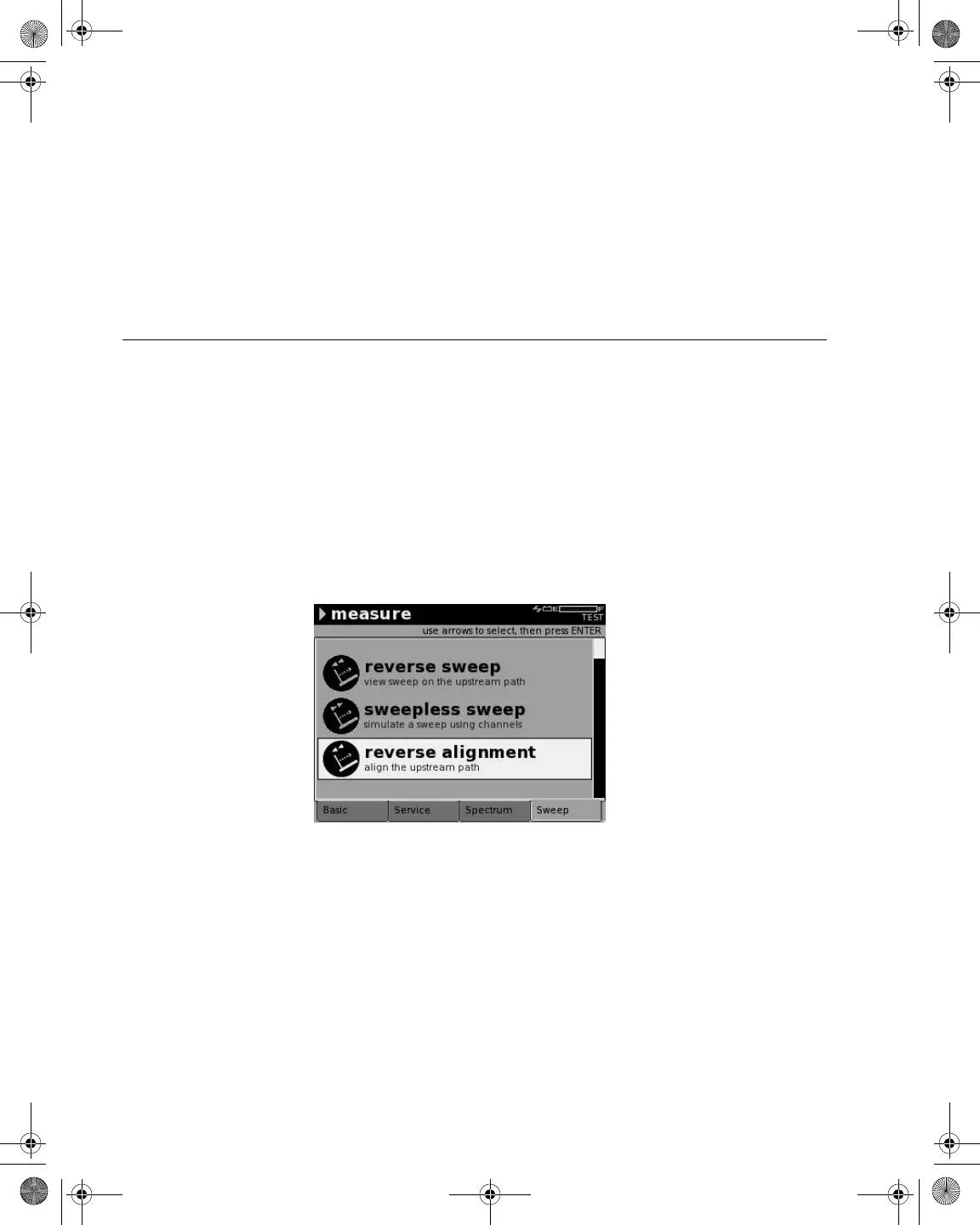

Figure 258 Measure Mode – Sweep Tab
21128026 R001 DSAM Help User Guide.book Page 290 Thursday, February 5, 2009 2:02 PM
