Chapter 5 Configuring the Meter
Configure – Measure Tab
DSAM Help User Guide Rev. 001 55
Configure – Measure Tab
The Configure mode – Measure tab enables you to edit the following
configuration areas for the DSAM:
– Sweep Settings
–Limit Sets
– DOCSIS Throughput
– FDR Settings
– Other Settings
– Return QAM Generator
– Test Point Compensation
Sweep Settings
The Sweep Settings screen enables you to set the sweep, tilt, limit,
and reverse sweep port parameters.
Configuring Sweep
Settings
To configure sweep settings
1 Press Configure.
2 Press the Measure softkey.
3 Using the arrow keys, select Sweep Settings.
4 Press ENTER.

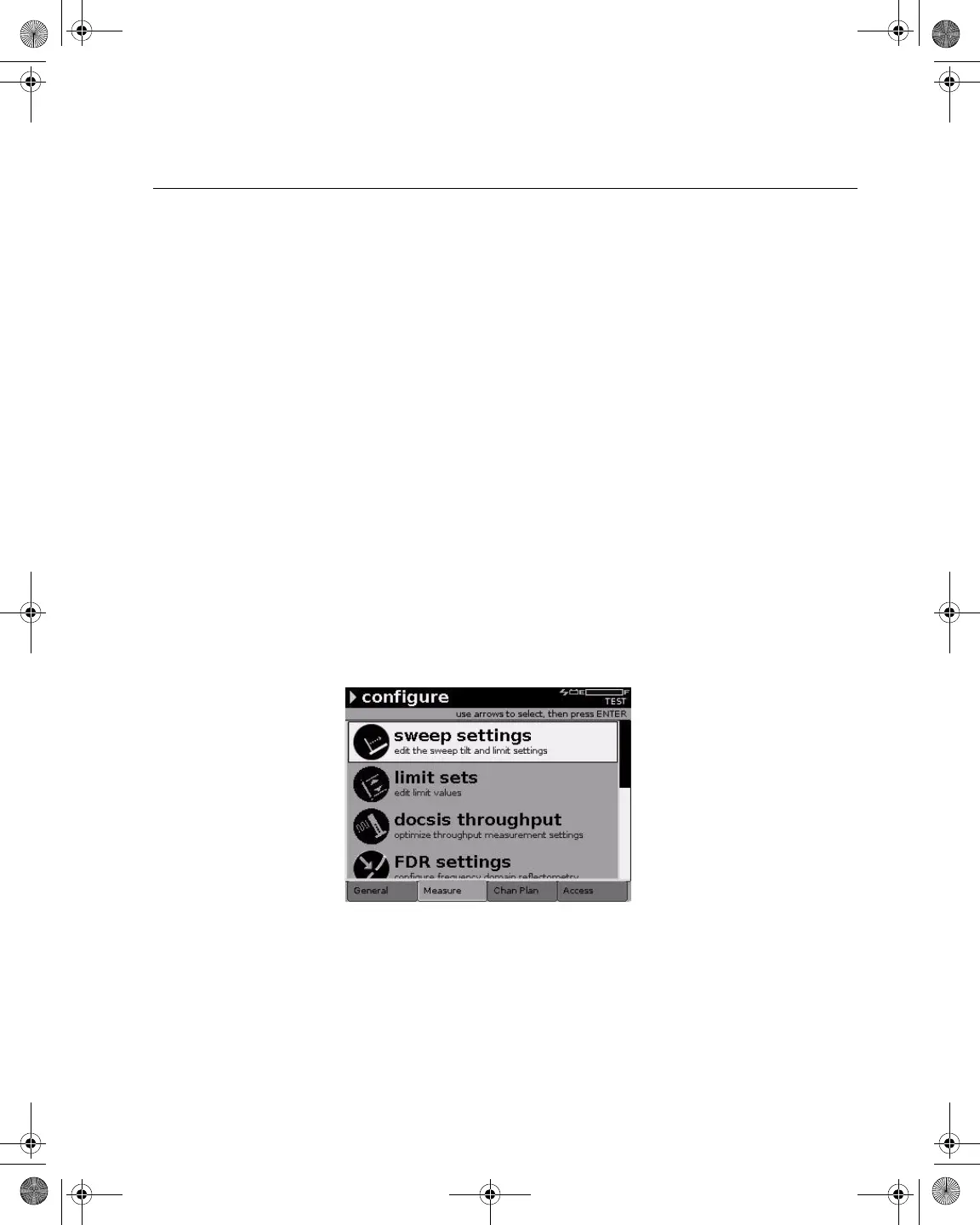

Figure 46 Configure – Measure Tab: Sweep Settings
