Johnson Controls FMS-2000C - Double View

FMS-2000C
LIT-12013504
50

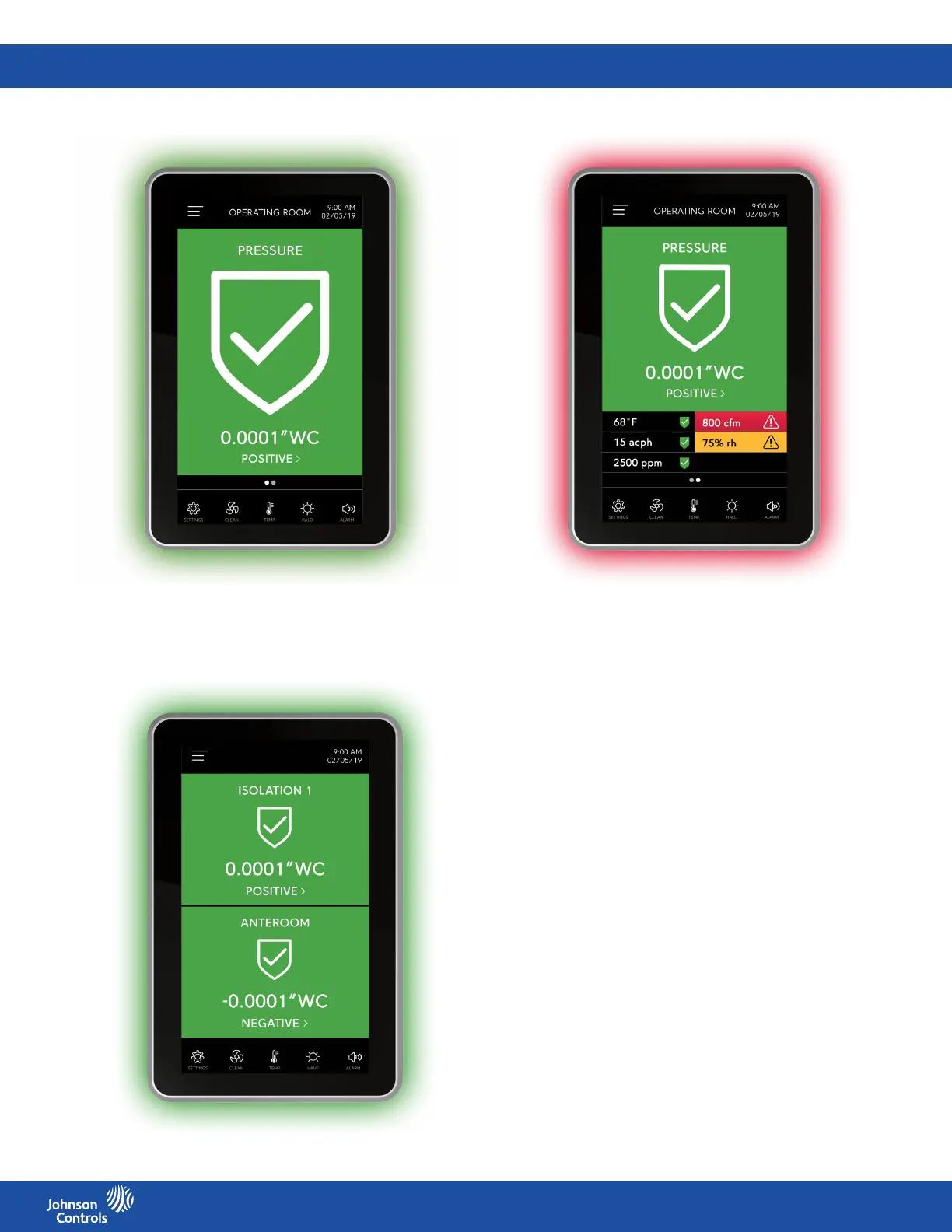

Figure 9: Single view secondary screen
Figure 8: Single view primary screen
Double view
In double view, you can display the status and sensor readings for two parameters. Use this view for applications that have an isolation
room and an anteroom where both spaces have an isolation mode quick link.
Figure 10: Double view
