FMS-2000C

LIT-12013504

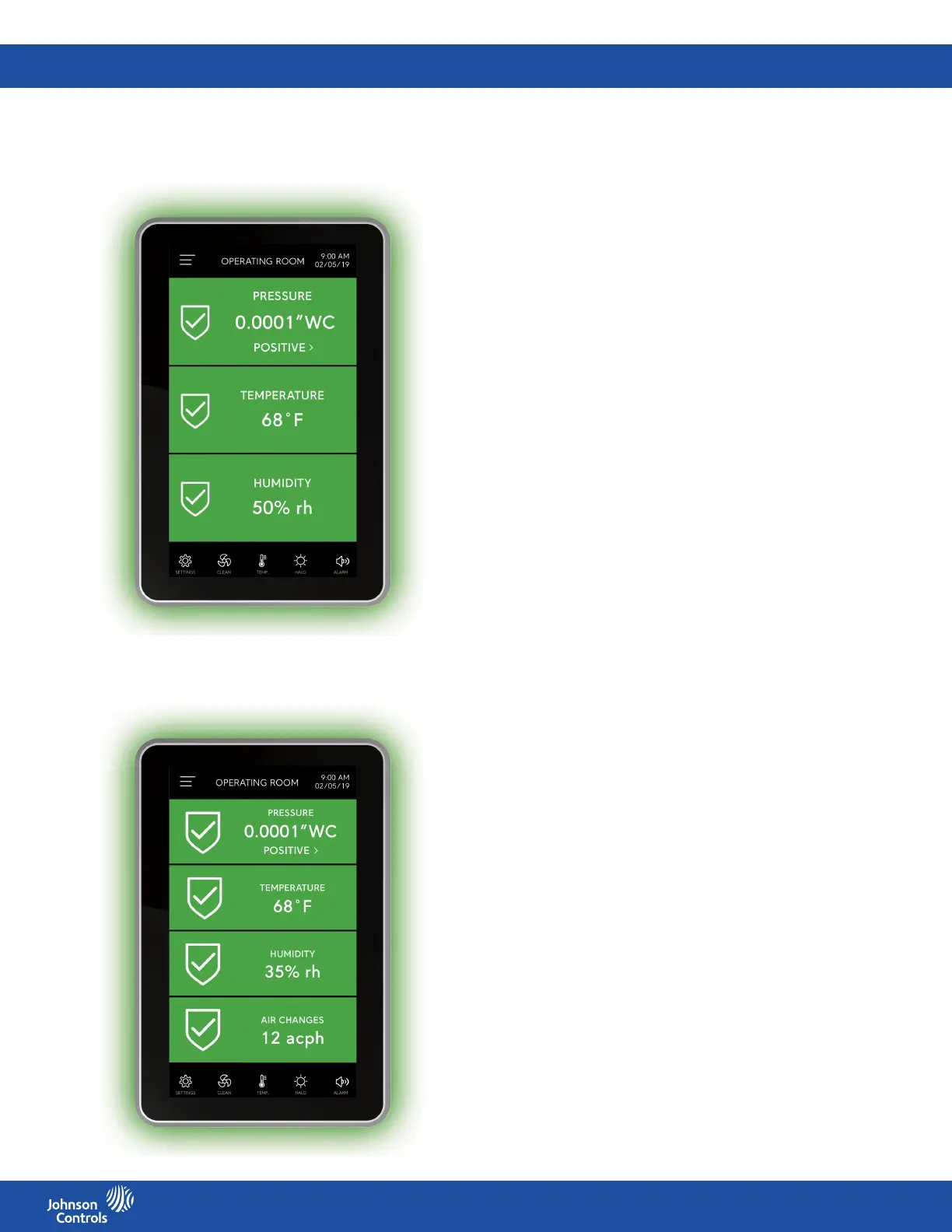

Figure 11: Triple view

Triple view

In triple view, you can display the status and sensor readings for three parameters. You can use this view for hospital applications to see

pressure, temperature and humidity at the same time.

Quad View

In quad view, you can display the status and sensor readings for four parameters.

Figure 12: Quad view
