3 – 69

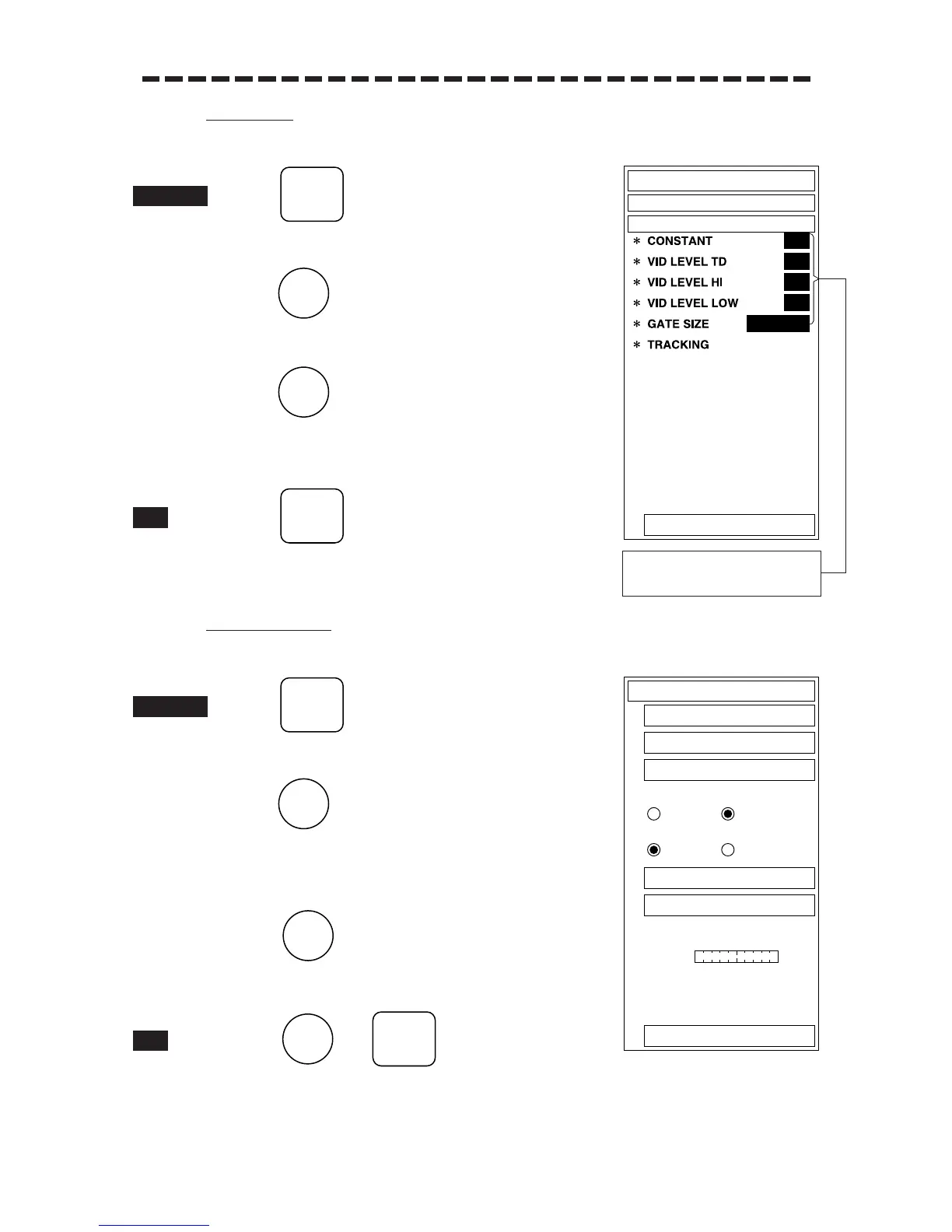

3-3 STATUS
Refer to (3) Checking ARPA in Section 8.1.1 Function Check on Test Menu.
1 Press .
The TEST Menu will appear.
2 Press .
The ARPA TEST Menu will appear.
3 Press .
The STATUS Menu will appear and the setting conditions in
other menus will appear.
1 Press .
The TEST Menu will be closed.
4 MAG CURRENT
Refer to (4) Checking Magnetron Current in Section 8.1.1 Function Check on Test Menu.
1 Press .
The TEST Menu will appear.
2 Press .
“ON” in “4.MAG CURRENT” will be set and the magnetron
current value will appear by the [MAG] bar-graph in the TEST
Menu.
Press again. “4.MAG CURRENT” will be set to
“ON” and the [MAG] indicator in the menu will disappear.
1 Press or .
The TEST Menu will be closed. If “4.MAG CURRENT” is set to “ON”, the status will be set to
“OFF” automatically.
TEST
0
Exit
4
4
TEST
Procedures
TEST
Exit
3
3
TEST
Procedures
TEST MENU
0.
EXIT
ARPA TEST
STATUS
4
45
40
35
NARROW
The setting conditions in other
menus will be displayed.
4.MAG CURRENT
OFF ON
OFF ON
TEST MENU
0.
EXIT
7.
1.
SELF CHECK
2.
PANEL TEST
3.
ARPA TEST
5.PM
6.
ERROR LOGGING
SYSTEM INFO
MAG
