FX-3R Maintenance Guide
13-22
13-4-7. MOUSE/KEYBOARD Selector (40003281)
[Functions]
This MOUSE/KEYBOARD selector is intended to switch between the keyboard and mouse
console.
[DIP switch settings]
The DIP switches have been set properly at the delivery of the machine. When setting the board
in the control unit, check the DIP switch settings. ( portions show the switch positions.)

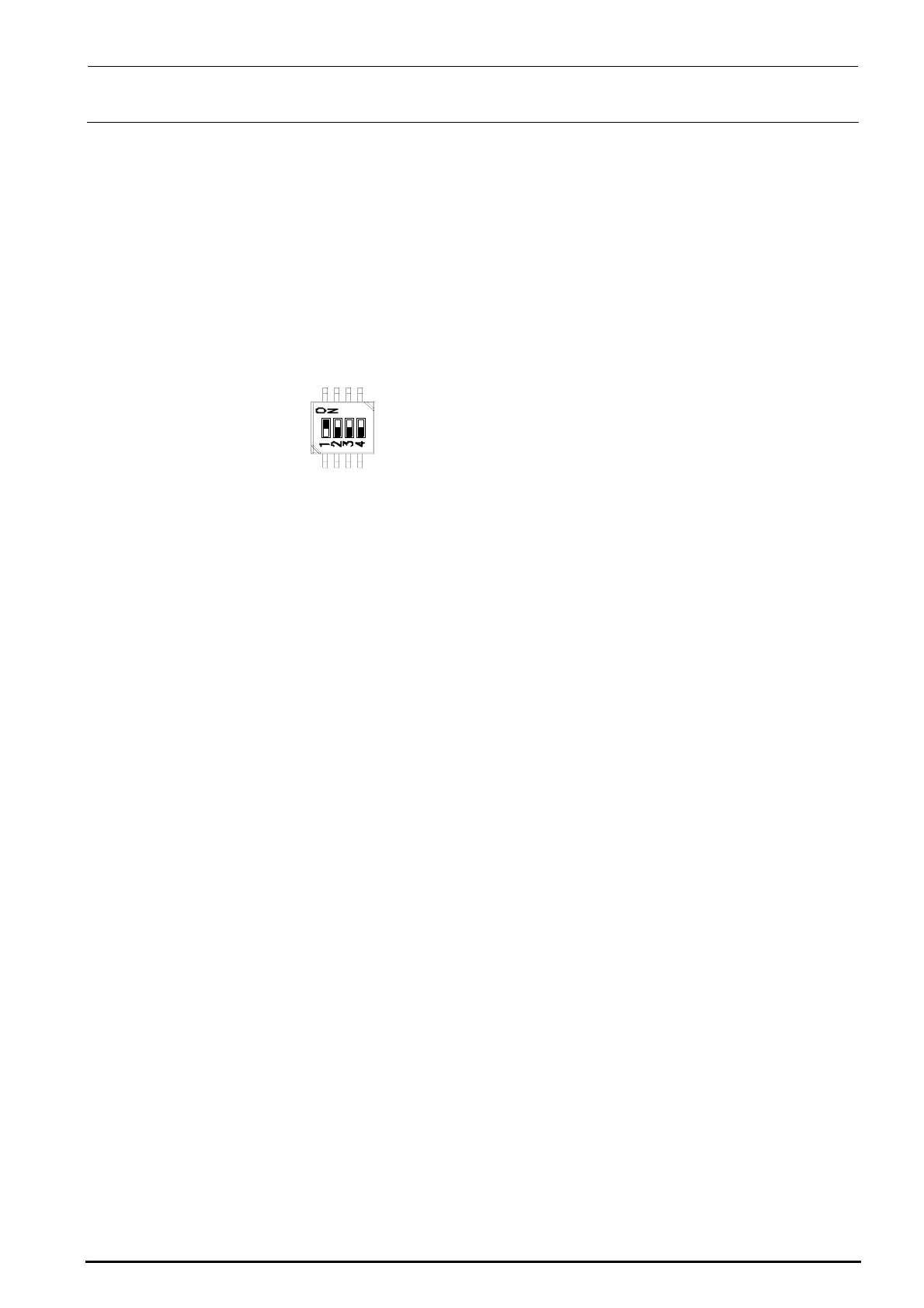

Figure 13-4-7-1 MOUSE/KEYBOARD SELECTOR DIP SW
SW-1 ：ON
SW-2 ：OFF
SW-3 ：OFF
SW-4 ：OFF
[Meaning of LED]
There are no LEDs on the MOUSE/KEYBOARD selector.
[Adjustment items after replacement]
There are no particular adjustment items.
Rev. 1.00
