FX-3R Maintenance Guide
15-8
Rev. 1.00
15-2-1. Assembling and Adjusting the Lower Discharge Guide
1) Assemble the bottom cover angle to the bottom of the cutter base and adjust the clearance in
the Z-direction between the bottom discharge guide and the bottom of the cutter base to 0.1 to
0.5 mm. Additionally, check that the bottom cover angle does not interfere with the cover FB_A.
If the adjustment allowance is insufficient, loosen the assembly screws of the cover
FB_A and cover FB_B to make the adjustment.

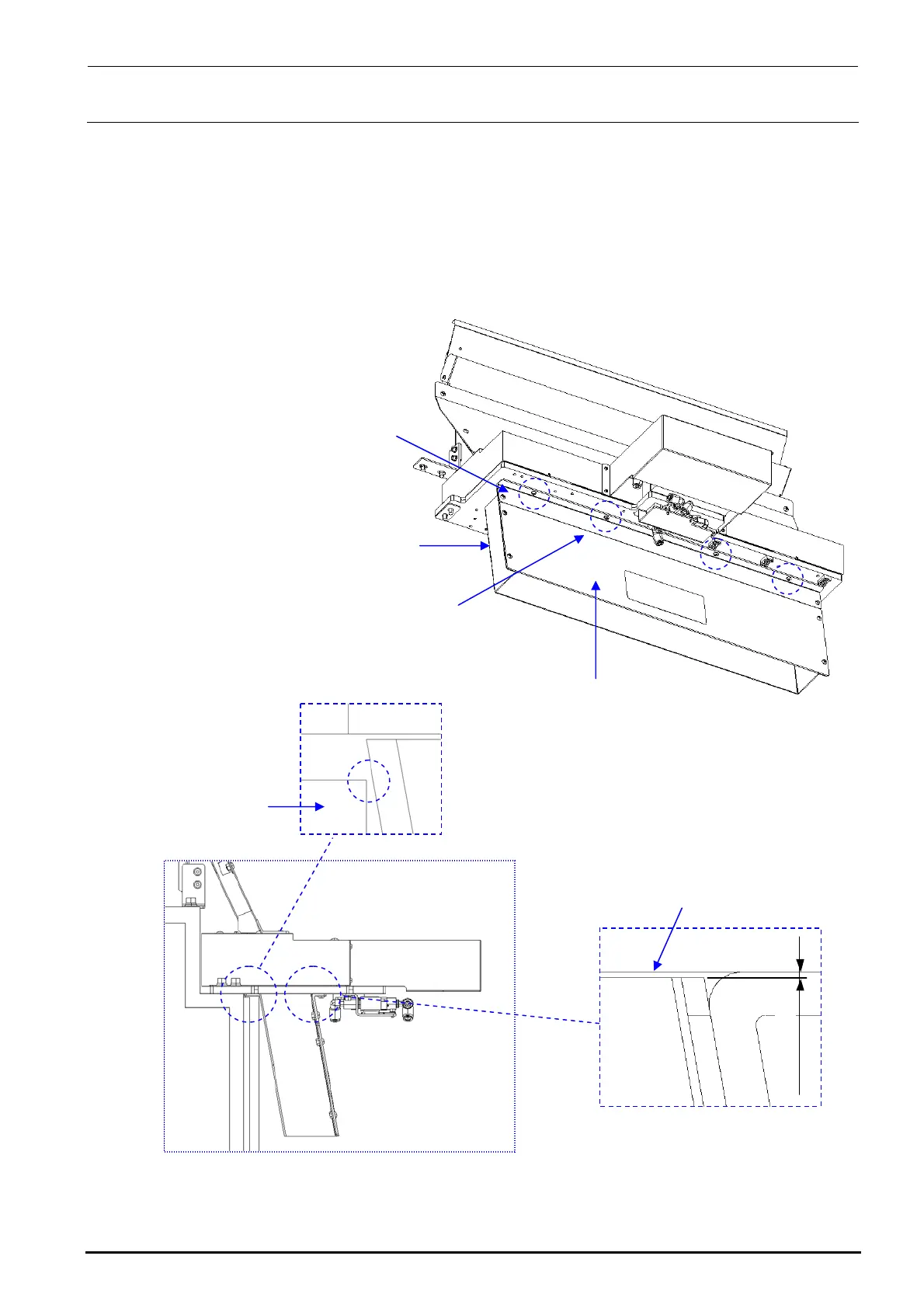

Figure 15-2-6 Adjustment of Lower Discharge Guide
40095334 Bottom cover angle
40095335 Bottom discharge cover A
40095333 Bottom discharge guide
SM3040652TN Round screw M4, L = 6
No interference
Cover FB_A
(Bottom cover of
main unit)
0.1~0.5m
m
Bottom of cutter base
0.1 to 0.5mm
