FX-3R Maintenance Guide
4-3
4-3. Replacing the OCC Coaxial/Angle Light Board Assemblies
1) Detach the light assembly from the XM base using the procedure described in section 4-1,
Replacing the OCC Assembly.
2) Remove the round head screws c (×2) to replace the OCC coaxial light board assembly.
3) Remove the SEMS cap bolts d (×4) to replace the OCC angle light board assembly.
4) Reassemble the components in the reverse order of disassembly.
5) After the OCC light board has been replaced, it is necessary to adjust the light filter U and OCC
light. (See 4-8, List of Readjustment Items after Replacement.)
c SL4030691SC
Round head screw M3×6
40047512
OCC C LIGHT board assembly
(coaxial)
40047508
OCC A LIGHT board assembly
(angle)
d SL6030892TN
SEMS cap bolt with washer
M3×8

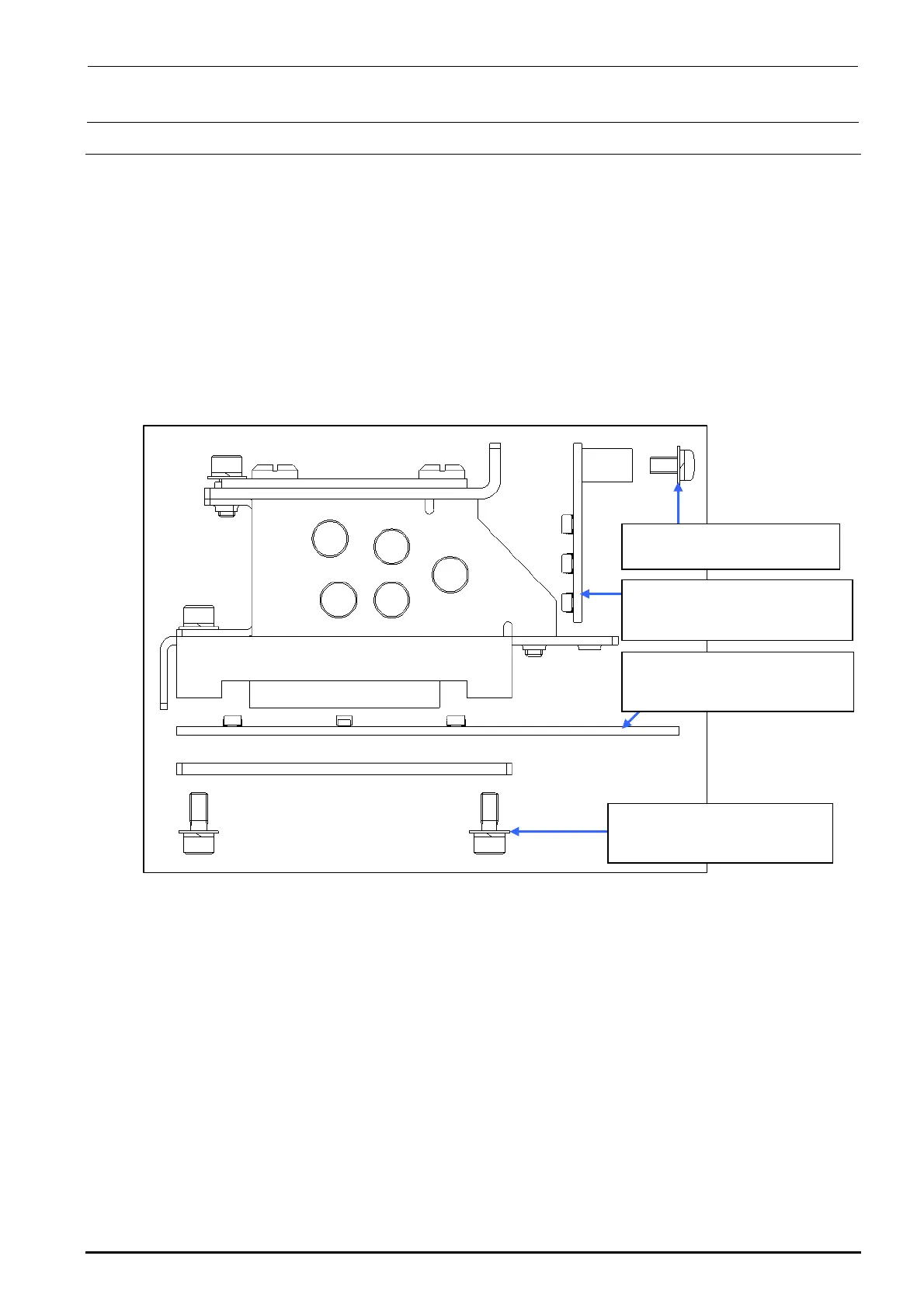

Figure 4-3-1 Replacing the OCC Coaxial/Angle Light Board Assembly
Rev. 1.00
