FX-3R Maintenance Guide
11-1
DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
[11] REPLACING AND ADJUSTING THE FEEDER FLOAT SENSOR
(1) In the FX-3R, the sensors are arranged as shown in the Figure below.
If the sensor is detached together with the bracket, it becomes necessary to adjust the sensor
height.
When replacing only the sensor, start the sensor replacement work from step (4).
Top view of mounter
Front
Rea
r
Rear left
Front right
Rear right
Rear left
Rear right
Front left
Front left Front right
Receiving
Emitting
Receiving
Emitting
Receiving
Emitting
Receiving
Emitting
Receiving
Emitting
Receiving
Emitting
Receiving
Emitting
Receiving
Emitting
(Outside of machin
(Transport passage si
e)
de)
(Transport passage si
(Outside of machin
de)
e)

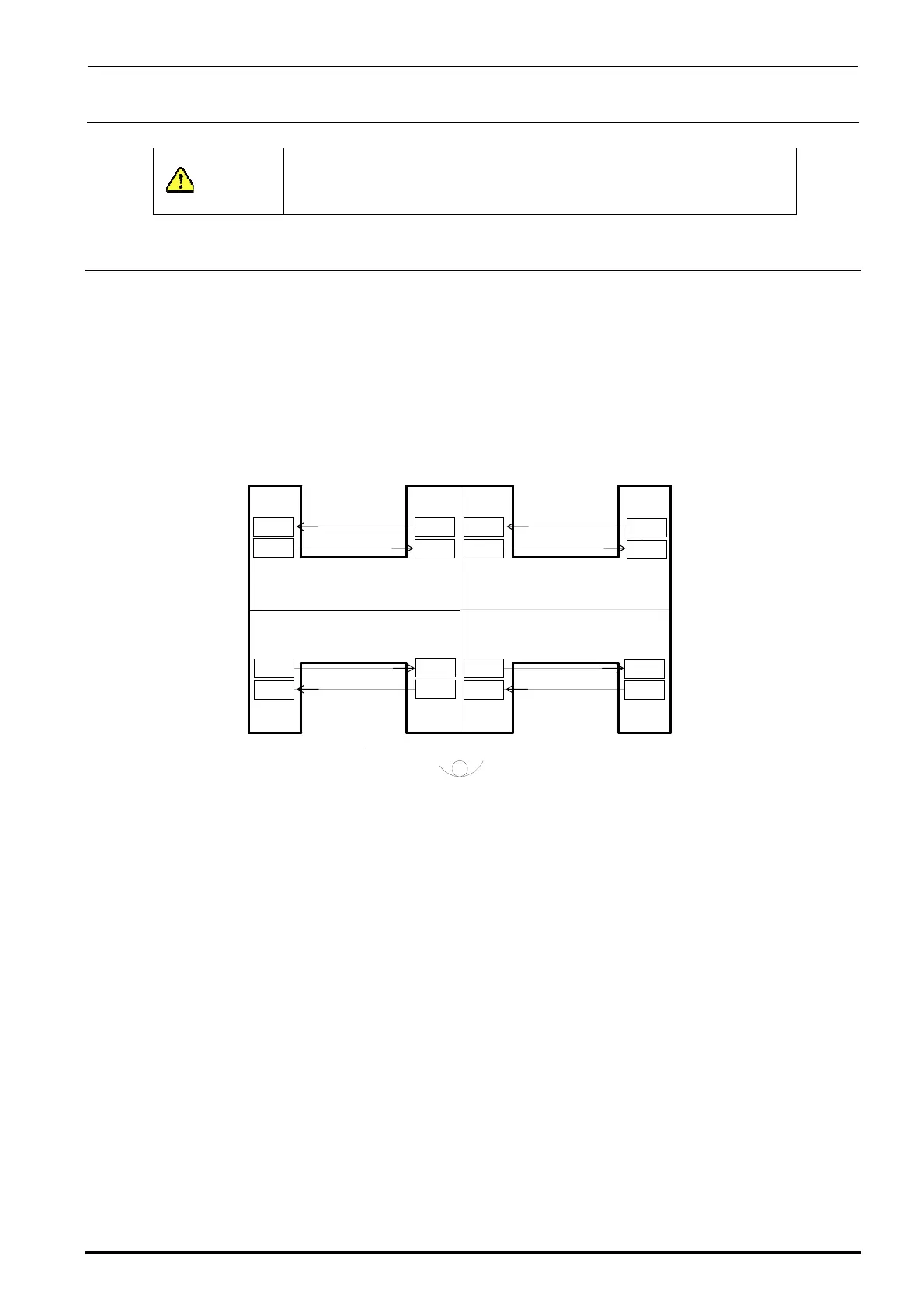

Figure 11-1 Layout of Feeder Float Sensors
Rev. 1.00
