JUKI FX-3R - Replacing the X-Axis Interference Sensor (Y-C Sensor)

FX-3R Maintenance Guide
1-7
Rev. 1.00
1-2-3. Replacing the X-axis Interference Sensor (Y-C Sensor)
(1) When the distance between each rubber stopper and the Y linear base becomes 5 mm, make
the adjustment so that each limit sensor is turned ON, and then secure each limit sensor with
the screws.

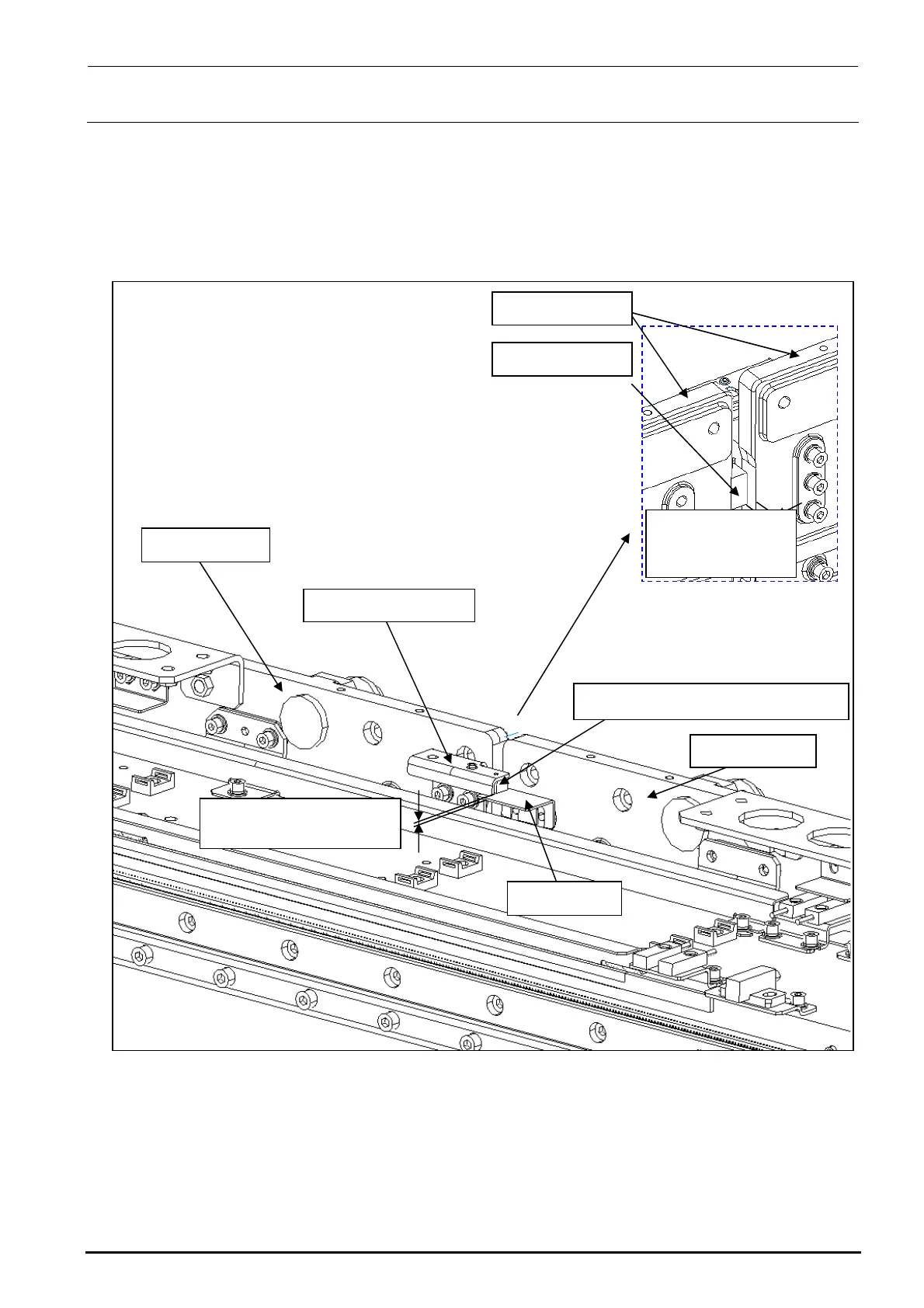

Figure 1-2-3-1 Replacing the X-axis Interference Sensor (Y-C Sensor)
Interference Sensor (Y-C Sensor)
Y-limit bracket YY
Y-limit dog
Y-linear base
Y-linear base
Clearance: 0.8 to 1.5
(Target value: 1.0 mm)
Figure when viewed
from opposite side
Y-linear base
Rubber stopper
Switch is turned
ON at a distance
of 5 mm.
