FX-3R Maintenance Guide
DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
[8] FEEDER BANK, REPLACEMENT TABLE AND ELECTRIC BANK
(OPTIONAL)
8-1. Common Parts and Units for Mechanical Feeder and Electric Feeder
8-1-1. Replacing the Bank-Up Cylinder
1) Turn off the power to the main unit.
2) Turn on the selector switch, and the left and right roller levers to raise the bank lifter.
3) Loosen the lifter cylinder shaft to detach the bank-up cylinder (cylinder to be replaced).
4) Shut-down the main compressed air to the main unit (with the hand valve).
5) Remove the lifter supporter assembly mounting screws.
6) Pull out the bank lifter upward. (Bank lifter to be replaced)
7) Remove four bank-up cylinder mounting screws to detach the cylinder.
8) Mount the speed controller on a new cylinder.
9) Mount the cylinder and insert the bank lifter from the top.
10) Screw the lifter cylinder shaft into the cylinder rod.
11) Mount the lifter supporter.
12) Supply the main compressed air to the main unit.
13) Adjust the speed controllers of the left and right cylinders.
(Section 8-6.)
14) Mount the replacement table on the main unit.
15) Turn on the power.
8-1
Rev. 1.00
40047264
Bank lifter RS
40047265
Bank lifter LS
40047263
Lifter cylinder shaft 85
40047261
Lifter guide shaft 25
PA630850100
Air cylinder

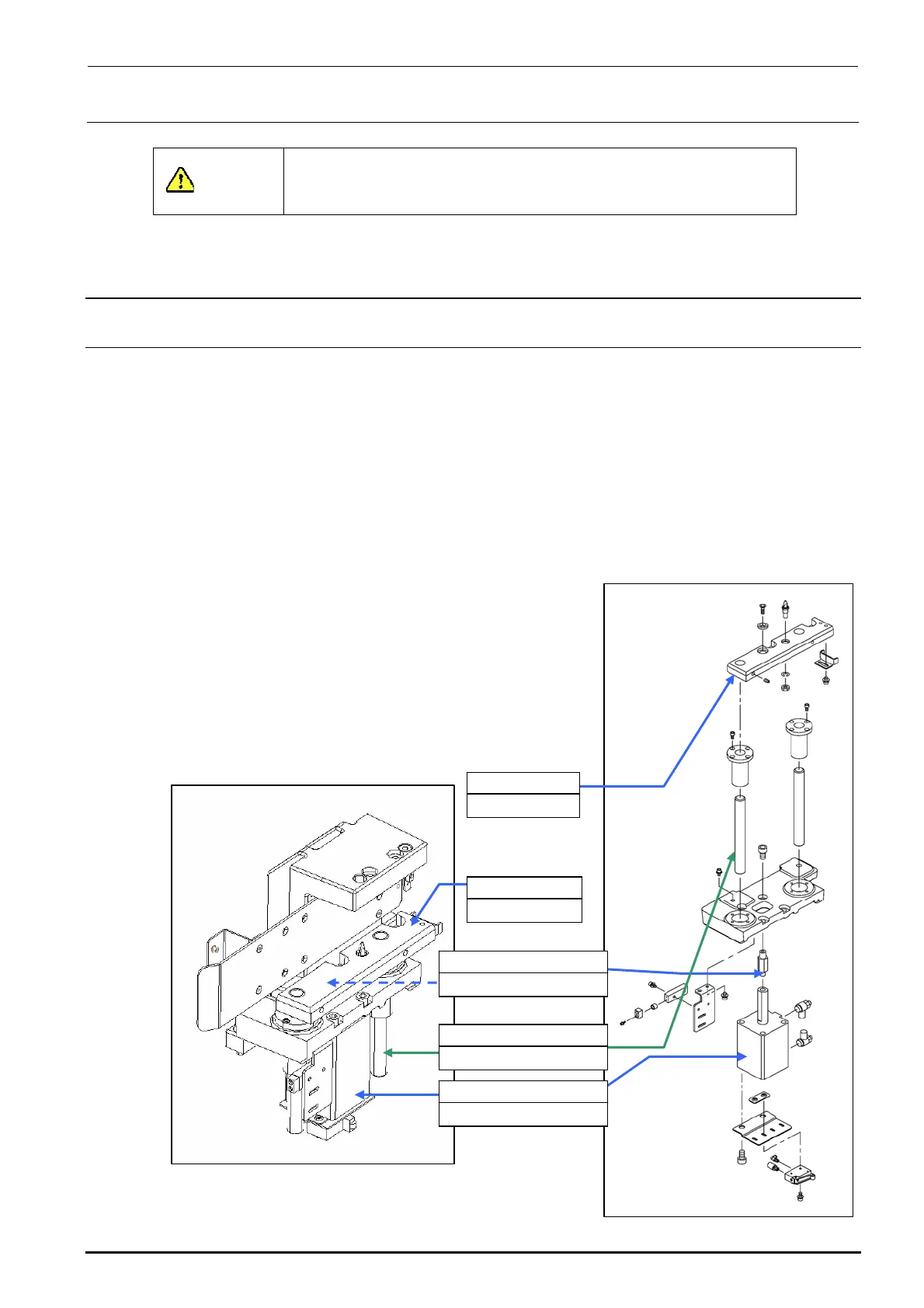

Figure 8-1-1-1 Back-Up Cylinder Related Parts
Figure 8-1-1-2 Lifter Supporter
To Next Page
