FX-3R Maintenance Guide
4-2
4-2. Replacing the CCD Camera and Lens
1) Detach the lens assembly from the XM base A (B) using the procedure described in section
4-1, Replacing the OCC Assembly.
2) Remove the SEMS cap bolts c (×2) and SEMS cap bolts d (×2) securing the CCD camera and
lens to replace the CCD camera and lens assembly.
(At this time, apply ThreeBond 1401B to the screw thread parts of the lens assembly.)
3) Reassemble the components in the reverse order of disassembly. The camera mounting
orientation may vary depending on the type of the head.
(Apply Loctite 242 to the SEMS cap bolts c (×2), and then fix them with a tightening torque of
1.0N⋅m.)
4) After the CCD camera and lens have been replaced, adjust the focus and input the MS
parameters. (See 4-8, List of Readjustment Items after Replacement.)
d SM6020302UZ
SEMS cap bolt M2×3
c SL6041292TN
SEMS cap bolt with washer
M4×12
Rev. 1.00
Camera securing orientation
Label surface
Screw mounting direction
Rea
Left station
Label surface
Label surface
Label surface
Screw mounting direction
Screw mounting direction
Screw mounting direction
Right station
Front

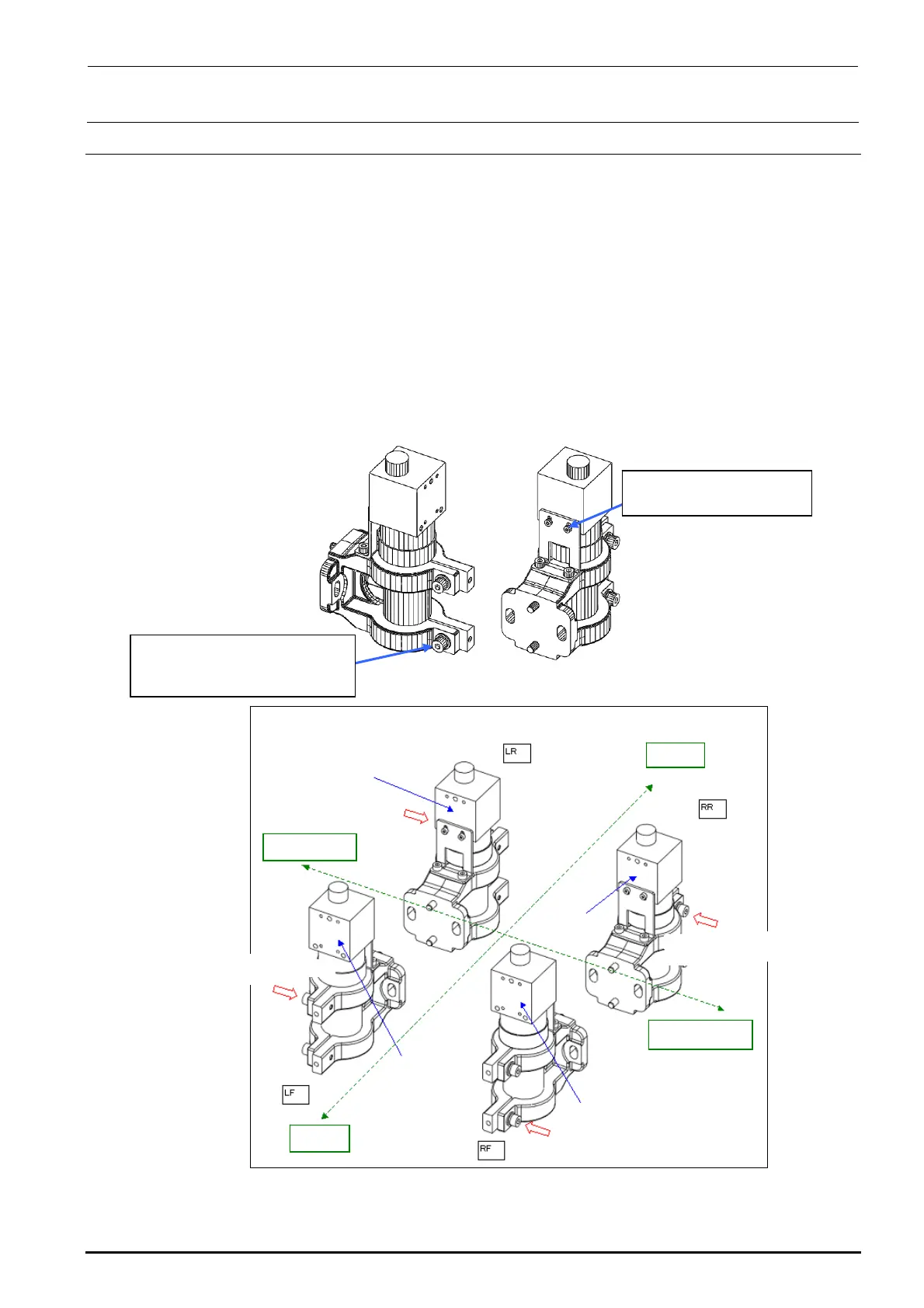

Figure 4-2-1 CCD Camera/Lens
To Next Page
