FX-3R Maintenance Guide
13-23
[Replacement procedure]
c Before starting the replacement work, always turn OFF the main power, main circuit breaker,
and main switch.
d Remove the bolts (SL6061292, 2 pcs.) to detach the MOUSE/KEYBOARD SELECTOR from
the MK_SELECTOR_BRACKET located on the right side of the control box and replace it
with a new one.
e After MK_SELECTOR_BRACKET has been taken out, remove SL4030691SC (4 pcs.) to
detach the KEYBOARD/MOUSE selector (40003281).
f Replace the detached MOUSE/KEYBOARD selector with a new one and reassemble the
parts and components in the reverse order of disassembly.
MK_SELECTOR_BRACKET
SL4030691SC ×4
SL6061292TN
2
MOUSE/KEYBOARD SELECTOR

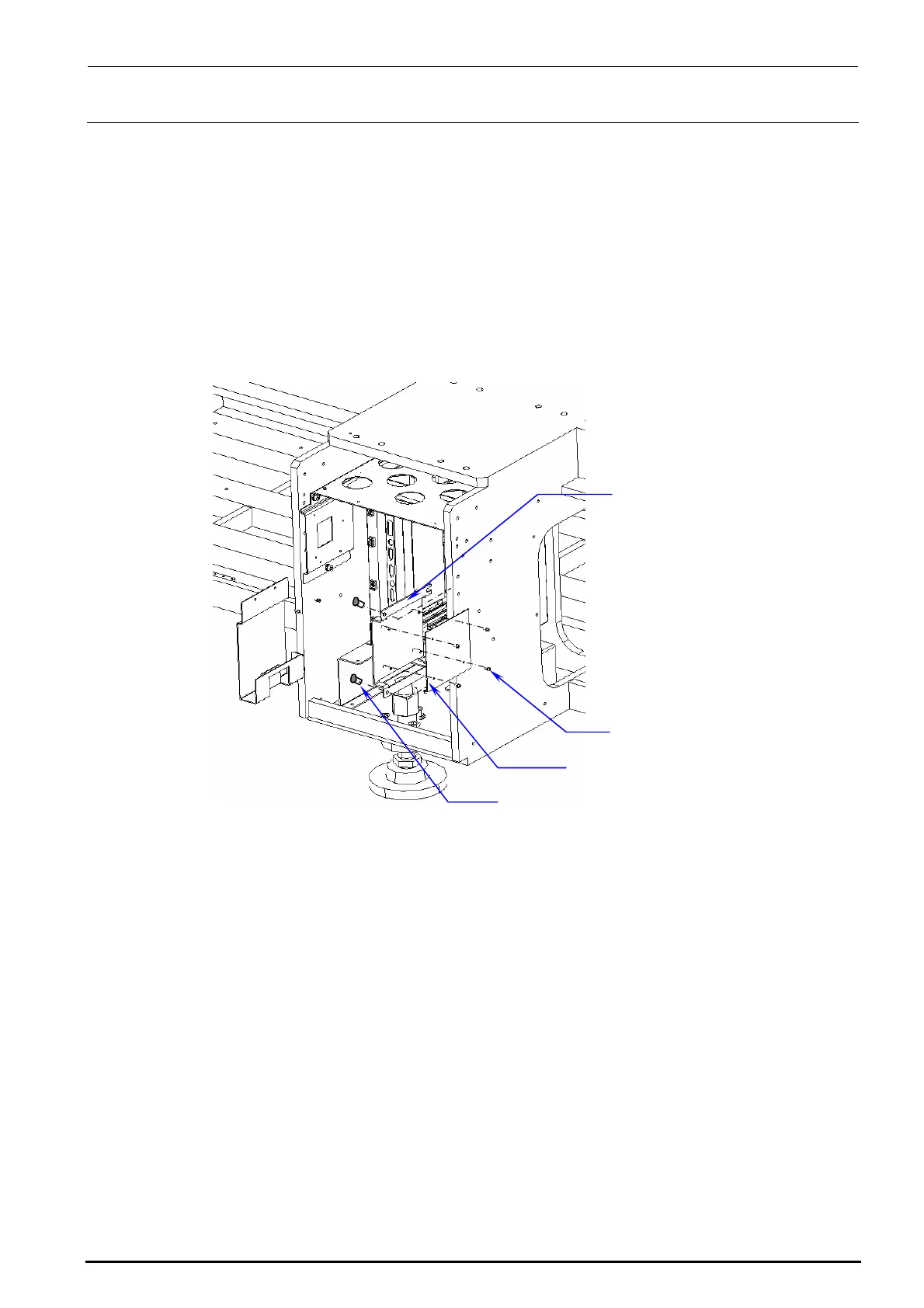

Figure 13-4-7-2 Control Unit
