FX-3R Maintenance Guide
1-6
1-2-2. Replacing the Y +Limit Sensor and YB-Near Sensor
(1) When the distance between each rubber stopper and the Y linear base becomes 5 mm, make
the adjustment so that each limit sensor is turned ON, and then secure each limit sensor with
the screws.
YB NEAR SENSOR
Y LINEAR BASE
Y +LIMIT SENSOR
(Since two X-beams are provided on
the Y-axis, Y +LIMIT SENSOR is
mounted at two locations.)
RUBBER STOPPER

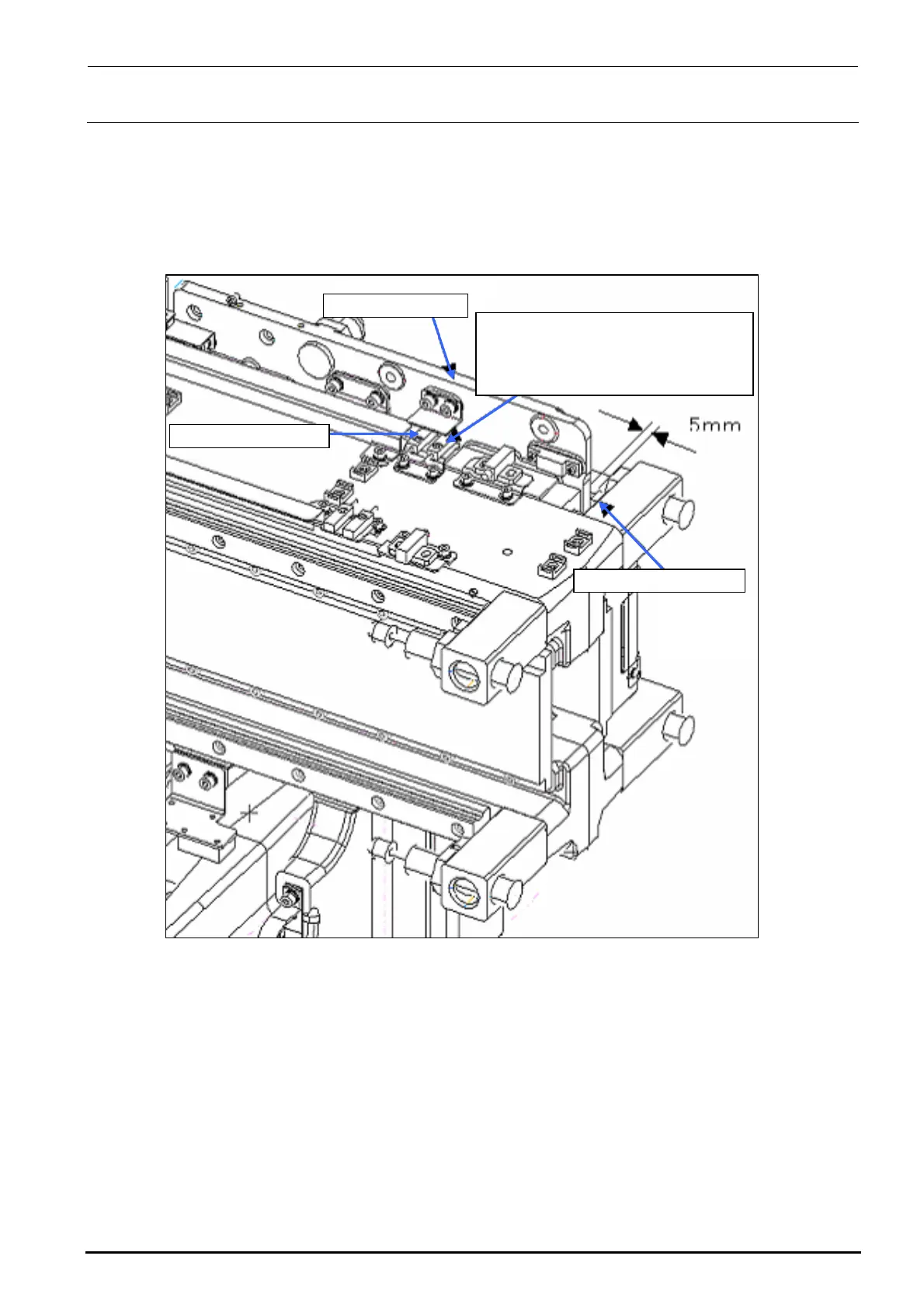

Figure 1-2-2-1 Replacing the Y +Limit Sensor and YB-Near Sensor
