FX-3R Maintenance Guide
13-20
13-4-5. ETHER-MAIN Board (40048066)
[Functions]
This ETHER-MAIN board is a host board used to communicate with the ETHER-SLAVE board
through the Ethernet.
The board is connected to the Compact PCI (hereafter referred to as “cPCI”) bus so as to
access each peripheral I/O from the CPU board. Additionally, the MS parameter backup data is
saved into the FLASH ROM.
[DIP switch settings]
The DIP switches have been set properly at the delivery of the machine. When setting the board
in the control unit, check the DIP switch settings. ( portions show the switch positions.)
SW2-1 ：OFF
SW2-2 ：ON
SW2-3 ：OFF
SW2-4 ：OFF
SW2-5 ：ON
SW2-6 ：ON
SW2-7 ：ON
SW2-8 ：ON
SW4-1 ：OFF
SW4-2 ：OFF
SW4-3 ：OFF
SW4-4 ：OFF
SW4-5 ：OFF
SW4-6 ：OFF
SW4-7 ：OFF
SW4-8 ：OFF
SW1-1 ：OFF
SW1-2 ：OFF
SW1-3 ：ON
SW1-4 ：OFF
SW5：OFF
Note) SW5 is not mounted
on the board
(40048066).

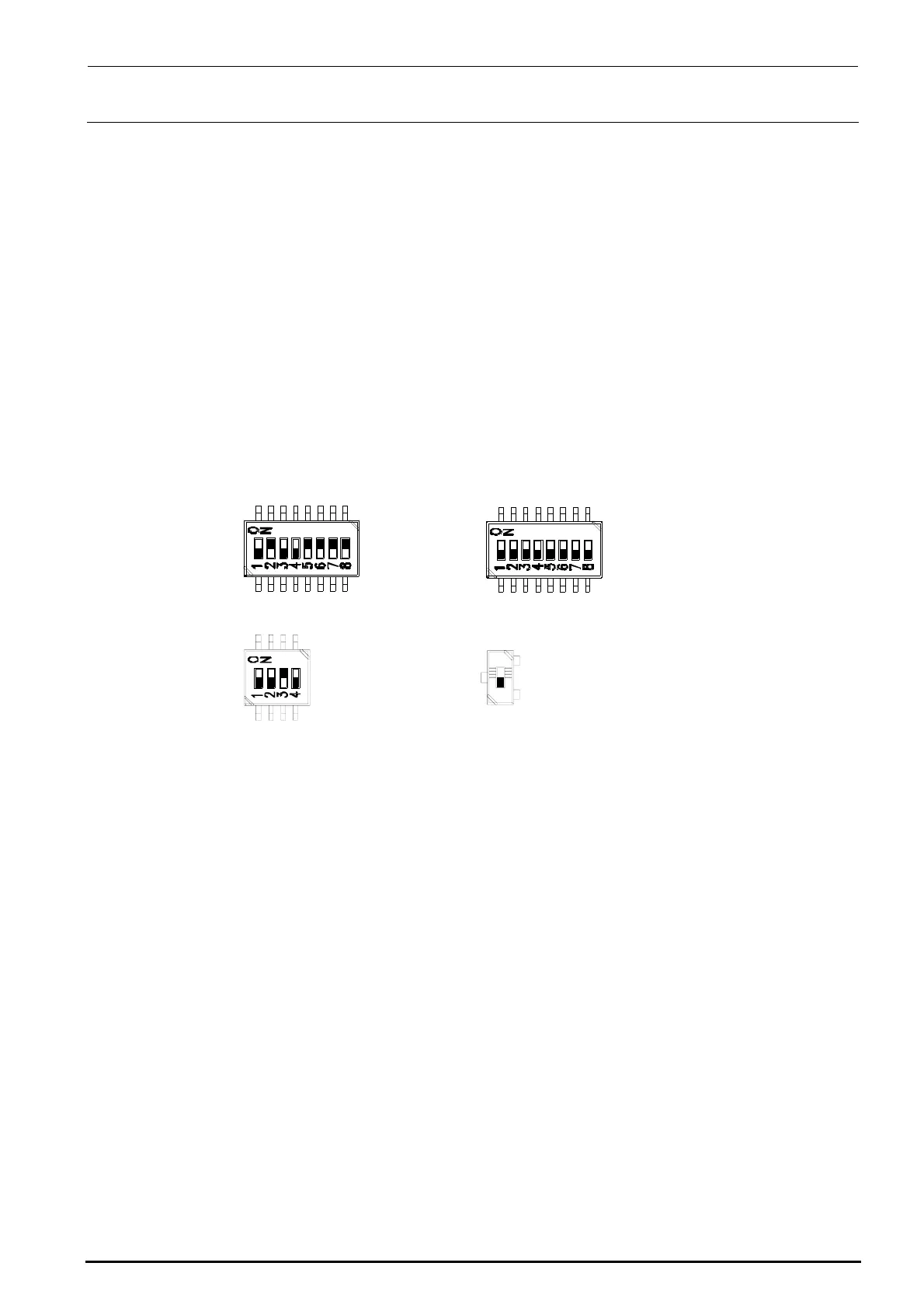

Figure 13-4-5-1 DIP switches on ETHER-MAIN Board Assembly
[Meaning of LED]
7-segment LED: Shows the operation status of this board.
RUN LED: Lights up when the power is supplied.
EN1: Shows Link/Act of EN1. EN1 → Left station
EN2: Shows Link/Act of EN2. EN2 → Right station
EN3: Shows Link/Act of EN3. EN3 → XY-RELAY board – BASE CARRY board –
FEEDER board
EN4: Shows Link/Act of EN4.
[Adjustment items after replacement]
After that, follow the steps below to update the FLASH memory.
c Select [Options] and [Change User Group], and then select [Serviceman].
d Select [Maintenance] and [MS Parameter Setup].
e Select [Upgrade] and [Ether Main].
f Clicking [Exec.] will start the upgrading process.
Rev. 1.00
