FX-3R Maintenance Guide
8-3
Rev. 1.00
8-1-4. Replacing the Selector Switch (Optional Replacement Table)
1) Shut-down the main compressed air to the main unit (with the hand valve).
2) Turn the selector switch cap counterclockwise to detach the selector switch from the cover.
3) Mount the half-union and silencer on a new selector switch and secure the selector switch to
the cover with the cap.
4) Supply the main compressed air to the main unit.

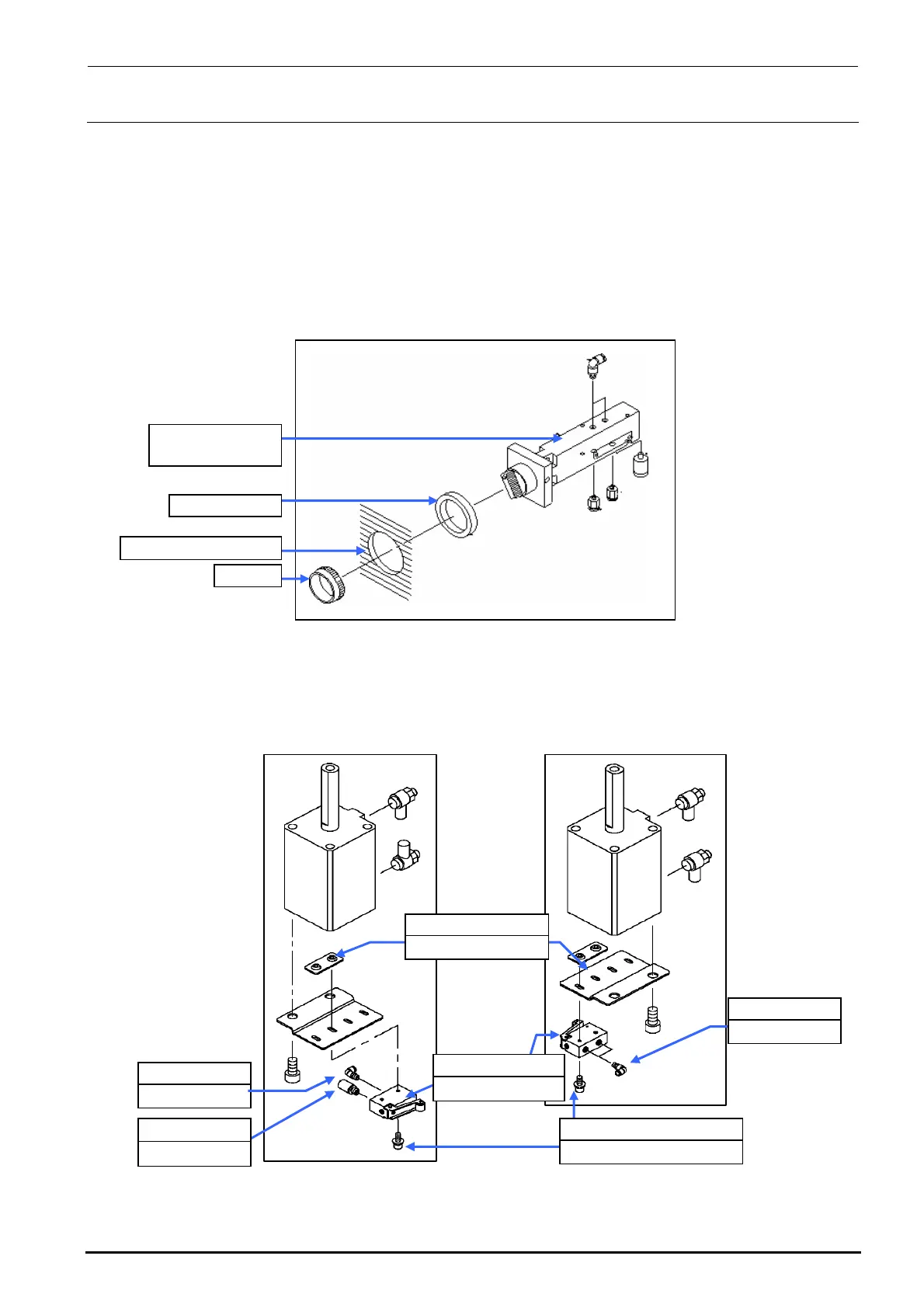

Figure 8-1-4-1 Selector Switch Assembly (40000585)
8-1-5. Replacing the Roller Lever (Optional Replacement Table)
Before replacing the roller lever, always shut-down the main compressed air.
Cap
Cover mounting hole
Rubber, 3 pcs.
PV0151170A0
Selector switch
PJ304040505
Elbow union
E2811729000
Valve nut plate
PV010505000
Mechanical valve
PJ304040505
Elbow union
PX050501000
Silencer
Roller lever assembly
with silencer
Roller lever assembly
with elbows at both ends
SL6042592TN
SEMS cap bolt M4×25
Figure 8-1-5-1 Roller Lever
To Next Page
