FX-3R Maintenance Guide
8-4
8-1-6. Replacing the Cables and Connectors of Replacement Table (For Intelli trolley)
1) Replacing the connector (HK065120060)
c Before replacing the connector, disconnect the cable connected to both ends of the
connector.
Connector
HK065120060
Portion A

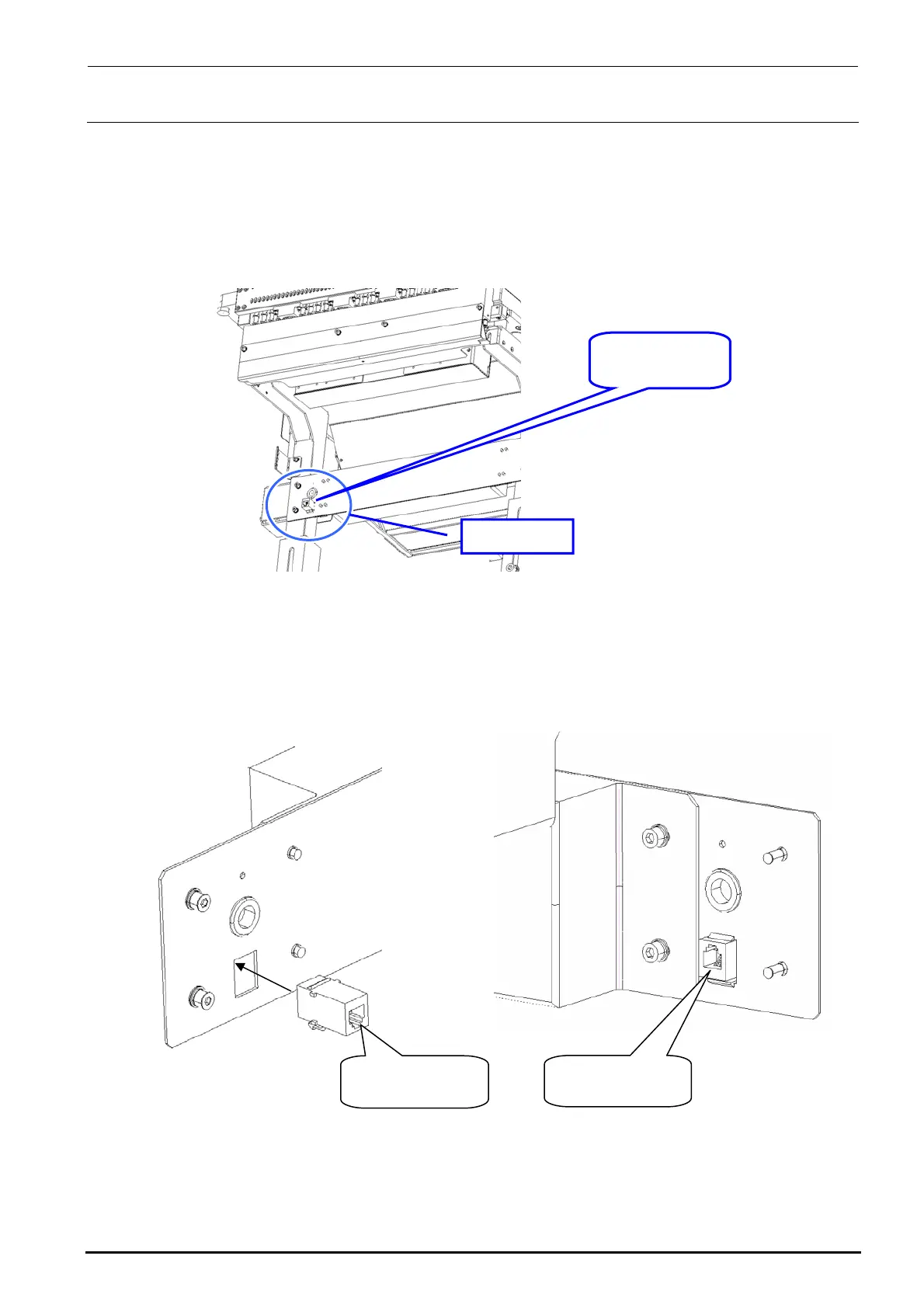

Figure 8-1-6-1 Replacement Table when Viewed from Mounter
(From Obliquely downward View Field)
d When mounting the connector, pay special attention to its orientation as shown in the Figure
below.
Mounter side
Lock part faces
downwa
d.
Rear side
Lock part faces
u
ward.
Figure 8-1-6-2 Enlarged Drawing of Portion A
e Connect the cable to both ends of the connector. (The connector on the mounter side is
located on the OUT side.)
Rev. 1.00
To Next Page
