Fixed electric bank is mounted.
1) Assemble the bottom discharge guide (EO) to the main unit bottom cover (cover FB_A),
adjust the clearance in the Y-direction between the bottom discharge guide and the opening
in the cutter base to 0 to 0.5 mm, and adjust the clearance in the Z-direction between the
bottom discharge guide and the bottom of the cutter base to 0 to 0.3 mm.
∗ If the adjustment allowance is insufficient, loosen the assembly screws of the cover
FB_A and cover FB_B to make the adjustment.
2) Assemble the bottom cover angle to the bottom of the cutter base.
3) Assemble the bottom discharge cover (EO) to the bottom discharge guide (EO) and joint
angle. Additionally, adjust the clearance between the bottom discharge cover and bottom
cover angle to 0.15 to 0.2 mm.

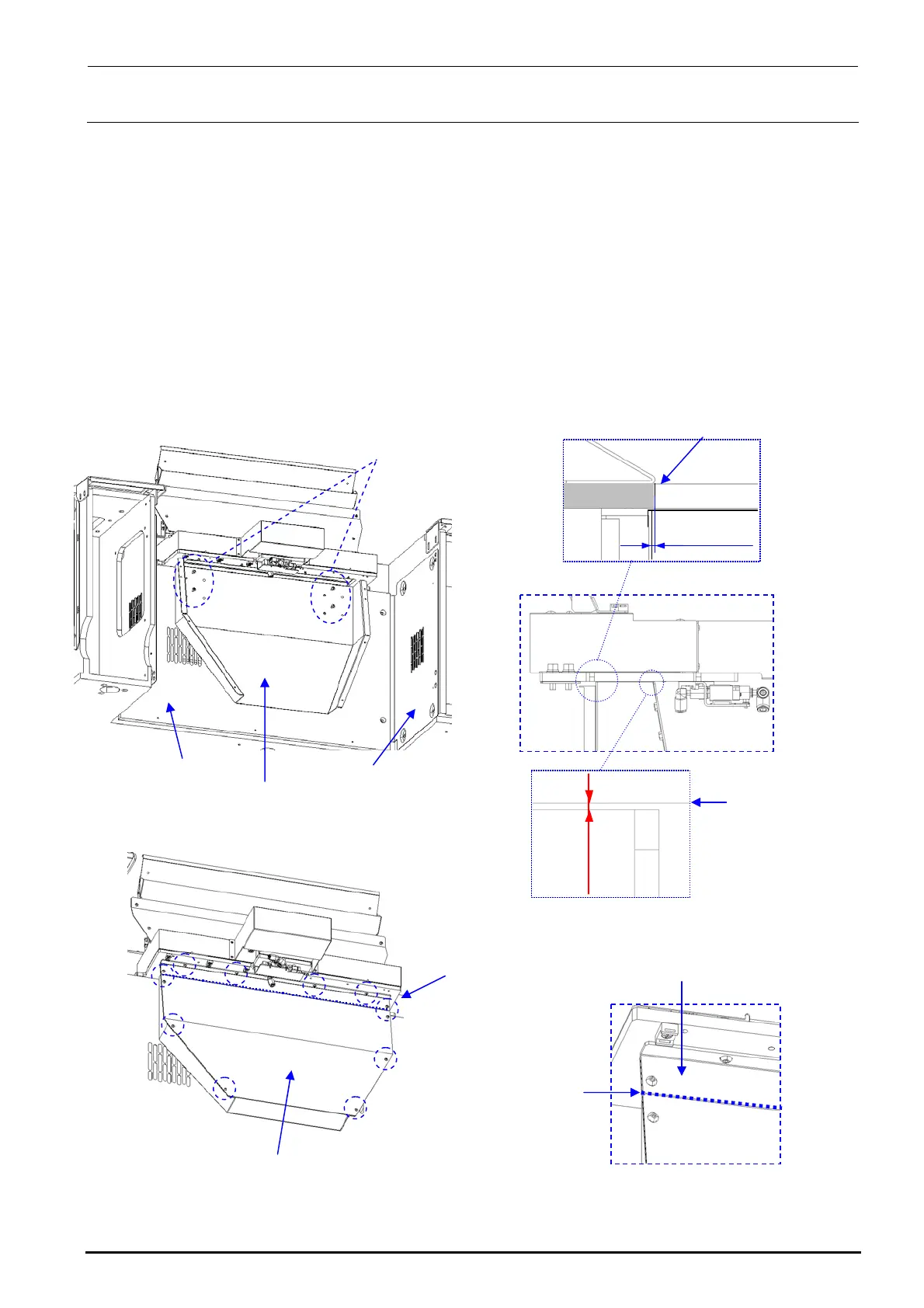

Figure 15-2-7 Adjustment of Bottom Discharge Guide (Fixed Electric Bank)
0 to 0.5mm
0～0.3mm
40095360 Bottom discharge guide (EO)
SM3051052TN
Round screw
M5, L = 10
Cover FB_B
Cover FB_A
Cross-section of
opening in cutter base
Bottom of cutter base
SM3051052TN
Round screw M5,
L = 10
40095361 Bottom discharge cover (EO)
40095334 Bottom cover angle
Clearance:
0.15 to 0.2mm
0 to 0.3mm
