FX-3R Maintenance Guide
13-50

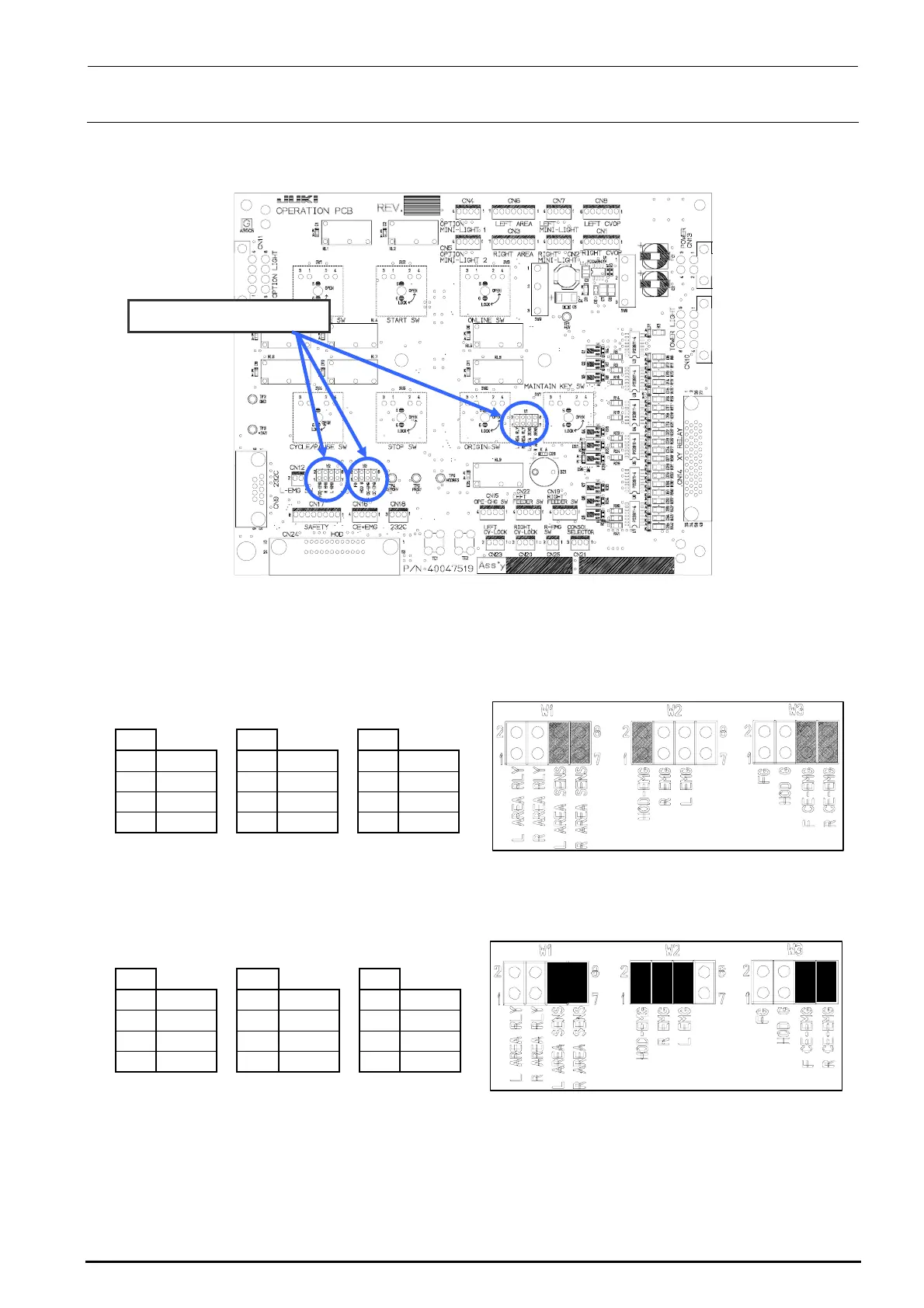

d Operation board (EN) jumper switch settings
Check W1, W2, and W3.
• Jumper switch setting (front)
W1
W2 W3
1-2
Open
1-2
Short
1-2
Open
3-4
Open
3-4
Open
3-4
Open
5-6
Short
5-6
Open
5-6
Short
7-8
Short
7-8
Open
7-8
Short
Mount receptacles at the ■ portions of the straight headers W1, W2, and W3 to make them short-circuited.
• Jumper switch setting (rear)
W1 W2 W3
1-2
Open
1-2
Short
1-2
Open
3-4
Open
3-4
Short
3-4
Open
5-6
Short
5-6
Short
5-6
Short
7-8
Short
7-8
Open
7-8
Short
Mount receptacles at the ■ portions of the straight headers W1, W2, and W3 to make them short-circuited.
Figure 13-9-2-2 Operation board (EN specification) jumper switch settings
