JUKI FX-3R User Manual

FX-3R Maintenance Guide
14-3
Structure of components inside FPI (Rear)
The following Figure shows the structure drawing of the LR. The FPI cable running direction is
reversed in the structure drawing of the RR.
E6066729000
FPIｶﾊﾞｰU30 1ヶ
SM6030402TN
M3×4 2ヶ
WP0320501SC
平座金M3 2ヶ
40047371
FPIﾌﾞﾗｹｯﾄ 1ヶ
SM5030801SC
M3×8 6ヶ
E4901760000
ﾎﾟﾘｽﾗｲﾀﾞｽﾗｽﾄﾜｯｼｬ 6ヶ
E2143715000
ﾀｲﾏｽﾍﾟｰｻ 6ヶ
E86267290A0
FPI LED基板ｸﾐ 3ヶ
E6065729000
FPIｶﾊﾞｰB30 1ヶ
SM6030402TN
M3×4 2ヶ
SM6030402TN
M3×4 4ヶ
WP0320501SC
平座金M3 2ヶ
E6068729000
ﾊｰﾈｽｸﾗﾝﾌﾟ 3ヶ
WP0320501SC
平座金M3 3ヶ
SM6030402TN
M3×4 3ヶ
CN561
CN551
CN541
40048173
FPI LEDｹｰﾌﾞﾙ2(R)ｸﾐ 1ヶ
40048172
FPI LEDｹｰﾌﾞﾙ1(R)ｸﾐ 1ヶ
Flat washer M3, 2 pcs.
M3 × 4, 2 pcs.
FPI bracket
,
1
p
c.
FPI LED board assembly, 3 pcs.
FPI cover U30, 1 pc.
M3 × 4, 2 pcs.
Flat washer M3, 2 pcs.
M3 × 8, 6 pcs.
Plastic slider thrust washer, 6 pcs.
Timer spacer, 6 pcs.
FPI LED cable 2 (R) assembly, 1 pc.
Harness clamp, 3 pcs.
Flat washer M3, 3 pcs.
M3
×
4, 3 pcs.
FPI cover B30, 1 pc.
M3 × 4, 4 pcs.
FPI LED cable 1 (R) assembly, 1 pc.

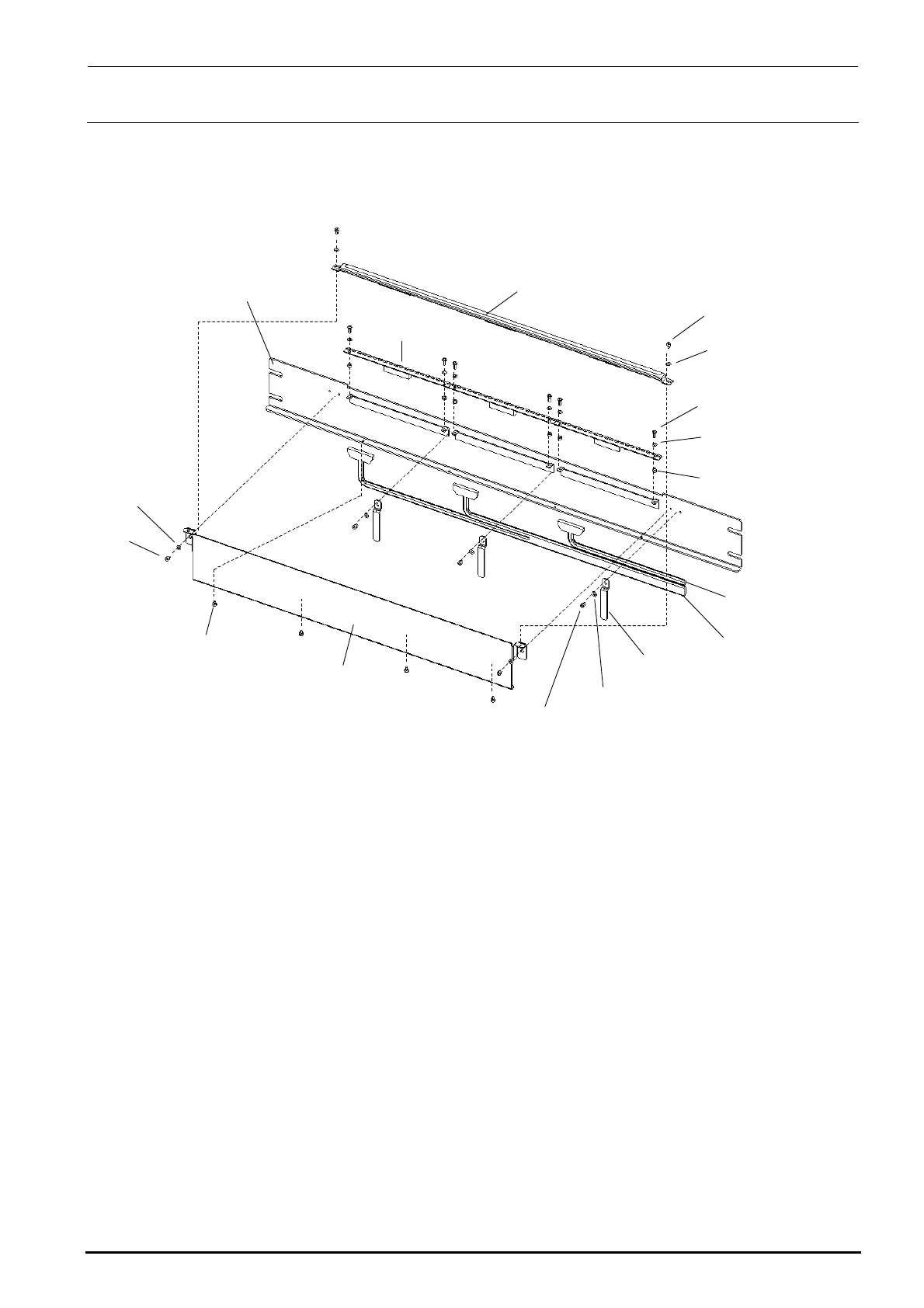

Figure 14-1-2 Internal Structure of FPI (Rear)
Rev. 1.00
