FX-3R Maintenance Guide
5-24
Rev. 1.00
(3) Replacement procedure
The barcode reader (HX006100000) has been assembled to the PWB transport inlet as shown in
the Figure below.
(This Figure shows the left right transport machine. For the right left transport machine,
the barcode reader is assembled to a position opposite to that shown in this Figure.)

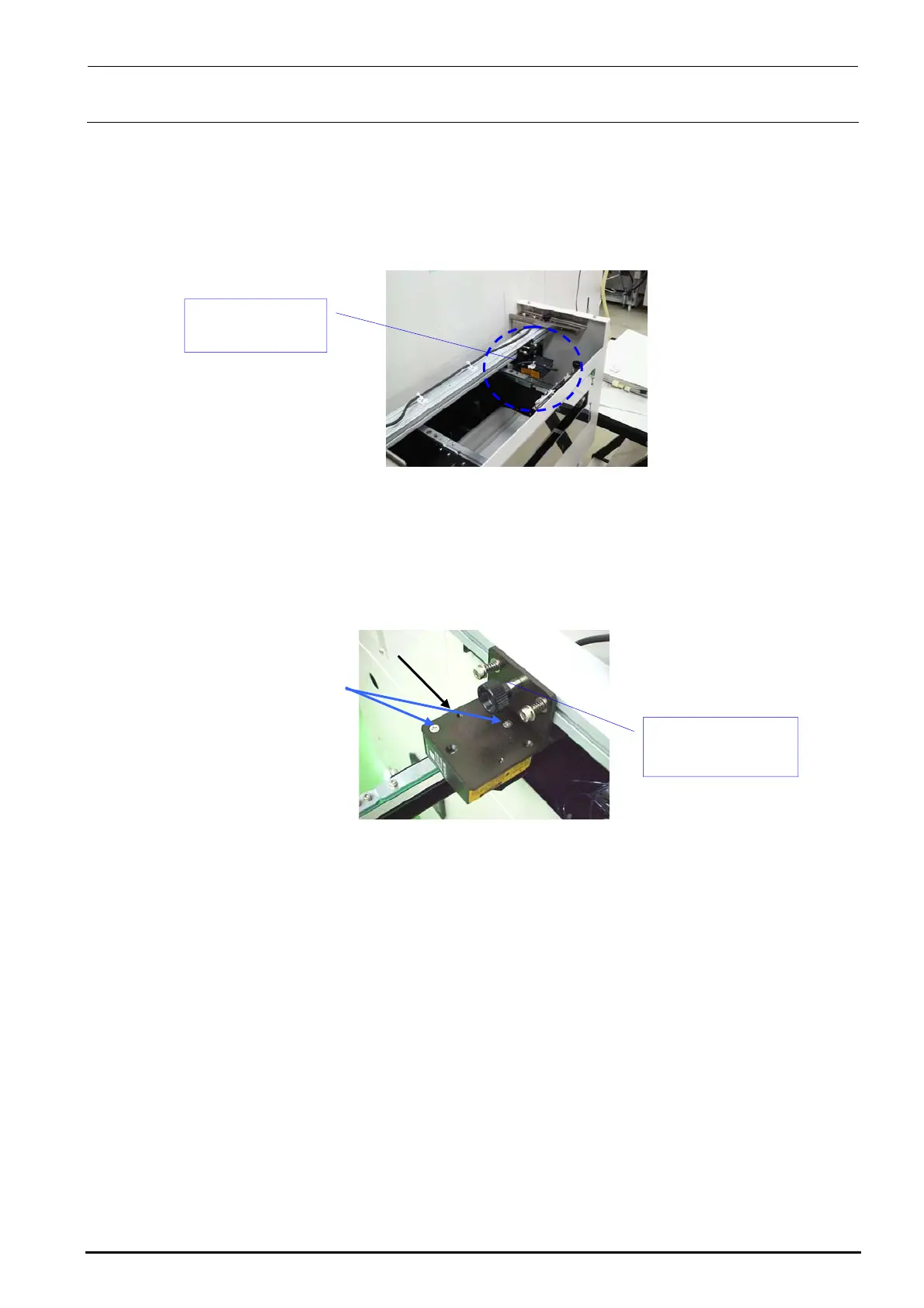

Figure 5-15-1
1) Remove the flat head screws e (2 pcs.) to detach the BARCODE READER d from the
ROTARY PLATE c.
Figure 5-15-2
2) Cut the tie-up band bundling the barcode reader cables.
Barcode reader
(HX006100000)
e
c
d Barcode reader
(HX006100000)
