FX-3R Maintenance Guide
8-7
3) When mounting the antenna array, mount it so that the positional relationship is as follows.
Note that it is not allowed to reuse the conductive tape (HX002680000).
UP
Tightening direction
Make the tape matched
with the lower end position.
Shield bracket 60
40081207
Antenna array
40073664
Conductive tape
HX002680000

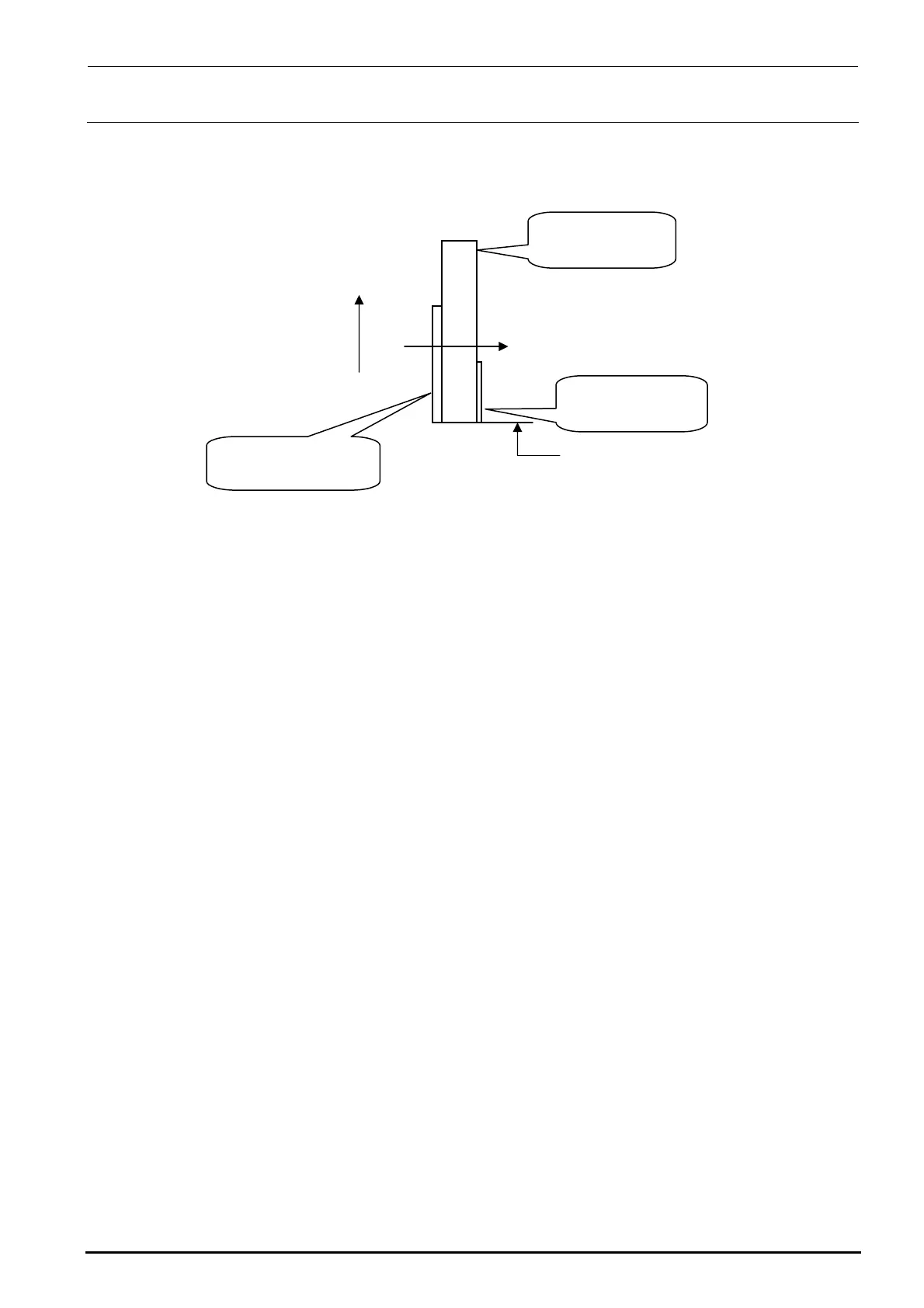

Figure 8-1-7-3 Cautions on Antenna Array Assembly
4) After the replacement has been completed, connect the antenna to the mounter or Intelli trolley
pool and make sure that the CH∗ LED on the MPC connected flashes.
Rev. 1.00
