Ejector lever
3—
MIC slots covered by cover panels
2—
Line card LED
You can use the show version command to see the version of Junos OS for EX Series switches loaded on
the switch.
Line Card Components
The EX9200-MPC line card has:
• Two slots that can accept any of the following MICs:
• EX9200-10XS-MIC, which has ten 10-Gigabit Ethernet ports, each of which can house small
form-factor pluggable plus (SFP+) transceivers. The ports form one port group. The ports support
10GBASE-SR, 10GBASE-LR, 10GBASE-ER, and 10GBASE-ZR transceivers. An LED labeled OK/
FAIL on the MIC indicates the status of the MIC. See
Modular Interface Card LED in an EX9200
Switch
. The MIC is shipped with 10 dust covers for the 10 ports. See Figure 30 on page 92.

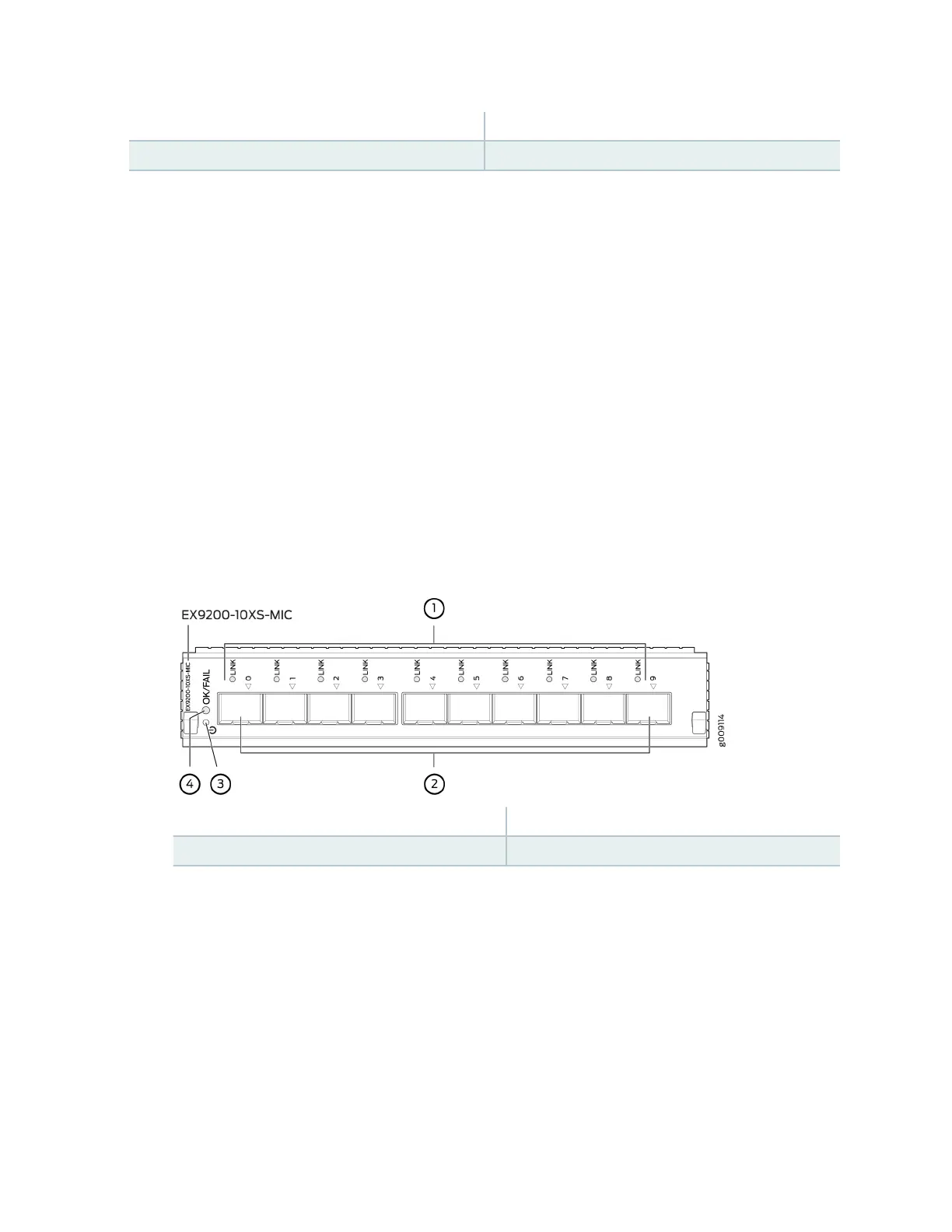

Figure 30: EX9200-10XS-MIC
1
— LEDs for the ports 3— MIC power buon
2— 10-Gigabit Ethernet ports 4— MIC LED
• EX9200-20F-MIC, which has twenty 1-Gigabit Ethernet ports with Media Access Control Security
(MACsec) capability, each of which can house 1-gigabit small form-factor pluggable (SFP)
transceivers. The EX9200-20F-MIC in EX9200-MPC line card supports 802.1AE IEEE MAC
Security standard (also known as MACsec) with AES-128 bit encrypon, providing support for
link-layer data condenality, data integrity, and data origin authencaon. You must apply a
single license—EX9200-SFL—to enable MACsec. The ports are divided into two port groups of ten
ports each. The ports labeled [0/2]/0 through [0/2]/8 and [1/3]/0 through [1/3]/8 form one port
group and the ports labeled [0/2]/1 through [0/2]/9 and [1/3]/1 through [1/3]/9 form another
port group. These ports support 1000BASE-T, 1000BASE-SX, 100BASE-FX, 1000BASE-LX,
1000BASE-BX-U, 1000BASE-BX-D, 100BASE-BX-U, 100BASE-BX-D, and 1000BASE-LH
