Fan Tray
The cooling system components work together to keep all switch components within the acceptable
temperature range. See Figure 15 on page 41 and Figure 16 on page 41.

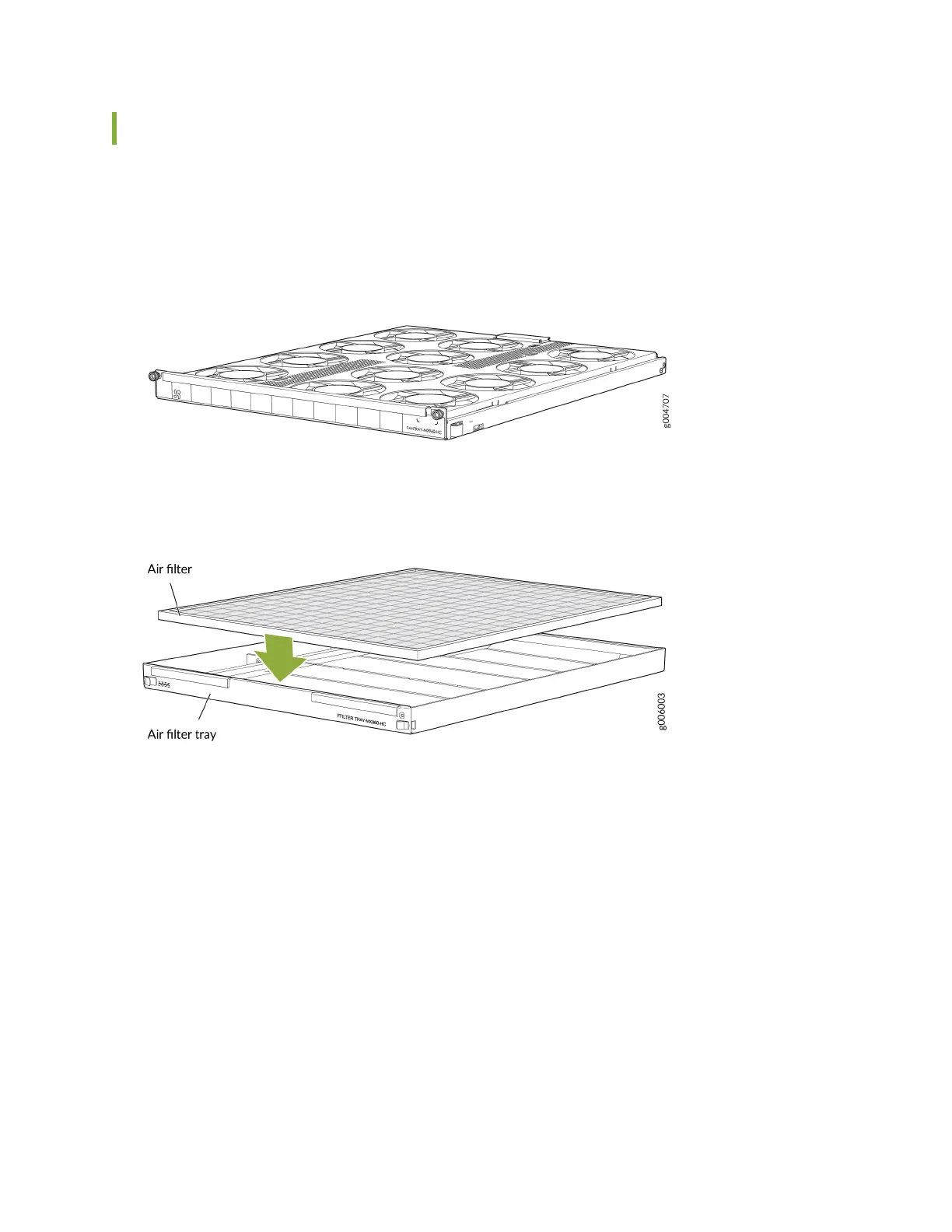

Figure 15: Fan Tray Used in an EX9214 Switch
Figure 16: Air Filter Used in an EX9214 Switch
One of the fan trays is installed horizontally above the line card slots on the front panel and the other is
installed horizontally above the air intake slot at the boom of the front panel. The air lter is installed
above the fan tray that is installed at the boîš‚om of the front panel.
41
