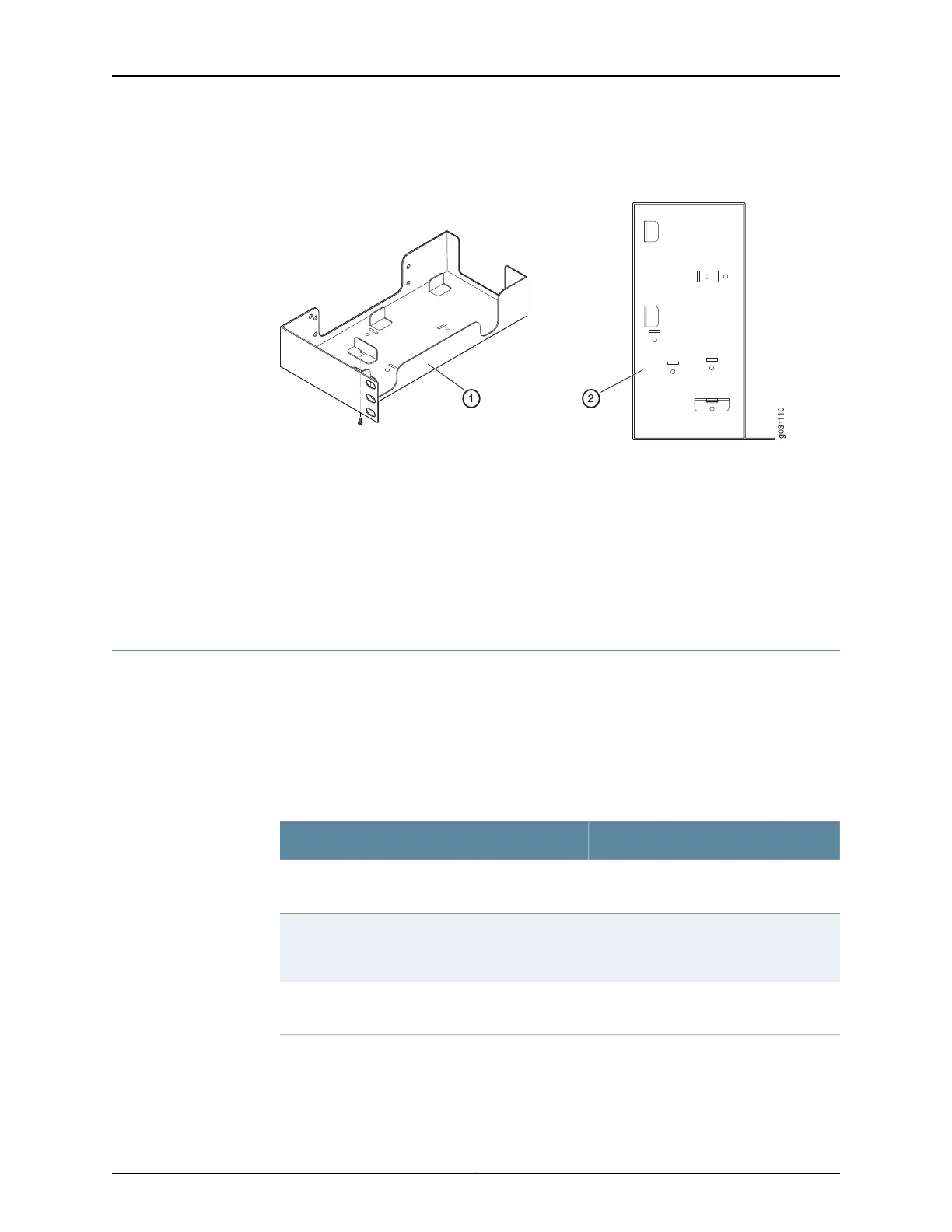

Figure 15: Adjusting the Power Supply Adapter Tray to Accommodate the
150-Watt Power Supply
1. Locations for the adapter stopper brackets in the power supply adapter tray
2. Fully configured power supply adapter tray
Related
Documentation
Preparing the SRX210 Services Gateway for Rack-Mount, Desk-Mount, and Wall-Mount
Installation on page 85
•
• Preparing the SRX210 Services Gateway for Rack-Mount Installation on page 85
Preparing the SRX210 Services Gateway for Desk-Mount Installation
You can mount an SRX210 Services Gateway on a desk or other level surface horizontally
or vertically. The four rubber feet attached to the chassis provide stability.
Table 32 on page 88 provides the list of tasks you need to perform before installing the
device.
Table 32: SRX210 Services Gateway Preinstallation Checklist for
Desk-Mount Installation
Additional InformationTask
“Site Preparation Checklist for the SRX210
Services Gateway” on page 37
Verify that the site meets the requirements.
“Clearance Requirements for Airflow and
Hardware Maintenance of the SRX210
Services Gateway” on page 41
Place the desk in its permanent location, allowing
adequate clearance for airflow and maintenance,
and secure it to the building structure.
“Unpacking the SRX210 Services Gateway”
on page 81
Remove the services gateway chassis from the
shipping carton.
Copyright © 2012, Juniper Networks, Inc.88
SRX210 Services Gateway Hardware
