Installing the 3G ExpressCard in the SRX210 Services Gateway ExpressCard Slot
TIP: Placing the SRX210 Services Gateway on a flat, level surface, with the
Juniper Networks logo facing up, will make it easier to align and insert the 3G
ExpressCard in the ExpressCard slot.
CAUTION: 3G ExpressCard is not hot-swappable on the SRX210 Services
Gateway.
To install the 3G ExpressCard in the ExpressCard slot on the SRX210 Services Gateway:
1. Align the 3G ExpressCard as follows:
•
Ensure that the 3G ExpressCard is parallel with the surface on which the SRX210
Services Gateway is placed.
•
Ensure that the center of the 3G ExpressCard is aligned with the center of the
ExpressCard slot on the SRX210 Services Gateway.
2. Study Figure 10 on page 32, which shows installation of the 3G ExpressCard on the
SRX210 Services Gateway.

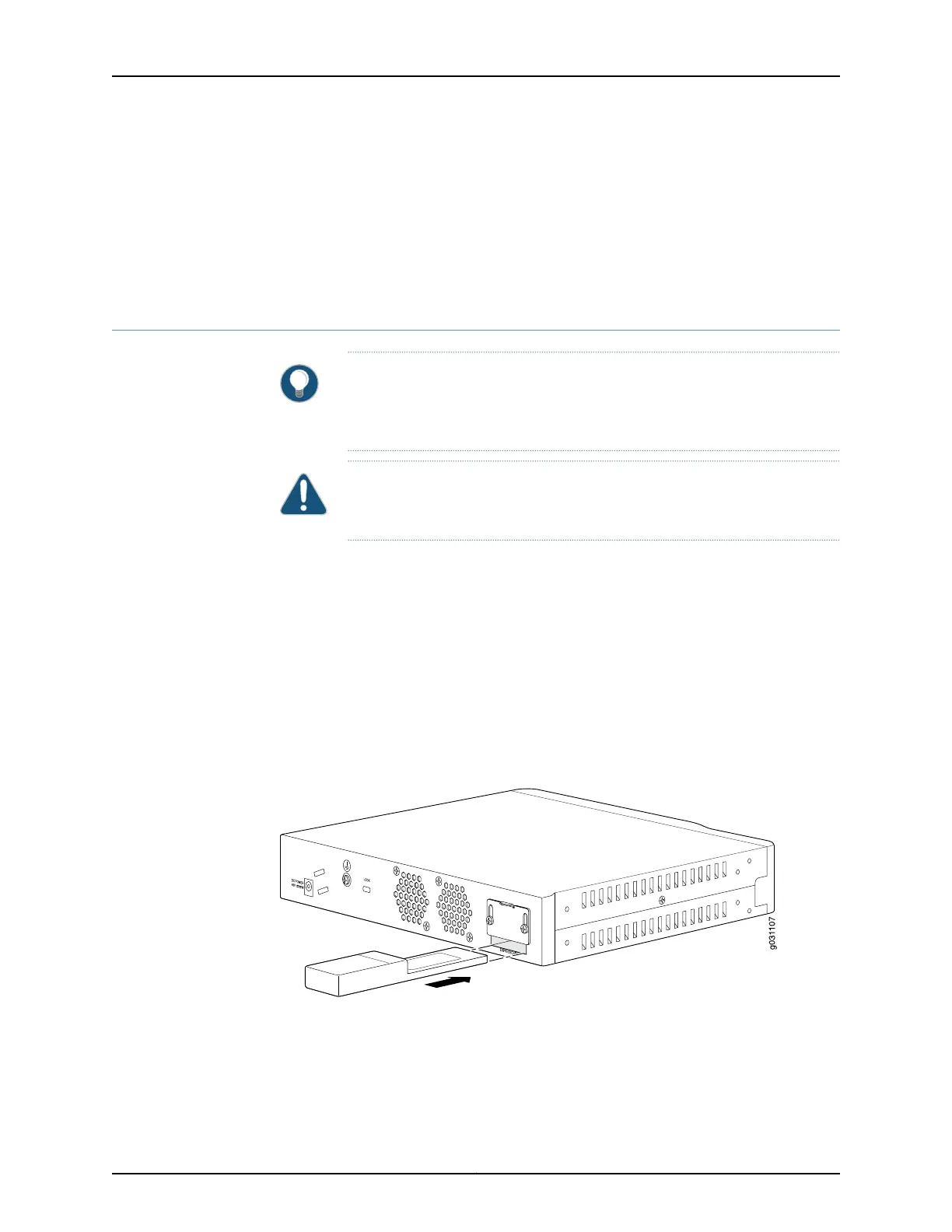

Figure 10: Installing the 3G ExpressCard in the SRX210 Services Gateway
3. Insert the 3G ExpressCard slowly and firmly into the ExpressCard slot until the 3G
ExpressCard is engaged in the slot as follows:
